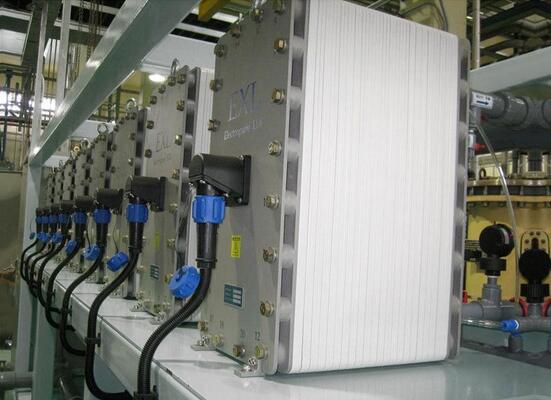

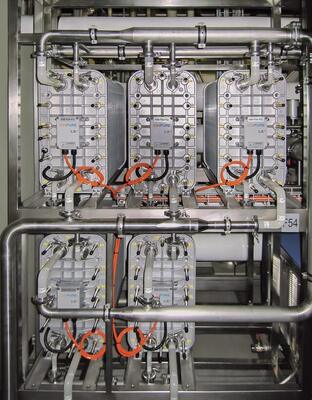

MK-3 Mini HT Pharmaceutical-Grade EDI Module – Compact Chemical-Free Water Purification Stack
Product Details:
| Place of Origin: | China |
| Brand Name: | VEOLIA |
| Certification: | ISO 14001， CE ，ISO 9001 |
| Model Number: | MK-3 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 200 Units per Month |
|
Detail Information |
|||
| Name: | Veolia EDI MK-3MiniHT | Voltage: | 0–400 VDC |
|---|---|---|---|
| MK-3 Stack Minimum Water Production (M3 /Hr): | 1.6 | Sodium: | ≤ 3 Ppb |
| Membrane Material:: | Hydrophilic PVDF (XP™) | Module Application: | Industrial High Purity Water Preparation |
| Flow Rate Range: | 0.5–1.6 M3 /h (2.2–7.0 Gpm) | Shipping Weight: | 57 Kg (126 Lbs) |
| Maximum Sanitization Temperature: | 85ºC (185ºF) | ||
| Highlight: | Pharmaceutical-Grade EDI Module,Compact Design Electrodeionization Module,Chemical-Free Regeneration Water Purification Stack |
||
Product Description
The MK-3 Mini HT Electrodeionization (EDI) Module is a compact high-performance purification unit designed for applications requiring reliable production of pharmaceutical-grade and ultrapure water.
Combining ion exchange technology with electrically driven regeneration, the module continuously removes dissolved ions without the need for conventional acid and alkali regeneration chemicals. Its compact structure and stable purification performance make it particularly suitable for small and medium-scale high-purity water systems.
The MK-3 Mini HT delivers a typical production capacity of 1.14 m³/h, providing consistent water quality that meets the requirements of demanding applications such as pharmaceutical purified water, water for injection (WFI) pretreatment, and laboratory water purification systems.
Designed for reliable operation and easy system integration, this EDI module provides an efficient solution where space efficiency, water purity, and operational stability are essential.
- Designed for high-purity water applications
- Suitable for pharmaceutical and laboratory water systems
- Supports purified water quality requirements for demanding industries
- Eliminates traditional acid and caustic regeneration processes
- Reduces chemical handling and operating costs
- Provides environmentally friendly continuous purification
- Small footprint for flexible installation
- Module dimensions: 30 × 61 × 29 cm
- Suitable for compact purification systems and equipment upgrades
- Produces high-quality purified water continuously
- Industrial water quality: ≥16 MΩ·cm resistivity
- Pharmaceutical water quality: ≥10 MΩ·cm resistivity
- Supports high-temperature sanitization cycles
- Maximum sanitization temperature: 85 °C
- Designed for applications requiring enhanced hygiene control
| Parameter | Specification |
|---|---|
| Product Model | MK-3 Mini HT |
| Technology | Electrodeionization (EDI) |
| Nominal Flow Rate | 1.14 m³/h |
| Flow Range | 0.5-1.6 m³/h |
| Recovery Rate | Up to 93% |
| Shipping Weight | Approx. 57 kg |
| Dimensions (W × H × D) | 30 × 61 × 29 cm |
| Operating Voltage | 0-150 VDC |
| Operating Current | 0-5.2 ADC |
| Maximum Inlet Pressure | ≤6.9 bar (100 psi) |
| Pressure Drop | 1.4-2.8 bar |
| Operating pH Range | 4-11 |
| Maximum Operating Temperature | 40°C |
| Parameter | Performance |
|---|---|
| Product Water Resistivity | ≥10 MΩ·cm (Pharmaceutical) / ≥16 MΩ·cm (Industrial) |
| Sodium Concentration | ≤3 ppb |
| Sodium Removal Efficiency | ≥99.9% |
| Silica Concentration | As low as 5 ppb |
| Silica Removal Efficiency | Up to 99% |
| Boron Concentration | ≤0.08 ppm |
| Parameter | Maximum Value |
|---|---|
| Total Exchangeable Anions | ≤68.2 ppm as CaCO₃ |
| Conductivity Equivalent | ≤117 μS/cm |
| Total Hardness | ≤1.0 ppm as CaCO₃ |
| Silica (SiO₂) | ≤1.0 ppm |
| Total Organic Carbon | ≤0.5 ppm |
| Total Chlorine | ≤0.05 ppm |
| Temperature Range | 4.4-40°C |
| pH Range | 4-11 |
| Color | ≤5 APHA |
The MK-3 Mini HT EDI Module is designed for high-purity water systems including:
- Pharmaceutical purified water production
- Water for injection (WFI) pretreatment
- Laboratory purified water systems
- Biotechnology water treatment
- Small-scale industrial ultrapure water production
- Electronics and precision manufacturing processes
The MK-3 Mini HT provides a reliable and efficient approach to pharmaceutical and laboratory purified water production. With compact dimensions, stable purity performance, and chemical-free operation, it is an ideal EDI solution for high-quality water applications requiring dependable long-term operation.
