E-Cell MK-9 EDI Stack for High Purity Water Production with 18.5-44.0 GPM Flow Range and No Chemical Regeneration in Stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | ISO 14001， CE ，ISO 9001 |
| Model Number: | MK-9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Model: | E-Cell MK-9 | Technology: | Continuous Electrodeionization (CEDI) |
|---|---|---|---|
| Flow Range: | 18.5-44.0 GPM Per Stack | Feed Water Type: | RO Permeate |
| Highlight: | 18.5-44.0 GPM Flow Range EDI Stack,No Chemical Regeneration CEDI Stack,Stainless Steel Construction Electrodeionization Stack |
||
Product Description

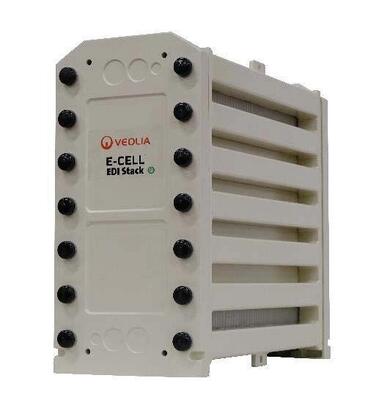

E-Cell MK-9 EDI Stack for High Purity Water Production
Continuous Electrodeionization (CEDI) Stack for Industrial High Purity Water Systems
The E-Cell MK-9 EDI Stack is an advanced continuous electrodeionization solution designed for the production of high purity water in industrial water treatment applications. By combining ion exchange resin technology, ion-selective membranes, and electrical regeneration, the MK-9 continuously removes dissolved ions from RO permeate without the requirement for chemical regeneration.
The E-Cell MK-9 provides stable and reliable performance for applications requiring high quality product water, including semiconductor, pharmaceutical, power generation, laboratory, and industrial process water systems. The MK-9 offers a wide operating flow range of 18.5-44.0 GPM per stack and is capable of producing high purity water with resistivity levels required for demanding industrial applications.
Key Features & Applications
High Purity Water Production
- Advanced Continuous Electrodeionization (CEDI) technology
- Continuous removal of dissolved ions from RO permeate
- Stable high purity water production without chemical regeneration
- Suitable for demanding industrial water applications
Flexible Operating Range
- Wide flow operating range of 18.5-44.0 GPM per stack
- Suitable for various industrial water treatment capacities
- Provides operational flexibility for system design and optimization
Reliable Industrial Performance
- Robust EDI stack structure
- Designed for continuous operation
- Reduced chemical consumption compared with conventional ion exchange systems
- Easy integration into RO + EDI water treatment systems
Wide Application Range
- Semiconductor and electronics manufacturing
- Pharmaceutical purified water systems
- Power generation make-up water
- Laboratory water systems
- Industrial process water purification
- High purity water production systems
Technical Specifications
| Item | Specification |
|---|---|
| Model | E-Cell MK-9 |
| Technology | Continuous Electrodeionization (CEDI) |
| Flow Range | 18.5-44.0 GPM per stack |
| Product Water Quality | High purity water production for industrial applications |
| Feed Water Type | RO permeate |
| Regeneration Method | Electrical regeneration (No chemical regeneration) |
| Application Type | Industrial high purity water production |
Working Principle
The E-Cell MK-9 operates using Continuous Electrodeionization (CEDI) technology. During operation, dissolved ions in the feed water are removed through the combined action of ion exchange resin, ion-selective membranes, and an electrical field.
The applied electric field continuously regenerates the ion exchange resin inside the stack, allowing continuous operation without the need for chemical regeneration. The process provides:
- Continuous ion removal
- Stable high purity water production
- Reduced chemical consumption
- Environmentally friendly operation
Frequently Asked Questions
What is the main application of E-Cell MK-9?
The E-Cell MK-9 is designed for industrial high purity water production after RO treatment, including semiconductor, pharmaceutical, power generation, laboratory, and industrial process applications.
What flow capacity does E-Cell MK-9 provide?
The E-Cell MK-9 provides a wide operating flow range of 18.5-44.0 GPM per stack, allowing flexible application across different industrial water treatment systems.
Does the E-Cell MK-9 require chemical regeneration?
No. The E-Cell MK-9 uses continuous electrical regeneration technology and does not require acid or caustic chemical regeneration.
What are the feed water requirements?
The MK-9 requires suitable RO permeate quality, including controlled conductivity, hardness, silica, CO₂, and TOC levels, to ensure stable CEDI operation.
What maintenance is required?
Routine maintenance mainly includes monitoring product water resistivity, flow rate, pressure drop, and operating current. The system does not require chemical regeneration or routine resin replacement.
After-Sales Support
Each E-Cell MK-9 EDI Stack is supplied with technical documentation and application guidance to support reliable system operation. We provide professional assistance including:
- Product selection support
- System integration guidance
- Installation recommendations
- Operation training
- Maintenance recommendations
With proven CEDI technology and flexible operating capability, the E-Cell MK-9 provides a reliable solution for customers requiring continuous high purity water production.
