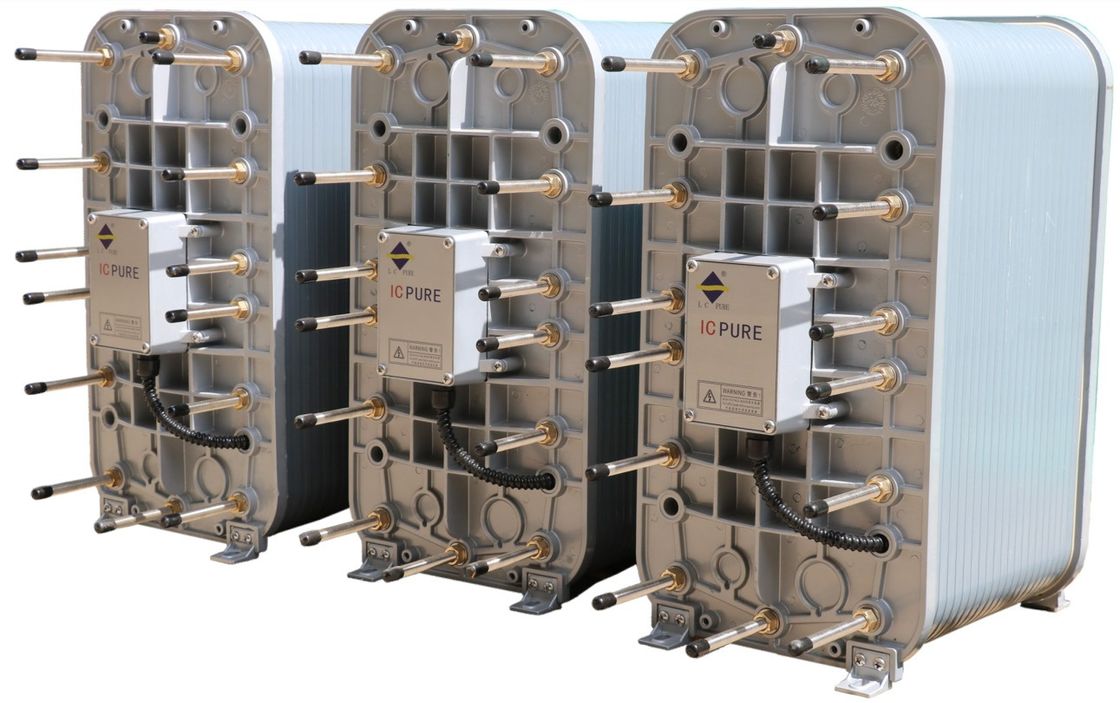

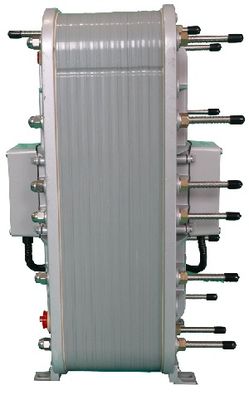

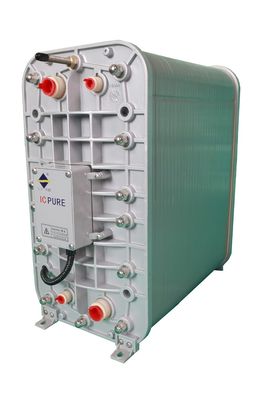

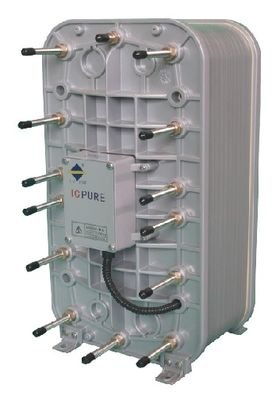

LCX Series Industrial EDI Module 500L/H-7000L/H Flow Range
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |
| Model Number: | LCX Series Industrial General EDI Modules |
| Document: | LCX-EDI (3) (1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Flow Range(l/h): | 500L/H-7000L/H | Operating Current(0-6A): | 15-18.25 |
|---|---|---|---|
| OperatingVoltage(VDC): | 0-200,340,550 | MaximumPower(KW/H): | 1.2 / 2 /3 |
| Height(mm): | 605 | Width(mm): | 315 |
| Origin: | China | ADVANTAGES OF EDI MODULE PROCESS: | The Output Water Quality Of EDI Is Stable, Without The Water Quality Changes Like Ordinary Mixed Beds. |
| Highlight: | 500L/H EDI Modules,7000L/H EDI Modules,General EDI Modules |
||
Product Description
| Attribute | Value |
|---|---|
| Flow Range (l/h) | 500L/H-7000L/H |
| Operating Current (0-6A) | 15-18.25 |
| Operating Voltage (VDC) | 0-200,340,550 |
| Maximum Power (KW/H) | 1.2 / 2 /3 |
| Height (mm) | 605 |
| Width (mm) | 315 |
| Origin | China |
The EDI module works by using mixed ion exchange resins to adsorb cations and anions in water. These adsorbed ions are then removed under the action of cation exchange membranes through direct current voltage. The system forms concentrated water chambers between cation and anion exchange membranes, with ion exchange resins positioned between the fresh and concentrated water chambers. As water flows through these chambers, the resins adsorb ions, while the electrodes provide a transverse DC electric field to drive the ions through the membranes, resulting in purified water in the fresh water chamber.
- Continuous production of ultrapure water without complex regeneration operations
- Compact installation with small footprint
- No need for acid/alkaline waste treatment systems
- Electrolyte concentrate can be directly reused
- Low operating costs compared to mixed bed systems
- Easy maintenance and expansion with modular design
- Stable output water quality without fluctuations
- Standardized design to meet various water demand requirements
| Model | LCX-05T | LCX-10T | LCX-20T | LCX-30T | LCX-38T | LCX-45T | LCX-50T | LCX-55T |
|---|---|---|---|---|---|---|---|---|
| Flow Range (m³/h) | 0.4-0.6 | 0.8-1.2 | 1.8-2.3 | 2.8-3.2 | 3.8-4.2 | 4.8-5.3 | 5.8-6.3 | 6.8-7.3 |
| Operating Current (0-6A) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Operating Voltage (VDC) | 0-200 | 0-200 | 0-340 | 0-340 | 0-550 | 0-550 | 0-550 | 0-550 |
| Maximum Power (KW/H) | 1.2 | 1.2 | 2 | 2 | 3 | 3 | 3 | 3 |
| Shipping Weight (KG) | 40 | 50 | 75 | 100 | 125 | 140 | 155 | 165 |
| Height (mm) | 605 | 605 | 605 | 605 | 605 | 605 | 605 | 605 |
| Width (mm) | 315 | 315 | 315 | 315 | 315 | 315 | 315 | 315 |
