500-5000L/H High Temperature Sterilization EDI Module LCX-H Series
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |
| Model Number: | High Temperature Sterilization Type |
| Document: | LCX-EDI (3) (1).pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Stack Standard Water Flow Rate (L/h): | 500L/H--5000L/H | Stack Operating Voltage (VDC): | 0-200V/340V/550V |
|---|---|---|---|
| Stack Working Current (0-6A): | 2.5 | Stack Maximum Power (KW/H): | 1.2 / 2 /3 |
| Overall Height (mm): | 605 | Overall Width (mm): | 315 |
| Origin: | China | Left And Right Positioning (mm): | 215 |
| Highlight: | 5000L/H EDI Modules,500L/H EDI Modules,High Temperature Sterilization EDI Modules |
||
Product Description
| Attribute | Value |
|---|---|
| Stack Standard water flow rate (L/h) | 500L/H--5000L/H |
| Stack Operating voltage (VDC) | 0-200V/340V/550V |
| Stack Working current (0-6A) | 2.5 |
| Stack Maximum power (KW/H) | 1.2 / 2 /3 |
| Overall height (mm) | 605 |
| Overall width (mm) | 315 |
| Origin | China |
| Left and right positioning (mm) | 215 |

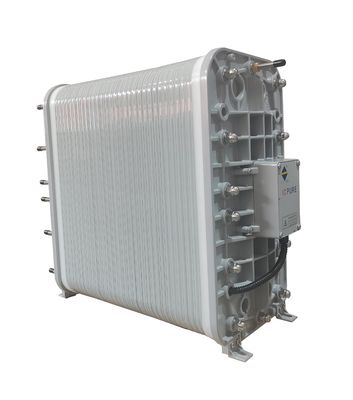

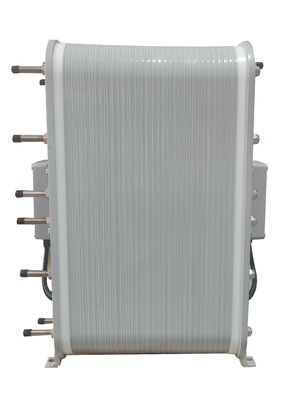

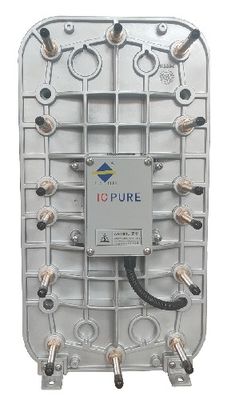

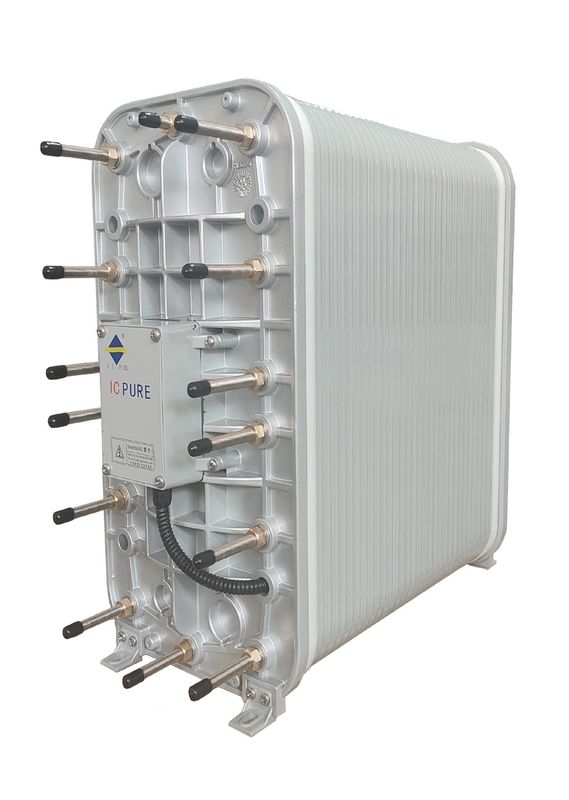

500L/H--5000L/H High Temperature Sterilization Type EDI Modules -LCX-H Series
Representing a major step forward in water treatment, EDI (Electrodeionization) integrates electrodialysis and ion exchange to achieve chemical-free desalination. Utilizing DC current and selective membranes, it continuously directs ions out of the product stream, yielding ultra-pure water (5-18 MΩ.cm) without acid or alkali regeneration. This key environmental benefit, combined with continuous, automated operation, has driven EDI to largely replace mixed-bed systems as the final purification stage. Its reliability makes it essential in demanding industries including electronics manufacturing, pharmaceuticals, power generation, and chemical processing.
- Continuous production of ultra-pure water, eliminating complex regeneration operations
- Simple installation requirements with minimal electrical needs
- Low water absorption rate
- Lower operating costs compared to mixed-bed systems
- Modular design for easy maintenance and expansion
- Stable output water quality without fluctuations
- Easy installation and maintenance with performance consistency
- Standardized design to meet various water volume requirements
| Model | LCX-05H | LCX-10H | LCX-20H | LCX-30H | LCX-38H | LCX-45H |
|---|---|---|---|---|---|---|
| Flow Range (m3/h) | 0.4-0.6 | 0.8-1.2 | 1.8-2.3 | 2.8-3.2 | 3.8-4.2 | 4.8-5.3 |
| Operating Current (0-6A) | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
| Operating Voltage (VDC) | 0-200 | 0-200 | 0-340 | 0-340 | 0-550 | 0-550 |
| Maximum Power (KW/H) | 1.2 | 1.2 | 2 | 2 | 3 | 3 |
| Shipping Weight (KG) | 40 | 50 | 75 | 100 | 125 | 140 |
| Height (mm) | 605 | 605 | 605 | 605 | 605 | 605 |
| Width (mm) | 315 | 315 | 315 | 315 | 315 | 315 |
Application cases: View our industry applications
FG Water Treatment Technology (www.fgwater.com), now an integral part of Wuxi Feniger Technology Co., Ltd., is a high-tech enterprise specializing in the design, manufacturing, trade, and transportation of water treatment equipment, serving major industrial sectors.
HAFE-FG Water Treatment Technology Co., Ltd. focuses on water treatment technology research, equipment development and manufacturing, testing, and international transportation. We collaborate with OEM manufacturers in China's high-tech development zones, committed to R&D, production, and quality control.
Our main products include various water purification and reverse osmosis (SWRO) systems, brackish water reverse osmosis (BWRO), ultrafiltration (UF) systems, electrodeionization/EDI equipment, media pressure filters, and ion exchange softeners. Currently, we have become a major water treatment equipment supplier for industries including food & beverage, pharmaceuticals, chemicals, power generation, municipal water supply, and industrial wastewater treatment, exporting to over 20 countries and regions across Asia, Europe, America, and Africa.
Our production system consists of specialized design and manufacturing partners across multiple industries nationwide. Some factories cover over 10,000 square meters, including 5,000 square meters of workshops and warehouses, and 1,500 square meters of office space. All our technicians have more than 10 years of water treatment experience, enabling us to provide comprehensive solutions for various water purification and wastewater treatment applications.
Since our establishment, we have always regarded quality as our corporate foundation. We only use the highest quality components to produce various water treatment systems. Our systems are easy to use and maintain, maintaining high reliability even under the most demanding conditions.
