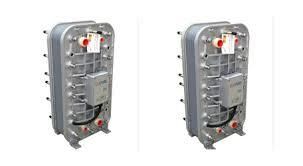

Ionpure CEDI LX-Z IP-LXM10Z-5 EDI Module for High Purity Water
Product Details:
Place of Origin: | China |
Brand Name: | IONPURE |
Certification: | CE |
Model Number: | LXM10Z-5 |
Document: | fgwater-ionpure-lxz-ds.pdf |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 pc |
---|---|
Price: | Negotiable |

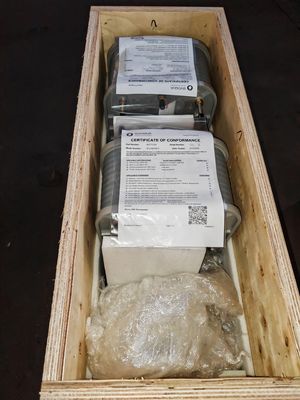

Packaging Details: | standard export packing |
Delivery Time: | 5- 8 work days |
Payment Terms: | ,T/T |
Supply Ability: | 60000 Units per Month |
Detail Information |
|||
CEDI Minimum Flow Rate M3/hr (gpm): | 0.57 (2.5) | CEDI Design Flow Rate M3/hr (gpm): | 1.1-1.65 (5.0-7.5) |
---|---|---|---|
CEDI Weight Kg (lbs): | 78 (171) | CEDI Operating Weight Kg (lbs): | 51 (113) |
CEDI Recovery: | 90–95% | DC Voltage: | 0-400V |
DC Amperage: | 1.0-6.0 | ||
Highlight: | IP-LXM10Z-5 CEDI LX-Z,High Purity Water CEDI LX-Z,Ionpure CEDI LX-Z IP-LXM10Z-5 |
Product Description
Attribute | Value |
---|---|
CEDI Minimum Flow Rate m3/hr (gpm) | 0.57 (2.5) |
CEDI Design Flow Rate m3/hr (gpm) | 1.1-1.65 (5.0-7.5) |
CEDI Weight kg (lbs) | 78 (171) |
CEDI Operating Weight kg (lbs) | 51 (113) |
CEDI Recovery | 90–95% |
DC Voltage | 0-400V |
DC Amperage | 1.0-6.0 |
The Ionpure CEDI LX-Z IP-LXM10Z-5 is an advanced electrodeionization module designed to reliably and continuously produce high-purity water. As part of the SUEZ Water Technologies & Solutions LX-Z Series, this specific model is designed to provide a steady flow rate of 10 gallons per minute (gpm).
Its core technology combines ion exchange resins, ion-selective membranes, and direct current to continuously remove ions and weakly ionized species from feed water, typically after reverse osmosis. The process achieves high-purity water without the use of hazardous chemical regenerants, significantly reducing operating costs and environmental impact compared to traditional mixed-bed deionization.
- Significant Cost Savings: Drastically reduces operating expenses versus conventional ion exchange systems.
- Chemical-Free Purity: Produces mixed-bed quality deionized water consistently without requiring acids, bases, or chemical regenerants.
- Continuous, Consistent Performance: Delivers stable, high-purity water output 24/7 through continuous operation, eliminating batch processing variability.
- Enhanced Reliability: Features a robust double O-ring seal design for leak-free performance and dependable long-term operation.
- Simplified Operation & Maintenance: Removes the need for hazardous chemical handling, neutralization systems, and frequent DI tank replacements.
- Optimized Design: User-friendly resin-filled concentrate chambers ensure peak efficiency and straightforward operation.
- Robust Feed Tolerance: Capable of processing feedwater containing total chlorine (Cl₂) levels up to 0.05 ppm.
- Flexible Flow Range: Offers broad operational flexibility, accommodating flow rates from 0.22 m³/h (1 gpm) to 7.67 m³/h (33.8 gpm) per module.
- Compliant Materials: All water-contacting components meet NSF®/ANSI 14 and 61 standards for material safety in plumbing and drinking water applications.

- Rigorous Manufacturing: Each LX-Z module undergoes strict factory testing to ensure industry-leading performance standards.
- Certified Systems: Manufactured under ISO 9001 (Quality Management) and ISO 14000 (Environmental Management) certified systems.
- CE Mark Compliance: Modules carry the CE mark, signifying conformity with European health, safety, and environmental protection standards.
- Indoor Installation Required: Modules must be installed indoors, protected from direct sunlight.
- Temperature Control: Ambient temperature must not exceed 113°F (45°C) for stable, efficient operation.
- Enhanced Performance & Longevity: Maintaining these conditions ensures reliable water quality, maximizes module lifespan, and prevents premature degradation.

Recovery | 90-95% |
DC Voltage | 0-400 |
DC Amperage | 1.0-6.0 |
Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
Silica (SiO2) Removal | 90-99%, depending on feed conditions |
Feed Water Conductivity Equivalent, including CO2 and Silica | < 40 μS/cm |
Feed Water Source | RO permeate |
Temperature | 5-45˚C (41-113˚F) |
Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
Maximum Total Chlorine (as Cl2) | < 0.05 ppm |
Iron (as Fe) | < 0.01 ppm |
Manganese (as Mn) | < 0.01 ppm |
Sulfide (S2-) | < 0.01 ppm |
pH | 4-11 |
Total Hardness (as CaCO3) | < 1.0 ppm |
Dissolved Organics (TOC as C) | < 0.5 ppm |
Silica (SiO2) | < 1.0 ppm |
