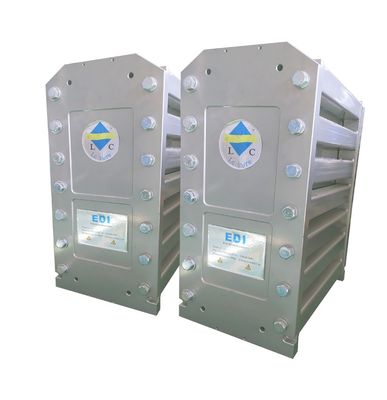

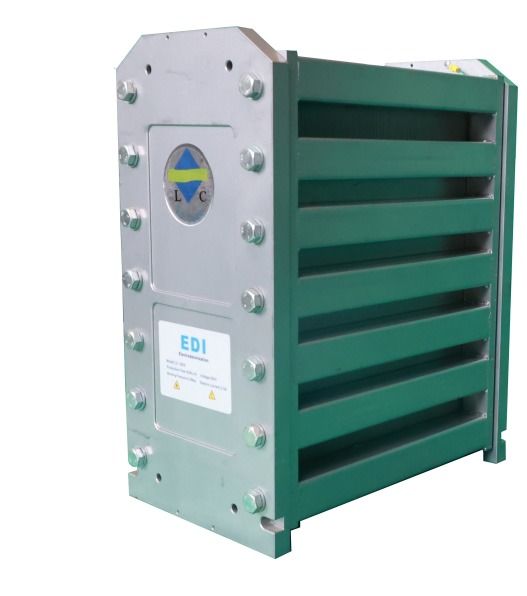

3000L/H 5000L/H Industrial EDI Membrane Module LCM Series

3000L/H,5000L/H Industrial EDI Membrane Module -LCM Series

1. Working principle of EDI module

EDI (Electrodeionization) is an innovative water treatment technology that combines

electrodialysis with ion exchange in a membrane separation desal process. It is a high-tech,

environmentally friendly technology. The EDI water purification equipment has advantages such as

continuous water output, no need for acid and alk regeneration, and unattended operation.

LC PURE EDI is a process that uses direct current to allow positively and negatively charged

ions in water to move in a directed manner under the of a DC electric field, and through the anion

and cation exchange membranes installed on both sides of the fresh water chamber. Cations

are attracted by the electrode and pass through the cation membrane to be discharged from

the concentrated water chamber, while anions are attracted by the positive electrode and pass

through the anion membrane to be discharged from the concentrated water chamber. This process

continuously produces ultra-pure water. This technology can continuously and stably produce

high-purity water and-pure water with a resistivity of 5-18 megohms (MΩ.cm).

EDI technology has gradually replaced mixed beds as a precision treatment equipment in pure

water preparation systems. EDI technology has good environmental protection characteristics,

is to operate and use, and is increasingly recognized by people. It is also widely used in various

industries such as medicine, electronics, semiconductors, photics, power, chemical industry,

and vehicle urea purification. Its emergence is a revolutionary advancement in water treatment

technology, achieving ultra-pure water treatment process without and alkali emissions.

2. Advantages of the EDI Module Process

EDI modules can continuously produce ultrapure water, eliminating the need for complex regeneration operations during production.

The use of a mixed bed reduces the need for many mixing and standby cycles.

Installation is simple, with low electro-deionization during installation.

It consumes minimal water for temporary and intermittent use, and requires a minimal neutralization system.

The water volume absorbed by the radiator is very small.

Operating costs are low. Compared to various mixed bed systems, the leakage analysis system offers a price advantage.

The design makes maintenance and expansion of the leakage analysis system easy. Maintenance and replacement are simple, and the installation location is convenient.

The EDI effluent water quality is stable, unlike the water quality variations seen in ordinary mixed beds.

Easy to install and maintain. Maintenance of EDI equipment can be achieved by redistributing the flow of the module to other membrane stacks without altering its performance.

Standardized design. Using a standard main unit, it can meet the needs of users with different water volumes.

3.EDI进水水质要求

4.LCM Series EDI Module Specifications

LCM Series EDI Module Specifications

Model	Flow Range (m³/h)	Electrode Water Flow (L/h)	Operating Current (0-6A)	Operating Voltage (VDC)	Max. Power (kW)	Standard Pressure Drop at Product Water Inlet/Outlet (MPa)	Pressure Drop at Concentrate Inlet/Outlet (MPa)
LCM-3T	2.8 – 3.2	80	2.5	0 – 340	2	0.2 – 0.4	0.1 – 0.25
LCM-5T	4.8 – 5.3	80	2.5	0 – 550	3	0.2 – 0.4	0.1 – 0.25

Model	Shipping Weight (kg)	Height (mm)	Width (mm)	Overall Length (A/mm)	Product Water Inlet/Outlet Connection	Concentrate Inlet/Outlet Connection	Electrode Water Outlet
LCM-3T	112	610	300	465	DN25 Internal Thread	DN20 Internal Thread	DN10 PP Quick Connector
LCM-5T	143	610	300	642	DN25 Internal Thread
