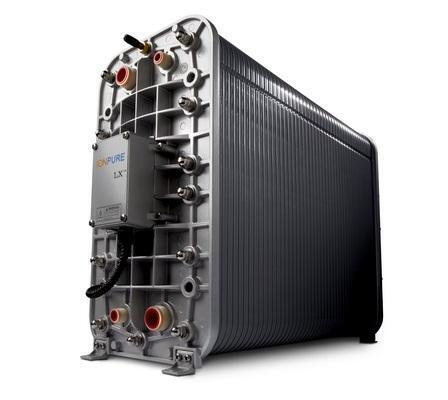

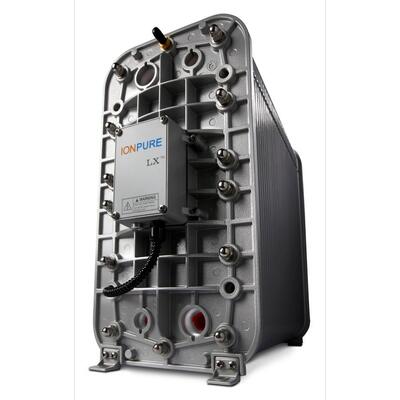

Ionpure LX-M45Z-5 CEDI Module with 22.5-33.8 GPM Flow Range and >15 MΩ·cm Resistivity for No Chemical Regeneration
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | ISO 14001， CE ，ISO 9001 |
| Model Number: | Ionpure LX-M45Z-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 200 set per month |
|
Detail Information |
|||
| Weight: | 9.7 Kg/10kg | Dimension: | 550 × 400 × 900 Mm~~880 × 510 × 1330 Mm |
|---|---|---|---|
| Disinfection Water Flow: | 0.5-1 T/H~~~~4-6 T/H | Ozone Concentration: | 15-25 Mg/L |
| Cooling Method: | Air Cooling/Water Cooling | Rated Power: | 550 W~~1250 W |
| Gas Source: | Air Source | Model: | QJ-03H001~~QJ-03H005 |
| Consumption: | 100W/140W | Ozone Output: | 5 G/h~~30 G/h |
| Dosing Pump: | 220V | Technology: | Ion Exchange |
| Function: | Purify The Water, Improve Water Quality | Auto Degree: | Full Automatic |
| Method: | Chemical Treatment | Explosion Proof: | Optional |
| Processing Types: | Drinking Water|Mineral Water|Pure Water | Type: | Industrial/Commercial |
| Highlight: | 22.5-33.8 GPM Flow Range CEDI Module,>15 MΩ·cm Resistivity Continuous Electrodeionization Module,No Chemical Regeneration Industrial Water Treatment Module |
||
Product Description
The Ionpure LX-M45Z-5 CEDI Module is an advanced continuous electrodeionization solution designed for industrial high purity water production. Combining ion exchange resin technology, ion-selective membranes, and electrical regeneration, this module continuously removes dissolved ions from RO permeate without chemical regeneration.
Ideal for semiconductor, pharmaceutical, power generation, laboratory, and industrial process water systems, the LX-M45Z-5 offers a design flow range of 22.5-33.8 GPM and achieves product water resistivity exceeding 15 MΩ·cm.
- Advanced Continuous Electrodeionization (CEDI) technology
- Produces high resistivity water without chemical regeneration
- Stable ion removal from RO permeate
- Proven Ionpure LX-Z series technology
- Compact design for easy system integration
- Reduced chemical consumption compared to conventional systems
- No acid or caustic chemical regeneration required
- Low chemical handling requirements
- Consistent water quality performance
- Suitable for automated water treatment systems
- Semiconductor and electronics manufacturing
- Pharmaceutical and biotechnology water systems
- Power plant make-up water
- Laboratory and analytical water systems
- Industrial process water treatment
- High purity RO-EDI water systems
| Model | Ionpure LX-M45Z-5 |
|---|---|
| Technology | Continuous Electrodeionization (CEDI) |
| Flow Range | 22.5-33.8 GPM |
| Product Water Resistivity | >15 MΩ·cm (typical) |
| Feed Water Type | RO permeate |
| Silica Removal | 90-99% depending on feed water conditions |
| Regeneration Method | Electrical regeneration (No chemical regeneration) |
| Application Type | Industrial high purity water production |
The Ionpure LX-M45Z-5 utilizes Continuous Electrodeionization (CEDI) technology where dissolved ions in feed water are transported through ion exchange membranes under an electric field. Ion exchange resins enhance ion migration and removal efficiency.
Unlike conventional ion exchange systems, CEDI continuously regenerates the ion exchange media using electrical energy, eliminating the need for acid and caustic chemical regeneration. This provides continuous ion removal, stable high purity water production, reduced chemical consumption, and environmentally friendly operation.
The LX-M45Z-5 is primarily used for industrial high purity water production after RO treatment, including semiconductor, pharmaceutical, power generation, and industrial process applications.
The LX-M45Z-5 provides a design flow range of 22.5-33.8 GPM, making it suitable for applications requiring approximately 25 GPM operating flow per module.
No. The CEDI module uses electrical regeneration technology and does not require acid or caustic chemical regeneration.
The LX-M45Z-5 requires suitable RO permeate quality, including controlled conductivity, hardness, silica, CO₂, and TOC levels, as required for standard CEDI operation.
Routine maintenance mainly includes monitoring product water resistivity, flow rate, pressure drop, and operating current. No chemical regeneration or routine resin replacement is required.
Each Ionpure LX-M45Z-5 CEDI Module includes technical documentation and application support for reliable system integration. We provide professional assistance including:
- Product selection guidance
- System design support
- Installation recommendations
- Operation guidance
- Maintenance support
With proven CEDI technology and reliable industrial performance, the Ionpure LX-M45Z-5 provides an efficient solution for customers requiring stable high purity water production.
