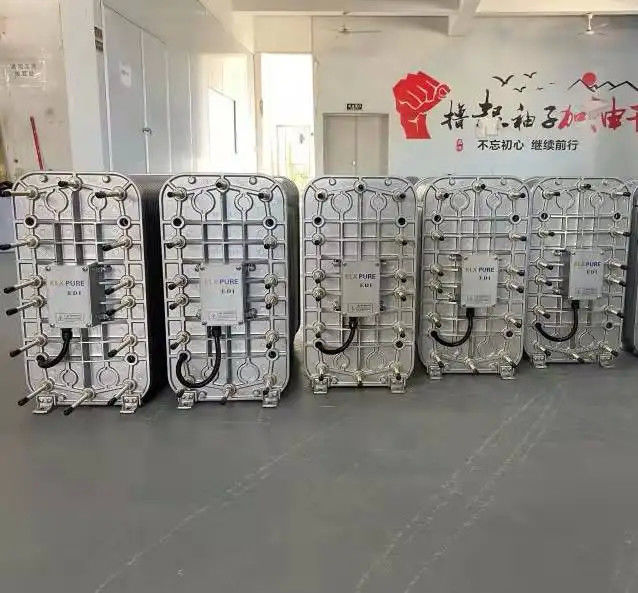

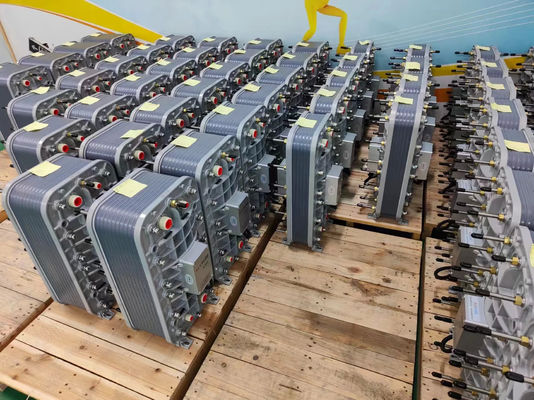

KXA-600 EDI Module 5-6.5 M3/H Zero Chemical Process for Electronics
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |
| Model Number: | KXA-600 |
| Document: | KXA Series Parameter Table.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Water Production Flow(m³/h) Of This Stack: | 5-6.5 | Standard Water Production Flow(m³/h) Of This Stack: | 6 |
|---|---|---|---|
| EDI Module Resistivity Of Produced Water (MO·cm): | 15-18.25 | The Module Stack Silicon And Boron Removal Rate (%): | 90-95 |
| This Module Advantages: | Optimize Costs, Zero-Chemical Process | Main Application: | Electronics/Semiconductors |
| Origin: | China | ||
| Highlight: | Zero-Chemical Process EDI Modules,5-6.5 M3/H EDI Modules,KXA Series EDI Modules |
||
Product Description
| Attribute | Value |
|---|---|
| Water production flow(m³/h) of this stack | 5-6.5 |
| Standard water production flow(m³/h) of this stack | 6 |
| EDI Module Resistivity of produced water (MO·cm) | 15-18.25 |
| The Module Stack Silicon and boron removal rate (%) | 90-95 |
| This Module Advantages | optimize costs, Zero-Chemical Process |
| Main Application | Electronics/Semiconductors |
| Origin | China |
Cost-effective choice EDI Modules KXA Series KXA-600 5-6.5 M3/H For Electronics/Semiconductors
EDI is a revolutionary ultra-pure water technology developed in the 1990s, representing a significant advancement in pure water production. EDI replaces traditional ion exchange technology to produce stable deionized water without chemical regeneration or downtime for resin addition. This enables continuous water production with stable quality while minimizing equipment investment and operating costs.
Chinese-made EDI membrane stacks combine precision engineering, materials science, and sustainable innovation - proven in demanding global industries:
Chinese stacks like KXA-series achieve stabilized 18.2 MΩ*cm output by solving core technical challenges:
- Ionic "Dead Zones" Defeated: Patented Full-Chamber Resin Injection™ fills all fluid pathways, boosting ion transfer efficiency by 90%
- Membrane Breakthroughs: Nano-ceramic reinforced ion-exchange membranes tolerate 10x higher TDS shocks
- Corrosion Immunity: Ruthenium-iridium alloy electrodes withstand 0.1 ppm chlorine residuals
- Concentrate Minimization: Intelligent polarity reversal enables <5% wastewater vs. 10-15% in conventional systems
- Carbon-Neutral Manufacturing: 78% of production powered by renewables
- Circular Design: 95% material recovery rate (resins, titanium, polymers)
- Operates at 45°C ambient temperature with zero purity decay
- 28+ months operation without cleaning or membrane changes
- Maintains <1 ppb silica at -25°C inlet temperatures
- Full filling technology of the middle partition for superior water quality
- No salt addition or concentrate water circulation required
- Excellent electrical performance with high current efficiency
- Low voltage operation with minimal energy consumption
- Parallel pipeline design with standard threaded interfaces
- Leak-proof structural design
- Purified water production
- Feed to WFI (Water For Injection) stills
- Steam generation / boiler feed during power generation
- Microelectronics/semiconductor production
- High quality makeup demineralized water
- Biomedical and laboratory use
- Pharmaceutical compounds pretreatment
- Surface finishing
- Chemical manufacturing
- Food and beverage industry
| Product name | KXA Series | |||||||
|---|---|---|---|---|---|---|---|---|
| Feature | The middle partition is fully filled with technology, and the water quality is good. | |||||||
| Brand | China brand | |||||||
| Usage | Water Filter | |||||||
| Model | KXA-50 | KXA-100 | KXA-200 | KXA-300 | KXA-400 | KXA-500 | KXA-600 | KXA-700 |
| Water flow range(m³/h) | 0.3-0.7 | 0.5-1.4 | 1.5-2.5 | 2.5-3.5 | 3-4.5 | 4.5-5 | 5-6.5 | 5.5-7.5 |
| Standard water flow rate(m³/h) | 0.5 | 1.0 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 7.0 |
| Resistivity of produced water (MO*cm) | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 | 15-18.25 |
| Silicon and boron removal rate (%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
| Recovery rate% | 90-95 | 90-95 | 90-95 | 90-95 | 90-95 | 90-95 | 90-95 | 90-95 |
