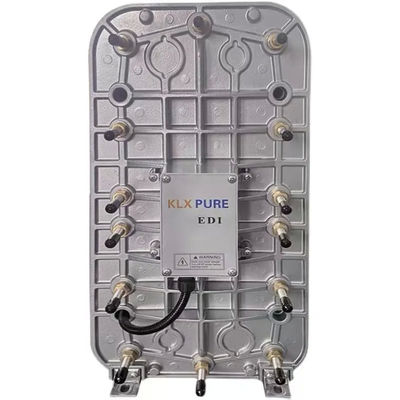

KXA-100 EDI Module 0.5-1.4 m³/h Ultra Pure Water System
Product Details:
| Place of Origin: | China |
| Brand Name: | China brand |
| Certification: | CE |
| Model Number: | KXA-100 |
| Document: | KXA Series Parameter Table.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Water Production Flow(m³/h): | 0.5-1.4 | Product Standard Water Production Flow(m³/h): | 1 |
|---|---|---|---|
| Product Resistivity Of Produced Water (MO·cm): | 15-18.25 | Stack Silicon And Boron Removal Rate (%): | ≥99 |
| Advantages: | Low Operating Costs,High Cost-effective | Application: | Ultra Pure Water |
| Origin: | China | ||
| Highlight: | High effective EDI Modules,1.4 M3/H EDI Modules,0.5 M3/H EDI Modules |
||
Product Description
High Cost Effective Chinese Brand KXA Series KXA-100 0.5-1.4 M3/H EDI Modules
Product Attributes
| Attribute | Value |
|---|---|
| Water production flow(m³/h) | 0.5-1.4 |
| Standard water production flow(m³/h) | 1 |
| Resistivity of produced water (MO·cm) | 15-18.25 |
| Silicon and boron removal rate (%) | ≥99 |
| Advantages | Low Operating Costs, High cost-effective |
| Application | Ultra pure water |
| Origin | China |
Product Description
The Electrodeionization (EDI) Membrane Stack is an advanced water purification technology that combines ion exchange resins, ion-selective membranes, and direct current (DC) electricity to remove ionized contaminants from water continuously and without chemical regeneration.
Core Technology & Working Principle
- Modular Stack Design: Comprises multiple cell pairs sandwiched between electrodes with cation-exchange membranes (CEM) and anion-exchange membranes (AEM)
- Ion Removal & Transport: Feed water flows through dilute compartments where ions are attracted towards oppositely charged electrodes under DC electric field
- Concentration & Rejection: Ions migrating into concentrate compartments are continuously flushed away by separate reject stream
Key Advantages
- Chemical-free operation eliminates hazardous acid and caustic chemicals
- Continuous process produces high-purity water 24/7 without downtime
- Low operating costs with minimal waste stream
- Consistent water quality with resistivity >15-18.2 MΩ*cm
- Compact, scalable modular design for easy capacity expansion
Primary Applications
- Power generation for high-pressure boilers
- Microelectronics and semiconductor production
- Pharmaceuticals & biotechnology for Water for Injection (WFI)
- Chemical processing and laboratory applications
Product Features
- Full filling technology of middle partition ensures excellent water quality
- No salt addition or concentrate water circulation required
- Excellent electrical performance with high current efficiency
- Standard threaded interfaces for easy installation
- Perfect structural design ensures zero leakage
Specifications
| Model | Water flow range(m³/h) | Standard water flow rate(m³/h) | Resistivity (MO*cm) | Silicon removal rate (%) | Recovery rate (%) |
|---|---|---|---|---|---|
| KXA-50 | 0.3-0.7 | 0.5 | 15-18.25 | ≥99 | 90-95 |
| KXA-100 | 0.5-1.4 | 1.0 | 15-18.25 | ≥99 | 90-95 |
| KXA-200 | 1.5-2.5 | 2.0 | 15-18.25 | ≥99 | 90-95 |
| KXA-300 | 2.5-3.5 | 3.0 | 15-18.25 | ≥99 | 90-95 |
| KXA-400 | 3-4.5 | 4.0 | 15-18.25 | ≥99 | 90-95 |
For application cases, please visit: www.fgwater.com/Industries/
About FG Water Technologies
FG Water Technologies (www.fgwater.com) is a high-tech entity specializing in water treatment equipment design, manufacturing, and international shipment. Our main products include reverse osmosis systems, ultrafiltration systems, EDI equipment, and ion exchange softeners, serving industries worldwide.
