Ionpure LX-Z CEDI Module IP-LXM04Z-5 for Industrial Water Purification
Product Details:
| Place of Origin: | China |
| Brand Name: | IONPURE |
| Certification: | CE |
| Model Number: | LXM04Z-5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Minimum Flow Rate M3/hr (gpm): | 0.22 (1.0) | Design Flow Rate M3/hr (gpm): | 0.44-0.67 (2.0-3.0) |
|---|---|---|---|
| Shipping Weight Kg (lbs)**: | 59 (130) | Operating Weight Kg (lbs): | 31 (69) |
| Recovery: | 90–95% | Advantages: | Wide Range Of Flow,Low Operating Costs |
| DC Voltage: | 0–400 | DC Amperage: | 1.0–6.0 |
| Highlight: | Wide Range Ionpure CEDI LX-Z,IP-LXM04Z-5 Ionpure CEDI LX-Z |
||
Product Description

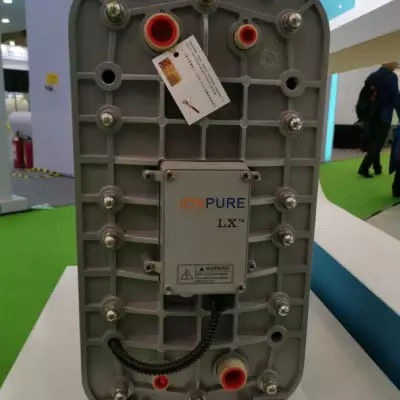

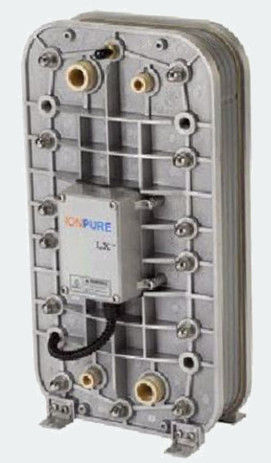

Ionpure LX-Z Industrial CEDI Module
The Ionpure® LX-Z modules with improved chlorine tolerance are specifically designed for a wide range of industrial deionized water applications, including boiler makeup water for power plants, hydrocarbon/chemical processing (HPI/CPI), and other high purity needs. These CEDI modules provide continuous high purity water without downtime or chemical regeneration required by conventional methods.
Key Specifications
| Minimum Flow Rate | 0.22 m³/hr (1.0 gpm) |
| Design Flow Rate | 0.44-0.67 m³/hr (2.0-3.0 gpm) |
| Shipping Weight | 59 kg (130 lbs) |
| Operating Weight | 31 kg (69 lbs) |
| Recovery | 90–95% |
| DC Voltage | 0–400 |
| DC Amperage | 1.0–6.0 |
LX-Z Series Features
- Wide flow range from 0.22 m³/h (1 gpm) to 10m³/h (44 gpm) per module
- Significantly lower operating costs than conventional ion exchange
- Generates mixed-bed quality deionized water without chemicals
- Continuous production with consistent quality
- Double O-ring seal guarantees leak-free operation
- No need for acid/caustic, neutralization system or exchangeable DI tanks
- Resin filled concentrate for optimal performance
- Wetted materials comply with NSF® 14 and NSF® 61 requirements
Quality Assurance Standards
CE mark certified. Each module undergoes strict testing before shipment to meet industry standards, manufactured under ISO 9001 and ISO 14000 quality and environmental management systems.
Operating Environment
Install indoors away from direct sunlight. Ambient temperature should not exceed 113°F (45°C) for stable, efficient operation and extended service life.
Performance Specifications
| Parameter | Value |
|---|---|
| Recovery | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
| Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal | 90-99%, depending on feed conditions |
*Performance data based on testing at maximum inlet water conductivity equivalent value (40 μS/cm)
Feed Water Specifications
| Feed Water Conductivity | < 40 μS/cm |
| Temperature | 5-45˚C (41-113˚F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Maximum Total Chlorine | < 0.05 ppm |
| pH | 4-11 |
E-Cell EDI Technology Applications
Successfully applied in power, petroleum, chemical, steel, pharmaceutical, and electronics industries.
