Hollow Fiber Ultrafiltration Water Treatment Plant 80TPD
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/UL/NSF etc. |
| Model Number: | UF-1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Ultrafiltration | Design: | Skid Mount |
|---|---|---|---|
| Permeate Flow/TPD: | 38~1500/skid | Permeate Flow/GPD: | 10,000~403,000 |
| Recovery Rate: | 90~98% | Feed TDS/ppm: | <35,000 |
| Water Temp.: | 5~35˚C | PH: | 2~11 |
| TSS/mg/L: | <100 | Tubidity: | <300 |
| Free Chlorine Mg/L: | 0 | Dissolved Iron Mg/L: | <0.1 |
| Warranty: | 1 Year | Skid Material: | SS304/SS316L,carbon Steel |
| Voltage: | 380V,415V,220V,can Be Customized | Application: | Water Purification,Filtration,pharmceutical,drinking Water,food |
| Size: | Depends,1750*550*1650mm | Function: | Water Purifying, RO Pre-treatment |
| Desalination Rate: | 99%,99.7% | Control: | Electronic,Manual/PLC |
| UF Membrane: | Hydranautics Or DOW / China Make | Pump: | CNP / Grundfos,CNP |
| High Light: | 80TPD ultrafiltration water treatment plant,Skid 80TPD ultrafiltration water treatment plant,80TPD UF filtration system |
||
Product Description

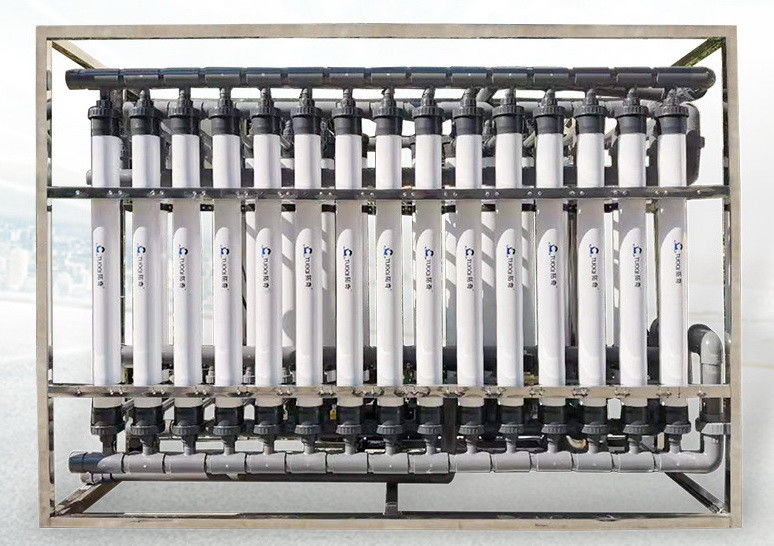

Hollow Fiber Ultrafiltration Water Treatment Plant 80TPD
Skid ultrafiltration(UF) hollow fiber purification system 20TPD~80TPD
Ultrafiltration (UF) plants are designed to treat ground water, surface water, tertiary treated effluent, storm water or wastewater with turbidity <300 NTU. The standard treatment process includes pre-screening (bag filter or self-cleaning screen filter), outside-to-inside capillary ultrafiltration modules, automated air scouring and maintenance cleaning (MC) system, as well as a CIP system for periodic recovery cleaning (RC). The UF system can be configured as either: dead-end for lower turbidity applications, or cross-flow for higher turbidity applications.
STANDARD SPECIFICATIONS UF-B
|
Parameter |
Units |
UF-B-20 |
UF-B-40 |
UF-B-60 |
UF-B-80 |
|---|---|---|---|---|---|
| Filtrate Flow Rate(varies according to feed water quality) | m3/day | 20 | 40 | 60 | 80 |
| Filtrate Recovery Rate | % | 90 – 98% (varies according to feed water quality) | |||
| Membrane Type | - | Outside in, dead end | |||
| Filtrate Turbidity | NTU | <0.1 (typical) | |||
| Raw Water Turbidity (max) | NTU | <50 | |||
| Raw Water TSS (max) | mg/L | <100 | |||
| Feed pH range | pH | 6 – 9 (exposure to chlorine or chloramines is not recommended in feeds below pH 6.5) | |||
| Allowable pH range for chemical cleaning (by others) | pH | 2 - 10 | |||
| Raw Water Temperature | °C | 15 ~ 35 | |||
| Ambient Design Temperature | °C | 5 ~ 45 (-15 ~ 50 for insulated containerized system) | |||
| Feed-Pre Screen Requirements | micron | 500 or finer (unscreened or coarsely screened raw water may reduce membrane operating life) |
|||
| Feed Water Inlet Pressure (min) | kPa | 100 kPa | |||
| Feed Water Inlet Pressure (Max) | kPa | 200 kPa (recommend <150) | |||
| Filtrate Discharge Pressure Drop | kPa | ~30 | |||
| Backwash Discharge Pressure Drop | kPa | ~20 | |||
| Power Supply | - | AC 110/240 V, 1 Phase, 50/60 Hz | |||
| Power Consumption | kW | 0.5 | 0.5 | 0.5 | 0.5 |
| No. Containers (Optional) | - | 1 x 10’ | 1 x 10’ | 1 x 10’ | 1 x 10’ |
Ultrafiltration (UF) Systems Advantages
Ultrafiltration (UF) membranes systems are more reliable than a conventional multi-media filter, which removed approximately 10 micron or larger of matter, where an ultrafiltration membrane pore size ranges from 0.01 to 0.10 micron. In addition to superior turbidity removal, UF membranes efficiently remove bacteria and most viruses.
- Superior filtration performance with high flux
- Very small nominal pore diameter (0.03 µm)
- Efficiently removes bacteria and viruses
- Occasionally back washed and air scoured to boost performance and removing the fouling layer to extend operating life
- Low fouling membrane modules
- UF Outside-In or Inside-Out Configuration permits reduced plugging and higher solids loading
- Basic, vertical, modular design permits low cost, compact systems
- Effective membrane cleaning has a high chemical resistance and temperature tolerance
