Industrial Hollow Fibre 320TPD UF System Water Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/UL/NSF etc. |
| Model Number: | UF-6 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Ultrafiltration | Design: | Skid Mount |
|---|---|---|---|
| Permeate Flow/TPD: | 5~100/skid | Recovery Rate: | 90~98% |
| Feed TDS/ppm: | <35,000 | Water Temp.: | 5~35˚C |
| PH: | 2~11 | TSS/mg/L: | <100 |
| Tubidity: | <300 | Free Chlorine Mg/L: | 0 |
| Dissolved Iron Mg/L: | <0.1 | Warranty: | 1 Year |
| Skid Material: | SS304/SS316L,carbon Steel | Voltage: | 380V,415V,220V,can Be Customized |
| Application: | Water Purification,Filtration,pharmceutical,drinking Water,food | Size: | Depends,1750*550*1650mm |
| Function: | Water Purifying, RO Pre-treatment | Desalination Rate: | 99%,99.7% |
| Control: | Electronic,Manual/PLC | UF Membrane: | Hydranautics Or DOW / China Make |
| Pump: | CNP / Grundfos,CNP | ||
| High Light: | 320TPD UF System Water Treatment,SS304 UF System Water Treatment,320TPD ultrafiltration systems water treatment |
||
Product Description

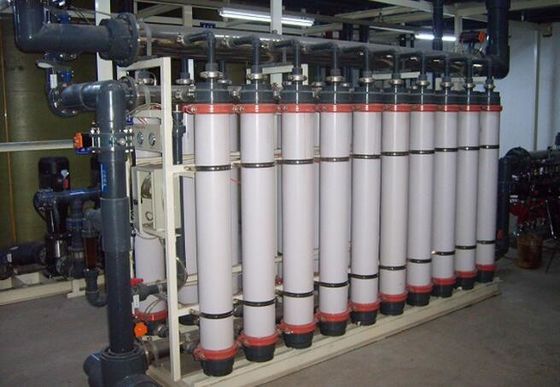

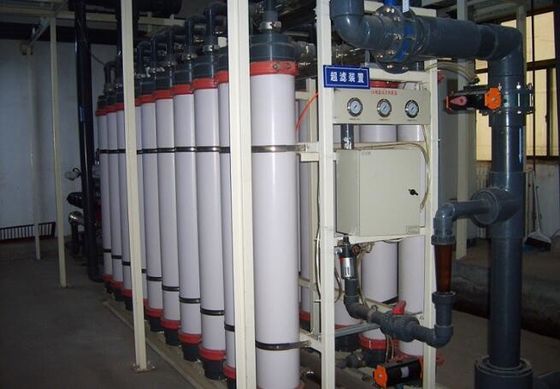

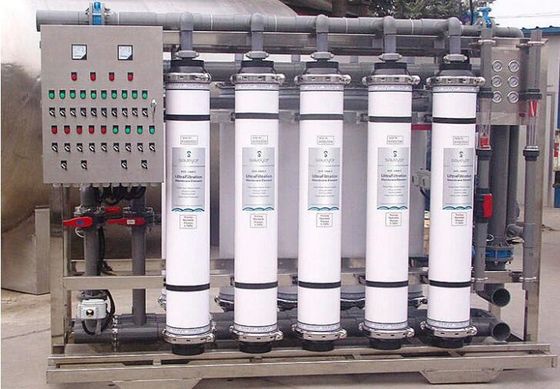

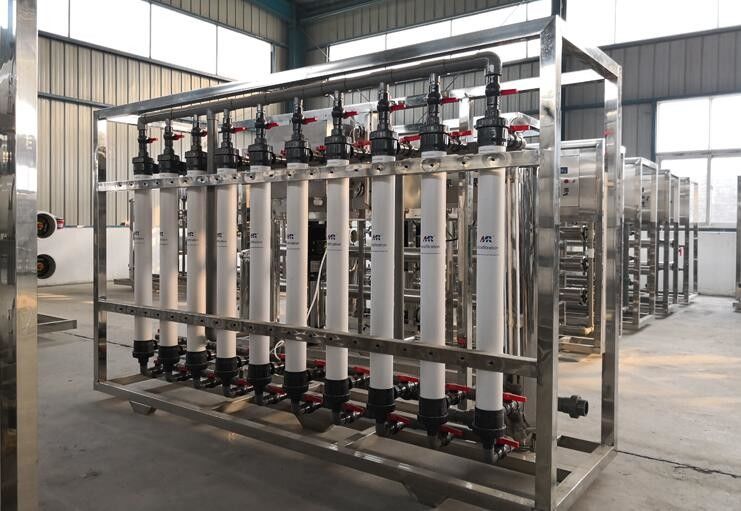

Industrial Hollow Fibre 320TPD UF System Water Treatment
Industrial hollow fibre membrane ultrafiltration(UF) water treeatment outside-in system 40TPD~320TPD skid mount
Ultrafiltration systems are designed to reliably remove suspended solids, turbidity, bacteria, pathogens and viruses from water. These systems are made to be economical, compact, and capable of allowing decreased plugging, and greater solids loading. The UF membranes ensure maximum filtration performance with high flux, including the system's resistance to chemicals and high tolerance to changing temperatures.
Industrial Ultrafiltration UF Systems
| Model No. | Capacity - Surface Water | Capacity - Seawater | Capacity - Ground Water | ||||
| Flux at 25 GFD | Flux at 35 GFD | Flux at 53 GFD | Qty of | ||||
| GPD | M3/ Day | GPD | M3/ Day | GPD | M3/ Day | UF Modules | |
| UF-40-1 | 10,526 | 40 | 15,840 | 60 | 25,920 | 98 | 1 |
| UF-80-2 | 21,053 | 80 | 30,956 | 117 | 50,655 | 192 | 2 |
| UF-160-4 | 42,105 | 160 | 63,541 | 241 | 103,976 | 394 | 4 |
| UF-240-6 | 63,158 | 240 | 94,497 | 358 | 154,631 | 586 | 6 |
| UF-320-8 | 84,211 | 320 | 127,082 | 481 | 207,952 | 788 | 8 |
How Ultrafiltration (UF) Systems Work?
Ultrafiltration (UF) systems have diverse membrane filtrations where hydrostatic pressure pushes solvents against a very fine membrane. They block suspended particulates and solids that are large while water and solutes with a lower molecular weight are allowed to flow through the membrane.
Industry and research employ this separation process for purifying and concentrating macromolecular (103 - 106 Da) solutions, which are usually protein solutions. Ultrafiltration is similar to microfiltration, nanofiltration or gas separation, except it differs in the molecule sizes it blocks.
To meet critical discharge criteria, ultrafiltration systems remove the need for clarifiers and multimedia water filtration. Effective ultrafiltration systems use membranes that can be immersed, back-flushable, and air scoured. Spiral wound UF/MF membranes offer excellent performance for the clarification of process water and waste water.
