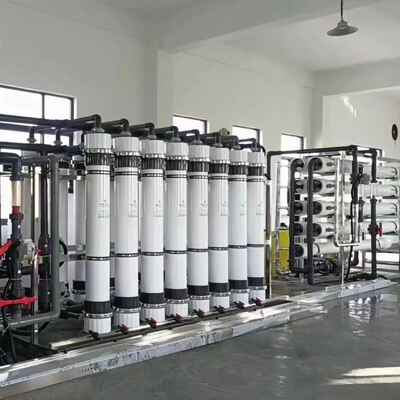

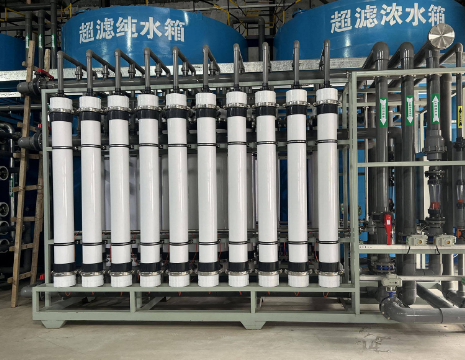

20-50 TPH UF System Specially Designed for High-Temperature Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | FG Water Technologies |
| Certification: | CE |
| Model Number: | FG-UF-65C(High Temperature Version) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 15-30 working days |
| Payment Terms: | ,T/T |
|
Detail Information |
|||
| Operating Temperature Range: | 5 - 65°C (Specialized High-Temp Design) | Maximum Ambient Temperature: | Up To 55°C (Desert Environment Rated) |
|---|---|---|---|
| Capacity Range: | 20 - 50 TPH (5,280 - 13,200 GPD) | Cooling Requirement Before UF: | Not Required Up To 65°C |
| Membrane Lifetime At High Temp: | Normal Lifespan Maintained | SDI Stability At >50°C: | Maintains ≤3 |
| Maximum Operating Temperature: | 65°C | ||
Product Description
20-50 TPH UF System Specially Designed for High-Temperature Applications
20-50 TPH Capacity | SDI ≤3 Output | Specially Designed for High-Temperature Applications
Product Overview
The FG-UF-65C is a specialized high-temperature ultrafiltration system engineered for extreme environments where conventional UF systems fail. With an operating temperature range of 5-65°C, this system is specifically designed for desert climates, high-temperature industrial processes, and challenging applications where feed water temperatures exceed 45°C.
Key Innovation: Our proprietary PVDF membrane formulation and enhanced skid design maintain optimal performance at temperatures up to 65°C - a capability not offered by standard UF systems that typically max out at 45°C.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Code | FG-UF-65C (High Temperature Version) |
| Operating Temperature Range | 5 - 65°C (Specialized High-Temp Design) |
| Capacity Range | 20 - 50 TPH (5,280 - 13,200 GPD) |
| UF Membrane Type | High-Temp PVDF Hollow Fiber |
| Nominal Pore Size | 0.02 - 0.03 μm |
| Operating Pressure | 0.1 - 0.5 MPa (1 - 5 bar) |
| SDI Output | ≤3 (Maintains ≤2.5 at 65°C) |
| Turbidity Removal | >99.9% (Output <0.1 NTU) |
| System Recovery | 88 - 93% (High-temp optimized) |
| Maximum Ambient Temperature | Up to 55°C (Desert Environment Rated) |
| Control System | PLC with HMI, High-Temp Auto Backwash, Enhanced CIP System |
| Power Supply | 380V/3Phase/50Hz (440V/60Hz Optional) |
| Skid Material | 316L Stainless Steel with Heat-Resistant Coating |
| Insulation | High-Temp Insulation Jacket (Optional) |
| Cooling System | Integrated Heat Exchanger (For >60°C applications) |
| Warranty | 3 Years on High-Temp Membrane, 2 Years on System |
Application Scenarios
The FG-UF-65C is specifically engineered for applications where high temperatures pose significant challenges to conventional water treatment systems:
