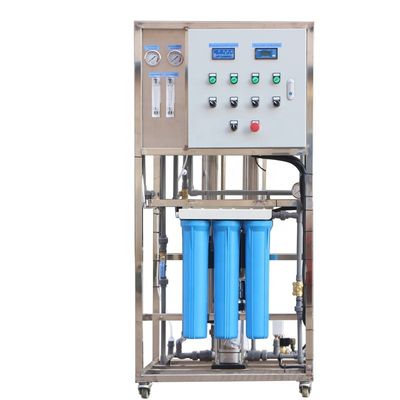

Skid Mount 600 GPD Reverse Osmosis System
Product Details:
Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE/NSF etc. |
Model Number: | ROS-1125~12140 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
Delivery Time: | 15~30 days |
Payment Terms: | T/T, Western Union, Paypal etc. |
Supply Ability: | 50 set per month |
Detail Information |
|||
Technology: | Commercial Water Reverse Osmosis | Design: | Skid Mount |
---|---|---|---|
Recovery Rate: | 65~75% | Feed TDS/ppm: | <2,000 |
Water Temp.: | 5~35˚C | PH: | 4~9 |
TSS/mg/L: | <5 | Silt Density Index: | <3 |
Free Chlorine Mg/L: | 0 | Dissolved Iron Mg/L: | <0.1 |
Warranty: | 1 Year | Material: | SS304/SS316L,carbon Steel |
Voltage: | 380V,415V,220V,can Be Customized | Application: | Water Purification,Filtration,pharmceutical,drinking Water,food |
Size: | Depends,1750*550*1650mm | Type: | Reverse Osmosis System |
Function: | Water Purifying, Desalination | Desalination Rate: | 99%,99.7% |
Control: | Electronic,Manual/PLC | Ro Membrane: | Vontron, Hydranautics Or DOW,4040 |
Pump: | CNP / Grundfos,CNP | ||
High Light: | 600GPD commercial reverse osmosis machine,NSF 600 GPD reverse osmosis system,Skid mount 600 GPD reverse osmosis system |
Product Description
Skid Mount 600 GPD Reverse Osmosis System
ROS Series Commercial Reverse Osmosis Systems 600~18,000GPD Global Voltage Available
These reverse osmosis systems use the proven, reliable components and are mounted on a sturdy powder-coated metal frame. There are numerous design details learned from years of experience that are incorporated in our water filtration systems. Our process and fluid design ensures an optimum membrane life and minimizes the membrane fouling.
Operation Specifications
Max. feed water temperature: 42°C Equipment upgrade for TDS up to 5,000 ppm Hydrogen Sulfide must be removed Max. Silica tolerance: 25 ppm @ 60% recovery |
Feed water TDS: 0-2,000 ppm Operating pressure: 150 to 250 psi pH tolerance range: 3-11 Max. Iron content: 0.05 ppm |
Feed water pressure: 20 to 80 psi Hardness over 1 GPG requires water softener Turbidity should be removed Operate at higher TDS by lowering recovery |
Technical Specification
Model Number | Permeate Flow Rate | Membranes | Motor Rating at 1,000 ppm | Approx. Weight | Dimensions | |||||
GPD | M3/D | Size | Qty. | 60Hz (hp) | 50Hz (hp) | LBS | KG | L”xW”xH” | LxWXH (cm) | |
ROS-1125 | 600 | 2 | 2.5"x40" | 1 | 1/2 | 1/2 | 100 | 45 | 21x24x55 | 53x61x140 |
ROS-2125 | 1,200 | 5 | 2.5"x40" | 2 | 1/2 | 1/2 | 110 | 50 | 21x24x55 | 53x61x140 |
ROS-3125 | 1,800 | 7 | 2.5"x40" | 3 | 3/4 | 3/4 | 125 | 57 | 21x24x55 | 53x61x140 |
ROS-1140 | 1,500 | 6 | 4"x40" | 1 | 1 | 1 | 125 | 57 | 21x25x55 | 53x64x140 |
ROS-2140 | 3,000 | 11 | 4"x40" | 2 | 1 | 1 | 160 | 73 | 21x25x55 | 53x64x140 |
ROS-3140 | 4,500 | 17 | 4"x40" | 3 | 1.5 | 1.5 | 190 | 86 | 21x25x55 | 53x64x140 |
ROS-4140 | 6,000 | 23 | 4"x40" | 4 | 1.5 | 1.5 | 220 | 100 | 21x30x55 | 53x76x140 |
ROS-5140 | 7,500 | 28 | 4"x40" | 5 | 2 | 2 | 250 | 114 | 21x30x55 | 53x76x140 |
ROS-6140 | 9,000 | 34 | 4"x40" | 6 | 2 | 2 | 280 | 127 | 21x30x55 | 53x76x140 |
ROS-8140 | 12,000 | 45 | 4"x40" | 8 | 3 | 3 | 380 | 173 | 27x34x56 | 69x86x142 |
ROS-10140 | 15,000 | 57 | 4"x40” | 10 | 3 | 3 | 450 | 205 | 27x34x56 | 69x86x142 |
ROS-12140 | 18,000 | 68 | 4"x40” | 12 | 3 | 3 | 500 | 227 | 27x40x56 | 69x102x142 |
Voltage Codes:
116 = 115v, 1ph, 60hz (up to ROS-2140 only)
215 = 220/230v, 1ph, 50hz
216 = 220/230v, 1ph, 60hz
235 = 240v, 3ph, 50hz (ROS-3140+ Only)
236 = 240v, 3ph, 60hz (ROS-3140+ Only)
335 = 380v, 3ph, 50hz (ROS-3140+ Only)
435 = 400/415v, 3ph, 50hz (ROS-3140+ Only)
436 = 460v, 3ph, 60hz (ROS-3140+ Only)
Standard Features: | Available Options: |
2.5"/4" TFC spiral wound membranes Pre/post filter and pump pressure gauges |
Automatic flush Pre piped skid system Blending: feed/product Tank float switch Recycle flow meter Post DI polishers Water softeners Ozonation system / UV sterilizers Media filters pH or ORP meter High pressure switch Export wood crating |
The ideal applications for brackish reverse osmosis systems include:
Metal Finishing Beverage Production and Bottled Water Electronics Pharmaceutical Mining Industry Chemical Blending |
Safe Drinking Water Rinse Water Power Plants Plating Operations EDI Pre-treatment Food and Beverage |
Spot Free Product Rinse Cooling Towers Laboratory Boiler Feed Water Ice Manufacturing Ion Exchange Pre-treatment |
