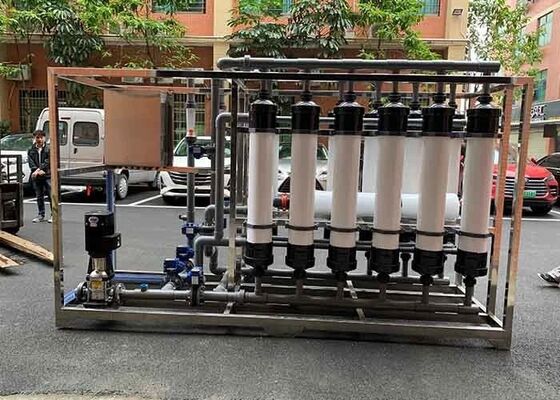

20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | FG Water Technologies |
| Certification: | CE |
| Model Number: | FG-UF-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 15-30 working days |
| Payment Terms: | ,T/T |
|
Detail Information |
|||
| Model: | FG-UF-20 | System Nominal Capacity: | 20 TPH (5,280 GPD) |
|---|---|---|---|
| Membrane Type: | PVDF Hollow Fiber,Outside-In Configuration | Nominal Pore Size: | 0.02 μm |
| Operating Pressure: | 0.1 - 0.3 MPa (1 - 3 Bar) | Operating Temperature: | 5 - 45°C (Customizable To 65°C) |
| SDI Output: | ≤3 (Typically 2.0-2.5) | Turbidity Removal: | >99.5% (Output <0.1 NTU From Feed Up To 50 NTU) |
Product Description
20 TPH Ultrafiltration System Is Compact And Ideal For Medium-sized Industrial Applications
20 TPH Capacity | Compact Design | Ideal for Medium Industrial Applications
Product Overview
The FG-UF-20 is a compact, high-efficiency ultrafiltration system specifically engineered for medium-scale industrial applications. With a capacity of 20 TPH (5,280 GPD), this skid-mounted system delivers exceptional water quality while occupying minimal floor space, making it the ideal choice for facilities with space constraints.
Featuring PVDF hollow fiber membranes with 0.02μm nominal pore size, the system ensures reliable removal of suspended solids, bacteria, viruses, and colloids, providing consistently high-quality water for downstream processes or direct use.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Code | FG-UF-20 |
| Nominal Capacity | 20 TPH (5,280 GPD) |
| UF Membrane Type | PVDF Hollow Fiber, Outside-In Configuration |
| Membrane Area | 280 m² (Standard Configuration) |
| Nominal Pore Size | 0.02 μm |
| Operating Pressure | 0.1 - 0.3 MPa (1 - 3 bar) |
| Operating Temperature | 5 - 40°C (Extended range to 45°C optional) |
| SDI Output | ≤3 (Typically 2.0-2.5) |
| Turbidity Removal | >99.5% (Output <0.1 NTU from feed up to 50 NTU) |
| Bacteria Log Reduction | >6 LRV (99.9999% removal) |
| System Recovery | 92 - 95% |
| Control System | PLC with 7-inch HMI Touch Screen, Auto Backwash, CIP System |
| Backwash Frequency | 30-60 minutes (Adjustable) |
| Power Supply | 380V/3Phase/50Hz (220V/60Hz optional) |
| Power Consumption | 3.5 - 4.5 kW (Depending on feed conditions) |
| Dimensions (L×W×H) | 2000 × 1200 × 1800 mm |
| Footprint Area | 2.4 m² (Only 25.8 ft²) |
| Skid Material | 304 Stainless Steel (316L Optional for corrosive environments) |
| Weight (Dry) | Approx. 850 kg |
| Delivery Time | Standard: 30-35 days, Express: 20 days (subject to order confirmation) |
| Warranty | 3 Years on Membrane, 2 Years on System Components |
Standard Features
- Complete skid-mounted design, pre-assembled and factory tested
- Automatic backwash with air scouring option
- Chemical Enhanced Backwash (CEB) capability
- Integrated Clean-In-Place (CIP) system
- Pressure gauges and flow meters on all critical points
- Low-pressure protection and automatic shutdown
- Modbus communication protocol for integration with plant SCADA
- Stainless steel protective cover (optional)
- Local and remote operation modes
- Data logging for 1 year of operation parameters
Application Scenarios
The FG-UF-20 is specifically designed for medium-scale industrial and commercial applications where space efficiency, reliability, and cost-effectiveness are paramount:
Food & Beverage Processing
Provides high-quality process water for beverage production, ingredient mixing, and cleaning operations. Removes microorganisms and particulates that could affect product quality and shelf life.
Typical Applications:
- Bottled water and beverage plants
- Dairy processing facilities
- Food ingredient manufacturing
- Breweries and wineries
Regional Water Treatment Stations
Ideal for small communities, industrial parks, or remote facilities requiring independent water treatment. Compact design allows for installation in limited spaces while serving populations of 500-2,000 people.
Typical Applications:
- Small community water supply
- Industrial park central water treatment
- Construction site temporary water supply
- Island and remote area water systems
Hospitality & Tourism Facilities
Ensures safe, high-quality water for guest use while minimizing chemical treatment requirements. Quiet operation and compact footprint make it suitable for installation near guest areas.
Typical Applications:
- Resorts and hotels (especially in remote locations)
- Tourist attraction water supply
- Spa and wellness centers
- Golf course irrigation and clubhouse supply
Typical Performance Data
Feed Water Conditions: Surface water with turbidity 5-30 NTU, SDI 4-6
Product Water Quality: Turbidity <0.1 NTU, SDI <3, Bacteria removal >99.999%
Chemical Consumption: NaClO for CEB: 5-10 mg/L, Citric acid for CIP: 0.1-0.3%
Why Choose FG-UF-20?
The FG-UF-20 combines German engineering principles with Chinese manufacturing efficiency to deliver exceptional value for medium-scale water treatment applications:
