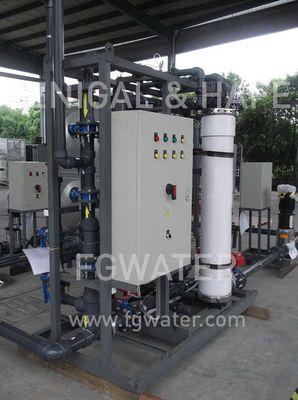

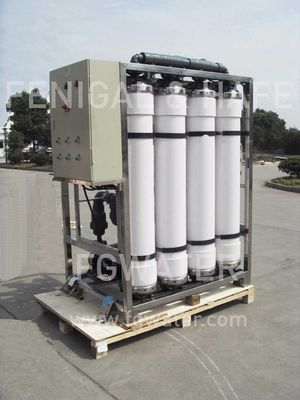

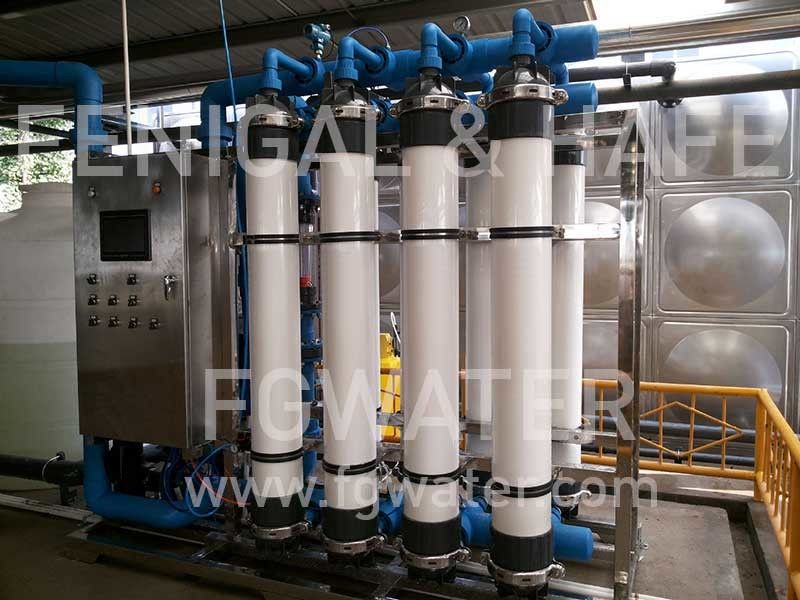

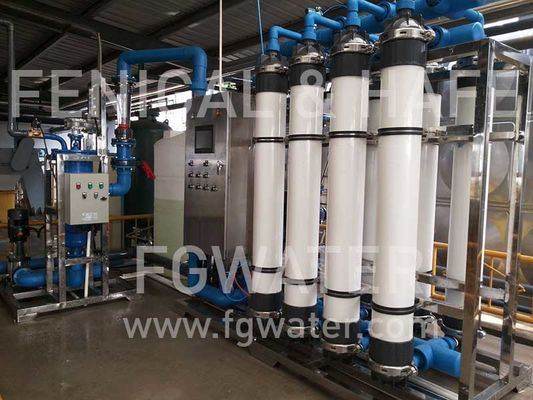

Water Purifiier Ultrafiltration Membrane System With Carbon Filter 320TPD
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | UF-20TPH, 2-9 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Technology: | Ultrafiltration | Design: | Skid Mount |
|---|---|---|---|
| Permeate Flow/TPD: | 5~100/skid | Recovery Rate: | 90~98% |
| Water Temp.: | 5~35˚C | PH: | 2~11 |
| TSS/mg/L: | <100 | Tubidity: | <300 |
| Dissolved Iron Mg/L: | <0.1 | Skid Material: | SS304/SS316L,carbon Steel |
| Voltage: | 380V,415V,220V,can Be Customized | Application: | Water Purification,Filtration,pharmceutical,drinking Water,food |
| Function: | Water Purifying, RO Pre-treatment | Control: | Electronic,Manual/PLC |
| High Light: | 320TPD ultrafiltration membrane system,220V ultrafiltration membrane system,320TPD ultra filtration plant |
||
Product Description
Water Purifiier Ultrafiltration Membrane System With Carbon Filter 320TPD
Water Purifiier Ultrafiltration Membrane System With Carbon Filter 320TPD
Introduction
The methods of water treatment include physical treatment and chemical treatment.
The physical method includes the use of various filter materials with different pore sizes, and the impurities in the water are excluded by adsorption or blocking. The most important adsorption method is adsorption by activated carbon, and the blocking method is to pass water through the filter material to make the volume. Larger impurities cannot pass, resulting in cleaner water. The chemical method uses various chemicals to convert impurities in water into substances that are less harmful to the human body, or concentrates impurities. After the impurities in the water are collected, the volume becomes larger, and the impurities can be removed by filtration.
Working principle
Ultrafiltration membrane is the anisomerous semipermeable membrane made of macro molecule material as the separation method without phase transition for solution, and can remove particles whose molecule weight ranges 1,500-100,000 Dalton,and can effectively remove organic,bacterium,virus,colloid and non-ion suspended solid.
Application fields
· Industrial wastewater purification and useful material recycling |
· Medical sterile water and water for injection to manufacture |
· Juice concentrated and refined |
· Minerals purification and sterile |
· Process water purification and sterile |
. Wine and lighter white spirit refined through membrane method |
Process:
Raw water+ raw water tank+ raw water pump+ sand filter + carbon filter+ security filter + UF system+ pure water tank + UV sterilizer (ozone generation)+ precision filter + water supply points
