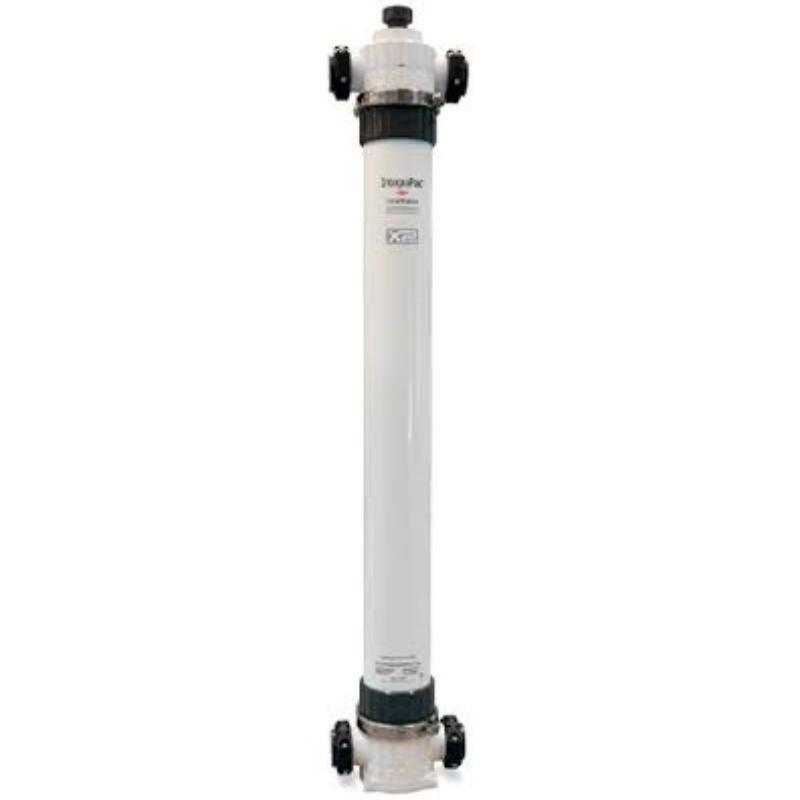

IntegraTec™ XP 51 IG Compact UF Membrane Module with 0.03 μm Pore Size and PVDF Hollow Fiber Technology
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | ISO 14001， CE ，ISO 9001 |
| Model Number: | IntegraTec™ XP 51/ XP 51 IG(previously SFD/SFP-2860XP) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 2000 Units per Month |
|
Detail Information |
|||
| XP 51 IG Mode Of Filtration: | Out-In Pressurized | XP 51 IG Membrane Type: | Hollow Fiber |
|---|---|---|---|
| XP 51 IG Membrane Material: | PVDF (Polyvinylidene Fluoride | XP 51 IG Membrane Pore Size: | Approx. 0.03 µm |
| Module Operating Process: | Dead-end | Other Wetted Module Components: | Polyurethane, Polyethylene, And Polyamide |
| XP 51 IG Active Membrane Area: | 51 M² | XP 51 IG Shipping Weight: | 60 Kg |
| XP 51 IG Weight Empty: | 48 Kg | Weight Filled: | 83 Kg |
| Application Of The Product: | Wastewater Treatment | XP 51 IG Advantages: | Suitable For System Designs With Limited Height Or Space |
| Highlight: | Compact Design UF Membrane Module,0.03 μm Pore Size Ultrafiltration Membrane,PVDF Hollow Fiber Membrane |
||
Product Description
The IntegraTec™ XP 51 IG Ultrafiltration Membrane Module is a compact high-performance UF membrane solution designed for water treatment systems where installation height and available space are limited.
Featuring advanced hydrophilic PVDF hollow fiber membrane technology, the XP 51 IG provides excellent filtration performance, strong fouling resistance, and reliable operation under demanding industrial conditions.

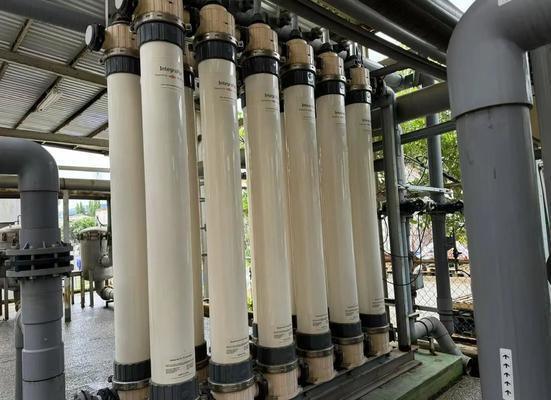

With a compact module structure and optimized integration design, this UF module is particularly suitable for containerized treatment systems, modular RO pretreatment units, and customized skid-mounted water treatment equipment.
The XP 51 IG combines high filtration efficiency with flexible system integration, making it an ideal choice for standardized export systems and space-constrained industrial applications.
The XP 51 IG is engineered for applications where conventional UF modules may not fit.
- Reduced module height
- Space-efficient installation
- Suitable for containerized systems
- Flexible skid integration
- Easy system expansion
The module utilizes high-performance PVDF hollow fiber membranes with excellent durability.
- Strong resistance to fouling
- High chlorine tolerance
- Improved membrane wetting performance
- Easy cleaning and maintenance
- Long service life
The XP 51 IG effectively removes suspended particles, colloidal substances, bacteria, and microorganisms.
Typical filtration performance:
- Nominal pore size: 0.03 μm
- Filtrate turbidity: ≤0.1 NTU
- Filtrate SDI: ≤2.5
The optimized module structure provides:
- High air scour tolerance
- Stable flux operation
- Reduced chemical cleaning frequency
- Lower lifecycle operating costs
| Parameter | Specification |
|---|---|
| Product Model | XP 51 IG |
| Membrane Technology | Ultrafiltration (UF) |
| Membrane Material | Hydrophilic PVDF |
| Nominal Pore Size | 0.03 μm |
| Effective Membrane Area | 51 m² |
| Module Diameter | Approx. 203 mm (8 inch) |
| Module Length | Approx. 1520 mm |
| Filtration Mode | Outside-In Dead-End |
| Application Type | Industrial UF / RO Pretreatment |
| Parameter | Specification |
|---|---|
| Filtrate Flux at 25°C | 40-110 L/m²*h |
| Flow Range | 2.0-8.5 m³/h |
| Operating Temperature | 1-40°C |
| Maximum Inlet Pressure | 6.25 bar |
| Maximum Operating TMP | 2.1 bar |
| Maximum Air Scour Flow | 12 Nm³/h |
| Maximum Backwash Pressure | 2.5 bar |
| Operating pH Range | 2-11 |
| Maximum NaOCl Concentration | 2,000 mg/L |
| Maximum Particle Size | 300 μm |
| Parameter | Value |
|---|---|
| Overall Length | 1860 mm |
| Module Length Options | 1500 / 1630 / 1820 mm |
| Diameter | 225 mm |
| Width Options | 180 / 342 mm |
The compact XP 51 IG module is ideal for:
- Mobile water treatment plants
- Containerized UF systems
- Emergency water supply units
- Remote area treatment projects
Provides high-quality feed water protection for reverse osmosis systems.
Applications:
- Industrial RO systems
- Process water purification
- High-quality feed preparation
Suitable for customized skid systems requiring:
- Compact footprint
- High reliability
- Flexible configuration
- Easy installation
The IntegraTec™ XP 51 IG provides a balance of compact design, advanced PVDF membrane technology, and reliable filtration performance.
Its space-saving structure makes it especially valuable for containerized and modular water treatment projects where installation flexibility and operational reliability are essential.
