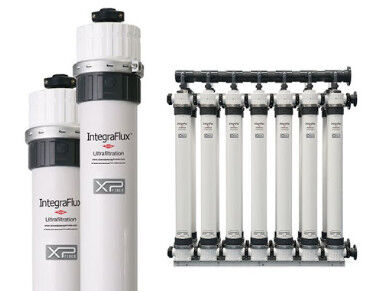

DuPont™ IntegraTec™ XP 77 IG Hollow Fiber Ultrafiltration Module with Hydrophilic PVDF Fiber and 77 m² Active Membrane Area for High Fouling Resistance
Product Details:
| Place of Origin: | China |
| Brand Name: | Dupont |
| Certification: | CE |
| Model Number: | IntegraTec™ XP 77/XP 77 IG (formerly SFP/SFP 2880XP) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |

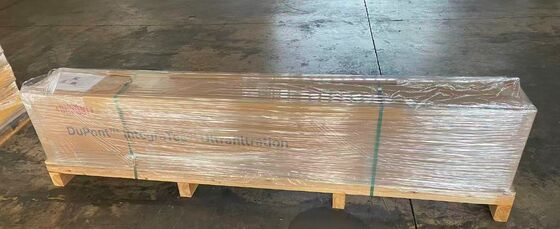

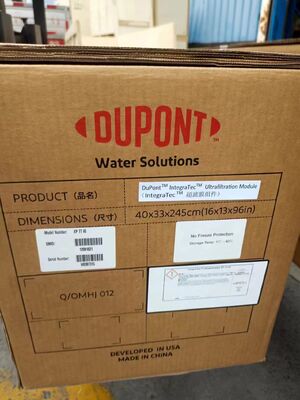

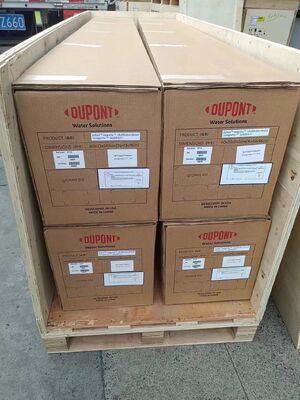

| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Type: | Hollow Fiber | Membrane Material: | Hydrophilic PVDF (XP™) |
|---|---|---|---|
| Active Membrane Area: | 77 M² (829 Ft²) | Nominal Pore Size: | 0.03 μm |
| Max Inlet Pressure: | 6.25 Bar (90.7 Psi) | Shipping Weight: | 73 Kg (161 Lbs) |
Product Description
The DuPont™ IntegraTec™ XP 77 IG is engineered for high performance and durability in demanding filtration applications.
- Proven XP™ Hydrophilic PVDF Fiber:
- Superior Fouling Resistance: Maintains high permeability and flux.
- Excellent Cleanability: Easy to clean and rewet, ensuring long membrane life.
- High Rejection Rate: Effectively removes colloidal particulates, bacteria, and viruses.
- Robust Chemical Resistance: Withstands high chlorine exposure and a wide pH range.
- Optimized Module Design:
- Open Platform: Designed to adapt seamlessly to customer-built skids.
- High Productivity: Large active filtration area maximizes output.
- Cost Efficiency: Reduces chemical consumption during maintenance cleaning.
- Easy Installation: Simplified assembly and low maintenance requirements.
| Parameter | Specification |
|---|---|
| Part No. / GMID | 12091621 |
| Filtration Mode | Out-In, Pressurized |
| Membrane Type | Hollow Fiber |
| Nominal Pore Size | 0.03 μm |
| Operating Process | Dead-end Filtration |
| Wetted Materials | PVDF, Polyurethane, uPVC, EPDM, ABS |
| Parameter | Metric Unit | Imperial Unit |
|---|---|---|
| Active Membrane Area | 77 m² | 829 ft² |
| Overall Length [L] | 2,363 ± 30 mm | 93.0 ± 0.1 inch |
| Module Diameter [D] | 225 mm | 8.9 inch |
| Module Width [W1/W2] | 180 / 342 mm | 7.1 / 13.5 inch |
| Port Size (Feed/Filtrate) | DN50 (51 mm) | 2.0 inch |
| Shipping Weight | 73 kg | 161 lbs |
| Weight (Filled with Water) | 100 kg | 220 lbs |
| Total Hold-up Volume (CIP) | 61 L | 16.1 gal |
Please note: These are general guidelines. Specific applications may vary.
- Temperature Range: 1 – 40°C (34 – 104°F)
- Operating pH Range: 2 – 11 (Up to pH 12 for short periods)
- Filtration Flux: Up to 110 L/m²/h (64.5 gfd)
- Backwash Flux: Up 120 L/m²/h (70.6 gfd)
- Max Particle Size: 300 μm
- NaOCl Exposure Limit: ≤ 1,500,000 ppm-hours (Recommended max. instantaneous: 2,000 ppm)
| Parameter | Metric Unit | Imperial Unit |
|---|---|---|
| Max Inlet Pressure | 6.25 bar (at 20°C) | 90.7 psi |
| Max Filtration TMP | 21 bar | 305 psi |
| Max Backwash TMP | 25 bar | 36 psi |
| Max Rate of Pressure Change | 0.5 bar/sec | 7.3 psi/sec |
- Industrial Utility Water: High recovery and large size filtration.
- Industrial Wastewater Reuse: Robust materials for long lifetime in harsh conditions.
- Municipal Wastewater Filtration: Open platform design for easy integration.
- RO Pretreatment: Excellent filtration permeability for downstream protection.
- Handling: Avoid abrupt pressure variations to prevent membrane damage.
- Drinking Water: Certified modules require specific conditioning procedures prior to producing potable water.
- Assembly: Please strictly follow the official DuPont™ IntegraTec™ Assembly Manual (Form No. 45-D02507-en).
- Disclaimer: Failure to follow operating parameters and manuals may void the warranty.
