DuPont™ IntegraTec™ XP 51IG Ultrafiltration Membrane Module with 51 m² Area, Open Platform Design, and Chlorine Resistant PVDF
Product Details:
| Place of Origin: | China |
| Brand Name: | Dupont |
| Certification: | CE |
| Model Number: | IntegraTec™ XP 51/ XP 51 IG(previously SFD/SFP-2860XP) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Filtration Configuration: | Pressurized, Outside-In | Membrane Geometry: | Hollow Fiber |
|---|---|---|---|
| Membrane Composition: | PVDF | Pore Size: | 0.03 μm |
| Membrane Area: | 51 M² | Total Length: | 1,863 Mm |
Product Description
DuPont™ IntegraTec™ XP 51IG Ultrafiltration Membrane Module
1. Product Overview
The DuPont™ IntegraTec™ XP 51IG is a high-performance ultrafiltration (UF) membrane module designed for open platform configurations. It combines DuPont’s proven hydrophilic PVDF material with an optimized module design to deliver an efficient, durable, and cost-effective filtration solution for industrial water treatment, municipal wastewater reuse, and reverse osmosis (RO) pretreatment.
2. Key Features & Benefits
- Superior Fouling Resistance and Chlorine Tolerance: Featuring XP™ hydrophilic PVDF fibers, the module offers excellent fouling resistance and effective protection against chlorine attack, extending membrane life.
- High Filtration Performance: High permeability enables efficient removal of colloidal particles, bacteria, and viruses, ensuring high recovery rates

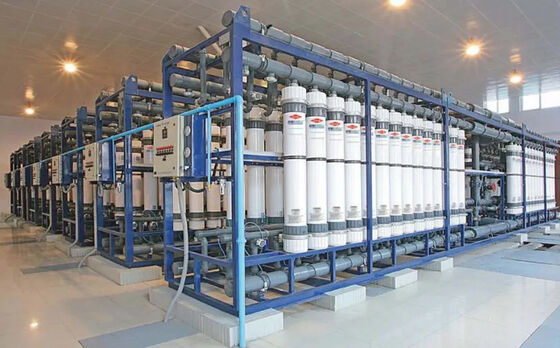

- Open Platform Design: Specifically designed to fit customer-built skids, offering great engineering flexibility.
- Compact Design: Short module design ideal for height-limited or containerized installations.
- Low Operating Costs: Optimized cleaning protocols reduce chemical consumption, and the module is easy to clean and wet, lowering maintenance costs.
3. Key Applications
- Industrial utility water
- Industrial wastewater reuse
- Municipal wastewater filtration
- Reverse osmosis (RO) pretreatment
4. Specifications
| Parameter | Specification |
|---|---|
| Membrane Module Model | DuPont™ IntegraTec™ XP 51IG (Open Platform) |
| Membrane Material | PVDF (Polyvinylidene Fluoride) |
| Filtration Mode | Outside-In (Out-In Pressurized) |
| Effective Membrane Area | 51 m² (549 ft²) |
| Membrane Pore Size | 0.03 μm |
| Total Length (L) | 1,863 ± 3 mm (73.3 ± 0.1 inch) |
| Diameter (D) | 225 mm (8.9 inch) |
| Dry Weight | 48 kg (106 lbs) |
| Wet Weight (Full of Water) | 83 kg (183 lbs) |
| Shipping Weight | 60 kg (132 lbs) |
5. Suggested Operating Conditions
- Temperature Range: 1 – 40°C (34 – 104°F)
- Operating pH: 2 – 11 (Maximum tolerance: pH 12)
- Typical Transmembrane Pressure (TMP): 0.4 – 1.5 bar (5.8 – 21.8 psi)
- Maximum Feed Pressure: 6.25 bar (90.7 psi @ 20°C)
- Maximum Instantaneous NaOCl Exposure: 2,000 ppm
6. Expert Notes
- Operational Safety: Avoid sudden pressure changes during startup, operation, or shutdown. Maximum allowable pressure change rate is 0.5 bar/s to prevent membrane damage.
- Drinking Water Certification: For potable water production, the module must undergo specific conditioning procedures and comply with local regulatory guidelines.
- Maintenance Recommendations: Regular maintenance cleanings are recommended to sustain optimal performance.
Product Specifications
| Properties | Length | Diameter | Width | ||||
|---|---|---|---|---|---|---|---|
| Units | L | L1 | L2 | L3 | D | W1 | W2 |
| SI (mm) | 1860 | 1500 | 1630 | 1820 | 225 | 180 | 342 |
Operating Parameters
| SI units | US units | |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-110 l/m2/hr | 24-65 gfd |
| Flow range | 2.0 – 8.5 m3/hr | 8.8 – 37.4 gpm |
| Temperature | 1-40ºC | 34-104ºF |
| Max. inlet module pressure (@ 20ºC) | 6.25 bar | 90.65 psi |
| Max. operating TMP | 2.1 bar | 30.5 psi |
| Max operating air scour flow | 12 nm3/hr | 7.1 scfm |
| Max backwash pressure | 2.5 bar | 36 psi |
| Operating pH | 2- 11 | |
| NaOCl (max.) | 2,000 mg/L | |
| Particle size (max.) | 300 µm | |
| Flow configuration | Outside in,dead end flow | |
| Expected filtrate turbidity | ≤0.1 NTU | |
| Expected filtrate SDI | ≤2.5 | |
| / | ||
| / | ||
