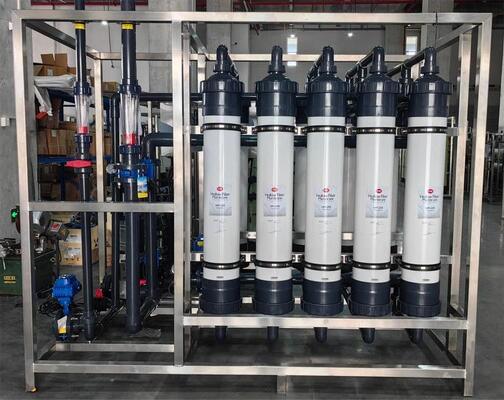

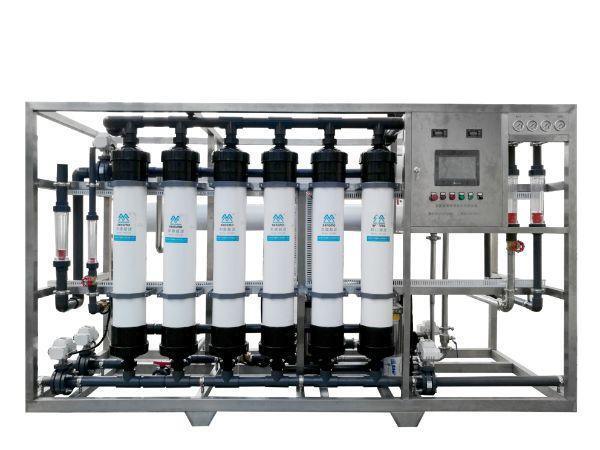

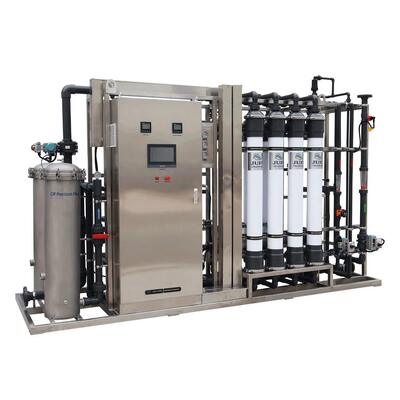

FG-UF-20 Compact Industrial Ultrafiltration System with 20 TPH Capacity and PVDF Membrane for Efficient Water Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | FGWATER |
| Certification: | ISO 14001， CE ，ISO 9001 |
| Model Number: | FG-UF-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 30-40 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 20 Units per Month |
|
Detail Information |
|||
| Model: | FG-UF-20 | System Nominal Capacity: | 20 TPH (5,280 GPD) |
|---|---|---|---|
| Membrane Type: | PVDF Hollow Fiber,Outside-In Configuration | Nominal Pore Size: | 0.02 μm |
| Operating Pressure: | 0.1 - 0.3 MPa (1 - 3 Bar) | Operating Temperature: | 5 - 45°C (Customizable To 65°C) |
| SDI Output: | ≤3 (Typically 2.0-2.5) | ||
| Highlight: | 20 TPH Capacity Ultrafiltration System,PVDF Membrane UF Water Treatment Unit,Compact Design PVDF Hollow Fiber UF |
||
Product Description
The FG-UF-20 Compact Ultrafiltration System is a high-efficiency membrane filtration solution designed for medium-scale industrial water treatment applications where reliable performance, compact installation, and easy operation are required.
With a rated capacity of 20 TPH (5,280 GPD), this skid-mounted UF system integrates advanced PVDF hollow fiber membrane technology, automatic control functions, and a complete cleaning system into a compact treatment platform.
The system effectively removes suspended solids, colloidal particles, bacteria, and microorganisms while producing stable-quality filtrate for industrial processes, water reuse applications, and downstream reverse osmosis treatment.
Its compact footprint and integrated design make the FG-UF-20 suitable for facilities with limited installation space, including food processing plants, commercial facilities, industrial parks, and decentralized water treatment stations.
- Uses PVDF hollow fiber ultrafiltration membranes
- Nominal membrane pore size: 0.02 μm
- Effectively removes: suspended solids, colloids, bacteria, microorganisms
- Provides high-quality filtration for downstream processes
- Factory-assembled integrated structure
- Reduced installation requirements
- Small footprint: approximately 2.4 m²
- Suitable for projects with limited space availability
- PLC control system with HMI touchscreen
- Automatic backwash function
- Chemical enhanced backwash (CEB)
- Integrated CIP cleaning system
- Remote monitoring and SCADA integration capability
- Designed for continuous-duty applications
- High recovery efficiency: 92-95%
- Low energy consumption
- Reliable performance under variable feed water conditions
| Parameter | Specification |
|---|---|
| System Model | FG-UF-20 |
| Rated Capacity | 20 TPH (5,280 GPD) |
| Membrane Technology | PVDF Hollow Fiber UF |
| Membrane Configuration | Outside-In Flow |
| Total Membrane Area | 280 m² |
| Nominal Pore Size | 0.02 μm |
| Operating Pressure | 0.1-0.3 MPa (1-3 bar) |
| Operating Temperature | 5-40°C |
| Extended Temperature Option | Up to 45°C |
| System Recovery Rate | 92-95% |
| SDI Output | ≤3 |
| Turbidity Removal | >99.5% |
| Bacteria Removal | >6 LRV |
| Control System | PLC + 7-inch HMI Touch Screen |
| Power Supply | 380V / 3Phase / 50Hz |
| Power Consumption | 3.5-4.5 kW |
| Dimensions (L*W*H) | 2000 * 1200 * 1800 mm |
| Footprint Area | Approx. 2.4 m² |
| Skid Material | 304 Stainless Steel |
| Optional Material | 316L Stainless Steel |
| Dry Weight | Approx. 850 kg |
- Complete skid-mounted UF treatment unit
- Factory assembled and tested before delivery
- Automatic backwashing system
- Air scour cleaning option
- Chemical enhanced backwash capability
- Integrated CIP cleaning circuit
- Pressure and flow monitoring instruments
- Automatic low-pressure protection
- Remote/local operation modes
- Data recording function
- SCADA communication support
The FG-UF-20 provides high-quality process water by removing microorganisms and suspended contaminants that may affect product quality.
- Bottled water production
- Beverage manufacturing
- Dairy processing
- Food ingredient production
- Brewery and winery water treatment
The compact design makes the system suitable for decentralized water purification projects.
- Small community water supply
- Industrial park water treatment
- Temporary water treatment facilities
- Remote area water supply systems
The system provides reliable water purification with low chemical requirements and quiet operation.
- Hotels and resorts
- Tourist facilities
- Spa and wellness centers
- Golf course irrigation systems
| Parameter | Typical Performance |
|---|---|
| Feed Turbidity | 5-30 NTU |
| Feed SDI | 4-6 |
| Product Turbidity | <0.1 NTU |
| Product SDI | <3 |
| Bacteria Removal | >99.999% |
| CEB Chemical Consumption | NaClO 5-10 mg/L |
| CIP Chemical Consumption | Citric Acid 0.1-0.3% |
The FG-UF-20 combines advanced membrane filtration technology with a compact integrated design to provide a reliable and economical solution for industrial water purification, process water production, and water reuse applications.
