PVDF High Flux Internal Pressure Ultrafiltration Membranes UF₃OA160(L)
Product Details:
| Place of Origin: | China |
| Brand Name: | Zhaojin Motian |
| Certification: | CE |
| Model Number: | UF₃OA160(L) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Membrane Model: | UF₃OA160(L) | Membrane Material: | PVDF(Polyvinylidene Fluoride) |
|---|---|---|---|
| Outer Membrane Surface Area: | 55m²(592ft²) | Nominal Flow: | 4500 L/h |
| Maximum Water Inlet Pressure: | 0.2MPa | Molecular Weight Cutoff: | 100,000Dal |
| Fiber Inner/outer Diameter: | 0.8/1.3mm | Maximum Transmembrane Pressure Difference: | 0.15MPa |
| Operating Temperature Range: | 5-45°C | Feature: | High Flux Internal Pressure |
| Highlight: | Internal Pressure Ultrafiltration Membranes,UF3OA160L Ultrafiltration Membranes,PVDF High Flux Ultrafiltration Membranes |
||
Product Description

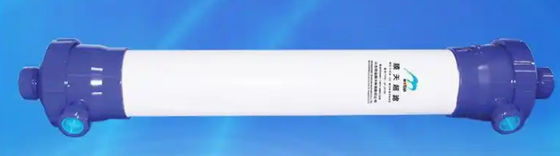

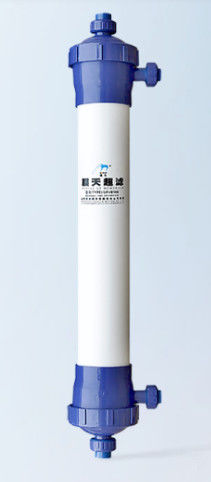

Zhishui Series PVDF High Flux Internal Pressure UF Membrane UF₃OA160(L)
Pressurized Outside to In / Dead-end Filtration Ultrafiltration (UF) Membrane Module
Motian's PVDF membrane construction is highly resistant to chlorine and strong acids, which allows for better cleaning and optimization of filtration flux rates after cleaning. The hollow fiber modules effectively remove suspended solids, viruses, and bacteria and are certified for drinking water applications
· Simple preprocessing
Excellent runner design broadens the influent water conditions.
· Long cleaning cycle
Strong pollution resistance, long decay period, good drug resistance, easy to clean and restore.
· Long service life
Membrane filament strength is high, continuous filament, permanent hydrophilic, slow flux decay.
· Safe and reliable water production
Mean aperture structure, large water production flux, wide range of adaptation to raw water quality.
· Low operating cost
Super hydrophilic modification, fast infiltration, less agent demand, thorough cleaning.
| Dimensions and Weight | Unit | UF3OA160 |
UF3OA160L |
| Diameter | mm (in) | 160(6.3) | |
| Length | mm (ft) | 1,350(4.43) | 1,734(5.69) |
| Weight | kg (lbs) | 24(52.9) | 30(66.2) |
| Material Specifications | |
| Description | Material |
| Casing | uPVC |
| Cap | uPVC |
| Potting | Epoxy resin |
| O-ring | EPDM |
| Dimensions and Weight | Unit | UF3OA160 |
UF3OA160L |
| Diameter | mm (in) | 160(6.3) | |
| Length | mm (ft) | 1,350(4.43) | 1,734(5.69) |
| Weight | kg (lbs) | 24(52.9) | 30(66.2) |
