XP 77IP IG High-Flux UF Module with 77 m² Membrane Area and Hydrophilic PVDF Hollow Fiber for Rack Integration
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | ISO 14001， CE ，ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Usage: | Industrial And Commercial Water Treatment | Membrane Type:: | Hollow Fiber |
|---|---|---|---|
| Membrane Material:: | Hydrophilic PVDF (XP™) | Active Membrane Area:: | 77 M² (829 Ft²) |
| Nominal Pore Size:: | 0.03 μm | ||
| Highlight: | 77 m² Membrane Area UF Module,Hydrophilic PVDF Hollow Fiber Ultrafiltration Module,Rack Integration Design High-Flux UF Module |
||
Product Description
The XP 77IP IG Ultrafiltration Module is a high-performance industrial UF membrane module designed for large-scale water treatment applications and rack-mounted system integration.
Utilizing advanced hydrophilic PVDF hollow fiber membrane technology, the module provides excellent fouling resistance, high chemical tolerance, stable filtration performance, and long service life.
With a large effective membrane area of 77 m², the XP 77IP IG delivers high filtration capacity while maintaining low maintenance requirements and reliable operation. Its optimized module structure allows efficient installation, system expansion, and simplified maintenance for industrial water treatment projects.
The module provides an ideal pretreatment solution for reverse osmosis systems and is widely applied in industrial water purification, wastewater reuse, and municipal water treatment applications.
- Advanced hydrophilic PVDF membrane material
- Excellent resistance to organic fouling and oxidation
- Supports repeated cleaning cycles
- Extends membrane service life and reduces maintenance frequency
- Effectively removes:
- Suspended solids
- Colloids
- Bacteria
- Microorganisms
- Provides stable and high-quality filtrate
- Suitable for demanding industrial water applications
- Active membrane area: 77 m²
- High filtration efficiency with compact module design
- Supports large-scale water treatment capacity
- Optimized for high recovery operation

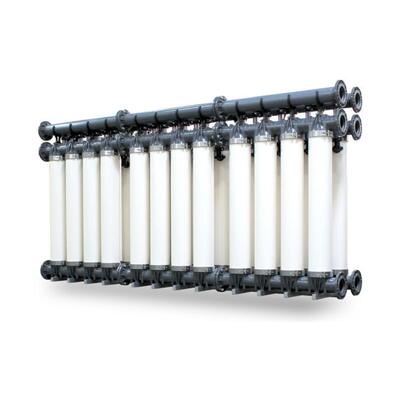

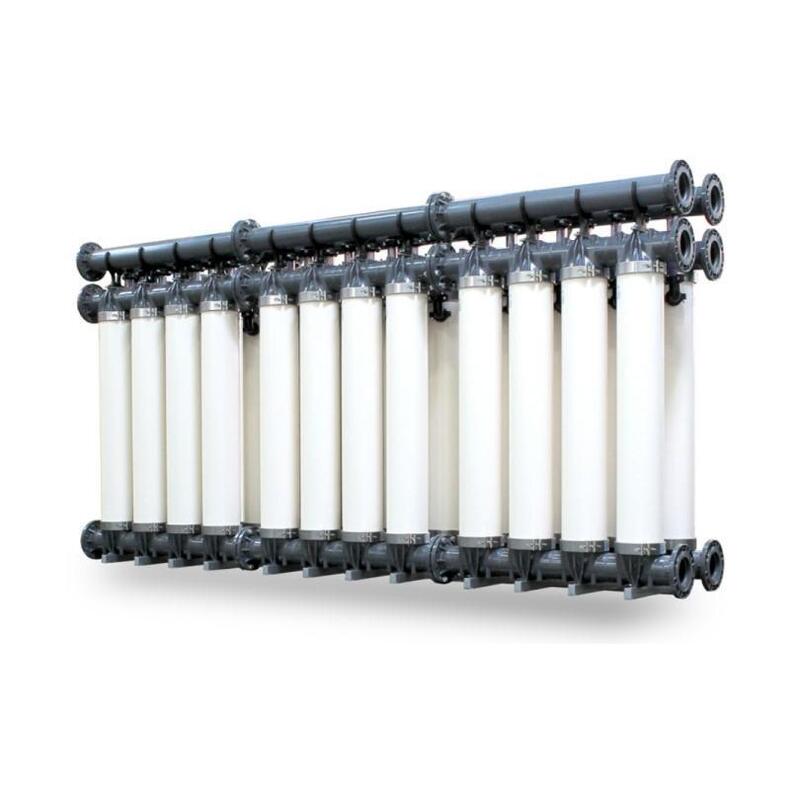

- Designed for rack-mounted UF systems
- Easy module installation and replacement
- Flexible system expansion
- Simplified operation and maintenance
- Hydrophilic membrane surface improves wetting performance
- Efficient backwash and cleaning process
- Reduces chemical usage and operating costs
The XP 77IP IG UF Module is suitable for:
- Industrial raw water purification
- Industrial wastewater reuse
- Municipal water treatment
- Reverse osmosis pretreatment
- Process water production
- Large-scale filtration systems requiring high reliability
| Item | Specification |
|---|---|
| Module Model | XP 77IP IG |
| Filtration Mode | Outside-In Pressurized |
| Filtration Type | Dead-End Filtration |
| Membrane Material | Hydrophilic PVDF Hollow Fiber |
| Membrane Pore Size | 0.03 μm |
| Active Membrane Area | 77 m² |
| Module Dimensions (L × D) | 2,491 mm × 225 mm |
| Empty Weight | 66 kg |
| Water-Filled Weight | 119 kg |
| Shipping Weight | 81 kg |
| Dead Volume | 38 L |
| Parameter | Operating Range |
|---|---|
| Temperature Range | 1-40 ℃ |
| Operating pH Range | pH 2-11 (Maximum pH 12) |
| Filtration TMP | 0.4-1.5 bar |
| Backwash TMP | 0.6-2.0 bar |
| Backwash Mode | Air Scour + Liquid Backwash |
| Maximum Feed Pressure | 6.25 bar (at 20℃) |
| Maximum Backwash Pressure | 25 bar |
- Avoid sudden pressure changes during start-up, operation, and shutdown.
- Maintain stable operating conditions to protect membrane integrity.
- Follow recommended cleaning procedures to control fouling.
- Optimize cleaning frequency to reduce chemical consumption and extend membrane lifetime.
- For long-term shutdown periods, apply proper preservation procedures to prevent biological growth.
- Follow professional installation procedures to ensure correct module assembly and reliable operation.
| Feature | Benefit |
|---|---|
| PVDF Hollow Fiber Membrane | Excellent durability and chemical resistance |
| 77 m² Membrane Area | High production capacity with compact design |
| High Flux Operation | Improved system efficiency |
| Rack-Compatible Structure | Easy installation and expansion |
| Low Maintenance Requirement | Reduced operating costs |
| Reliable Filtration Quality | Stable protection for downstream systems |
The XP 77IP IG Ultrafiltration Module provides a reliable, efficient, and scalable filtration solution for industrial water purification, wastewater reuse, and advanced water treatment systems requiring high performance and long-term stability.
