200 m³/day Integrated UF RO Containerized Water Treatment System with 70% Recovery Rate in 40ft Container
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | ISO 14001， CE ，ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 45~60 days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 8 set per month |
|
Detail Information |
|||
| Usage: | Industrial And Commercial Water Treatment | Installation Method: | Containerized / Mobile Design |
|---|---|---|---|
| Rated Recovery Rate:: | 70% | Power Requirement:: | 380~480V, 3PH, 50/60Hz, 55 KW |
| UF Stage Recovery:: | 90~95% (Feed-Dependent) | ||
| Highlight: | 200 m³/day Containerized Water Treatment System,70% Recovery Rate Integrated UF RO System,40ft Container Containerized Reverse Osmosis System |
||
Product Description
The FRO-CUFRO-200 Integrated UF + RO Containerized Water Treatment System represents an advanced single-container water treatment solution combining ultrafiltration (UF) pretreatment and reverse osmosis (RO) desalination within one standard 40-ft High Cube ISO container.
By integrating UF and RO technologies into a compact modular platform, the system provides a reliable dual-barrier treatment process for challenging raw water sources, including surface water, municipal wastewater effluent, and industrial reuse applications.
The system delivers a rated permeate production capacity of 200 m³/day (8.3 m³/h) while significantly reducing footprint, installation time, and operational complexity compared with traditional multi-stage water treatment plants.
The advanced UF pretreatment technology provides excellent removal of suspended solids, colloids, and organic contaminants, producing RO feed water with SDI ≤ 2.5 and turbidity ≤ 0.1 NTU, ensuring stable RO performance and extended membrane lifetime.
Designed with a fully automated PLC control system, 12-inch HMI touchscreen, and 4G remote monitoring capability, the FRO-CUFRO-200 provides intelligent operation, real-time diagnostics, and simplified maintenance.
- Integrated UF + RO Dual Barrier Treatment

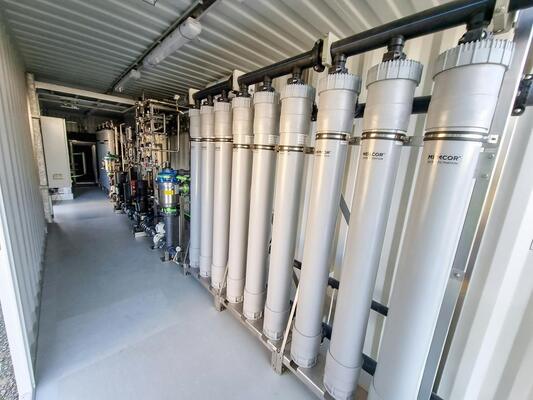

- Combines ultrafiltration and reverse osmosis in a single 40-ft container
- Includes: 6 * DuPont IntegraTec XP UF modules, 20 * DOW BW30-8040 RO membrane elements
- Provides high-quality treated water with stable operation
- Advanced UF Pretreatment Performance
- Produces RO feed water with: SDI ≤ 2.5, Turbidity ≤ 0.1 NTU
- Effectively removes: Suspended solids, Colloids, Organic matter, Micro-particles
- Automatic UF Cleaning System
- Fully automatic air scour backwash
- Filtrate backflush process
- Periodic chemical-enhanced backwash
- Maintains long-term UF membrane performance
- Independent UF & RO CIP Systems
- Dual Clean-In-Place (CIP) circuits: UF CIP: NaOCl / Citric Acid cleaning, RO CIP: NaOH / Citric Acid cleaning
- Automated valve sequencing
- Dedicated chemical dosing pumps
- Intelligent Automation & Remote Monitoring
- S7-1200 PLC control system
- 12-inch HMI touchscreen interface
- 4G remote access capability
- Real-time monitoring and fault diagnostics
- Compact Containerized Design

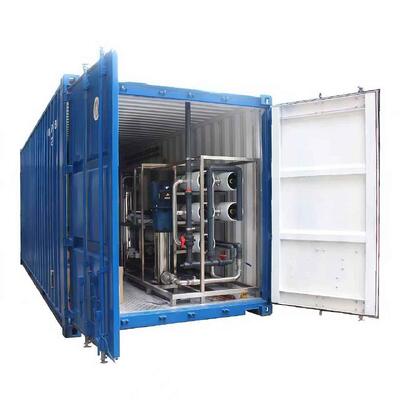

- Installed inside a standard 40-ft High Cube ISO container
- Approximately 35% footprint reduction compared with two-container systems
- Fast transportation, installation, and commissioning
| Parameter | Specification |
|---|---|
| Model | FRO-CUFRO-200 |
| Rated Production Capacity | 200 m³/day |
| Product Flow Rate | 8.3 m³/h |
| Production Capacity | 52,800 GPD |
| UF Stage Recovery | 90-95% (Feed Dependent) |
| RO Stage Recovery | 70-80% |
| Overall System Recovery | 63-76% |
| UF Membranes | 6 * DuPont IntegraTec XP 51IG |
| Total UF Membrane Area | 306 m² |
| UF Membrane Type | PVDF Hollow Fiber, Outside-In |
| UF Pore Size | 0.03 μm |
| UF Filtrate SDI | ≤ 2.5 |
| UF Filtrate Turbidity | ≤ 0.1 NTU |
| RO Membranes | 20 * DOW BW30-8040 |
| RO Configuration | 3-Stage Array |
| RO Salt Rejection | ≥ 99.0% |
| Maximum Feed Turbidity | 50 NTU Peak / 20 NTU Average |
| Feed Water TDS Range | 100-3,000 ppm |
| Power Requirement | 380-480V, 3PH, 50/60Hz |
| Rated Power | 55 kW |
| Container Type | 40-ft High Cube ISO Container |
| Container Certification | CSC Certified |
| Operating Weight | Approx. 14,000 kg |
The FRO-CUFRO-200 is designed for applications requiring reliable treatment of variable and challenging water sources. Typical applications include:
- Surface water treatment from rivers, lakes, and reservoirs
- Municipal wastewater effluent polishing and reuse
- Industrial process water production
- Food and beverage water treatment
- Textile and dyeing wastewater recovery
- Power plant cooling tower blowdown recovery
- Industrial water reclamation projects
The system is especially suitable for regions with high organic loading, seasonal turbidity variation, and limited installation space.
Each FRO-CUFRO-200 system undergoes comprehensive factory testing before delivery, including:
- 48-hour integrated wet testing
- UF membrane integrity testing
- RO membrane performance verification
- Complete PLC logic testing
Each containerized system is supplied with complete technical documentation, including:
- System P&ID drawings
- Equipment test certificates
- Chemical cleaning procedures
- Commissioning checklists
Optional services include:
- On-site commissioning
- Operator training
- Preventive maintenance agreements
The FRO-CUFRO-200 provides an efficient and flexible UF + RO containerized solution for municipalities, industries, and infrastructure projects requiring high-quality water production with minimal footprint and simplified operation.
