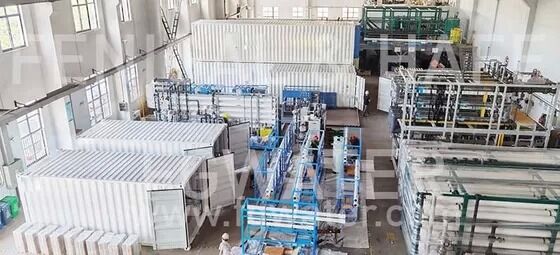

1,500 m³/day Desal BWC1500 Ultra‑Low Energy Industrial BWRO For The Green Choice for Mega‑Projects
Product Details:
| Place of Origin: | China |
| Brand Name: | FG Water Technologies |
| Certification: | CE |
| Model Number: | BWC500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Packaging Details: | Standard |
| Delivery Time: | 30 working days |
| Payment Terms: | T/T |
|
Detail Information |
|||
| Rated Recovery Rate: | 70% | Rated Product Flow: | 85 M³/h |
|---|---|---|---|
| RO Membrane Qty: | 108 Pcs | Container Size: | 40+40ft |
| Rated Power: | 99.4 KW | Energy Consumption: | 1.05kWh/m³ |
Product Description
500 M³/day Desal BWC500 – High‑Efficiency Containerized BWRO
For projects that demand both massive output and minimal environmental impact, the BWC1500 sets a new benchmark. Producing 65 m³/h (1,500 m³/day) with an astonishing energy consumption of just 0.99 kWh/m³ – the lowest in the series – this system packs 108 RO membranes into two 40‑ft containers. Advanced energy recovery and IE3 motors are standard, not options. Reinforced container structure and premium coatings ensure decades of service in harsh coastal or desert environments. The BWC1500 is the preferred solution for megacities, petrochemical complexes, and national irrigation schemes.
Key Specifications
| Parameter | Unit | Value |
|---|---|---|
| Rated Product Flow | m³/h | 65 |
| L/s | 18.06 | |
| Rated Recovery Rate | % | 70 |
| Rated Feed Flow | m³/h | 92.86 |
| Max System Pressure | barg | 20 |
| RO Membrane Spec | inch | 8,010 |
| RO Membrane Qty | pcs | 108 |
| Dry Weight | ton | 26+6 |
| Container Size | ft | 40 + 40 |
| Rated Power | kW | 89.4 |
| Energy Consumption | kWh/m³ | 0.99 |
| Installed Power | kW | 138.7 |
| Power Input | – | 3PH, 380V ±10%, 50Hz |
System Features
-
World‑class efficiency – under 1 kWh/m³, saving hundreds of thousands of dollars yearly.
-
108 membranes – maximise flux while minimising fouling.
-
Standard energy recovery – not an add‑on, ensuring guaranteed low running costs.
-
Seismic‑rated container – reinforced for extreme weather and seismic zones.
Applications
Megacity supplementary water, petrochemical plants, national‑scale irrigation, large desalination hubs.
