Brackish Water Reverse Osmosis Treatment System 5000 GPD High TDS Removal 98 Percent Recovery FRP Membrane Housing 380V
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ECER |
| Certification: | ISO 9001:2015, CE |
| Model Number: | BWRO-5000G-FRP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 4200-6800 / Set |
| Packaging Details: | Reinforced wooden crate with desiccant packs, export-grade seaworthy packaging |
| Delivery Time: | 20-30 working days after deposit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 40 Sets per Month |
|
Detail Information |
|||
| Capacity: | 5000 GPD (19 M³/day) | Feed Water Type: | Brackish / Well Water |
|---|---|---|---|
| Frame Material: | SS304 Stainless Steel | Membrane Housing: | FRP (Fiber Reinforced Plastic) |
| Membrane Type: | BW30-4040 High Rejection | Membrane Quantity: | 8 Pcs |
| Recovery Rate: | 65-75% | Desalination Rate: | ≥ 98% |
| Inlet TDS: | ≤ 5000 Ppm | Outlet TDS: | ≤ 100 Ppm |
| Pretreatment: | Sand Filter + Antiscalant Dosing + Softener | Control Mode: | PLC With HMI Touchscreen |
| Power Supply: | 380V 50Hz 3-Phase | High Pressure Pump: | Grundfos CR Series |
| Highlight: | Brackish water reverse osmosis system 5000 GPD,High TDS removal RO system 98% recovery,FRP membrane housing reverse osmosis 380V |
||
Product Description

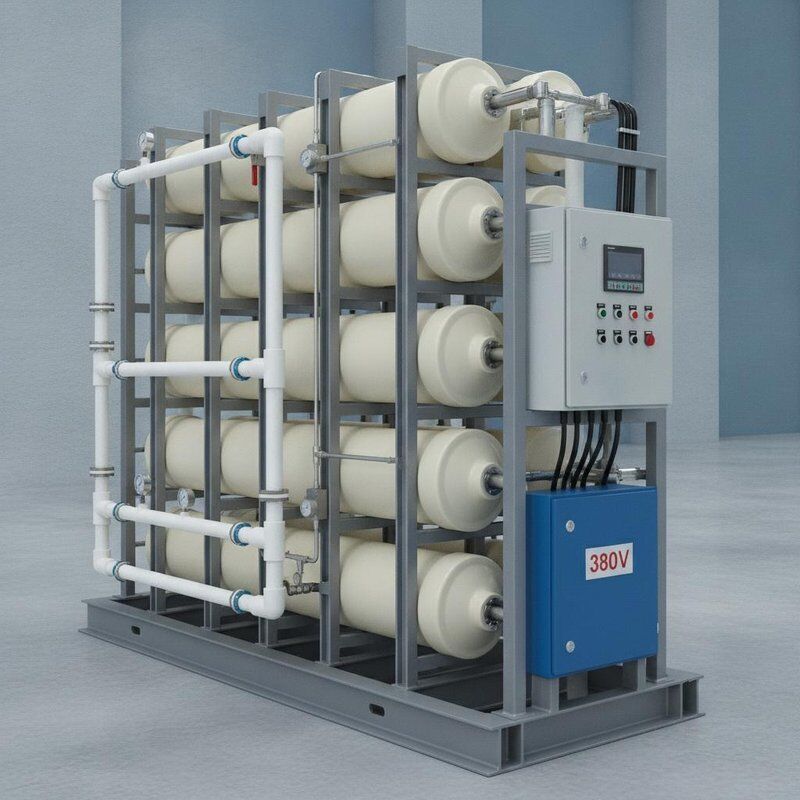

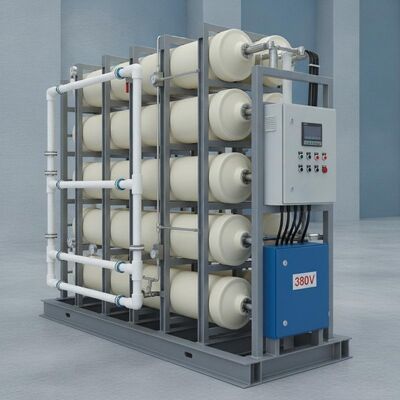

Brackish Water Reverse Osmosis Treatment System 5000 GPD
This 5000 GPD brackish water reverse osmosis treatment system is purpose-built for challenging source water conditions with high salinity and TDS levels up to 5000 ppm. Featuring 98 percent TDS removal rate, corrosion-resistant FRP membrane housings, and a heavy-duty pretreatment train, this system reliably converts brackish well water, surface water, and industrial wastewater into high-quality permeate suitable for drinking, irrigation, and process applications.
Key Features
- 5000 GPD Brackish Water Capacity: Processes 19 cubic meters of brackish source water daily with consistent output quality, even under variable feed water conditions.
- 98% TDS Removal Rate: High-rejection BW30-4040 membranes achieve industry-leading desalination performance, reducing inlet TDS from 5000 ppm to below 100 ppm in a single pass.
- FRP Membrane Housing: Fiber reinforced plastic pressure vessels provide superior corrosion resistance compared to stainless steel, ensuring long service life with brackish and saline water.
- Heavy-Duty Pretreatment: Sand filter, automatic antiscalant dosing system, and water softener work sequentially to prevent membrane scaling, fouling, and biological growth.
- Grundfos CR High-Pressure Pump: Premium Danish-engineered multistage centrifugal pump delivers reliable high-pressure operation with best-in-class energy efficiency.
- PLC Touchscreen Control: 7-inch HMI touchscreen with real-time conductivity, flow rate, and pressure monitoring, plus one-touch start/stop and automatic fault diagnostics.
Technical Specifications
| Model | BWRO-5000G-FRP |
| Capacity | 5000 GPD (19 m³/day) |
| Feed Water Type | Brackish / Well Water |
| Frame Material | SS304 Stainless Steel |
| Membrane Housing | FRP (Fiber Reinforced Plastic) |
| Membrane Type | BW30-4040 High Rejection |
| Membrane Quantity | 8 pcs (4-inch x 40-inch) |
| Recovery Rate | 65-75% |
| Desalination Rate | ≥ 98% |
| Inlet TDS | ≤ 5000 ppm |
| Outlet TDS | ≤ 100 ppm |
| Pretreatment | Sand Filter + Antiscalant Dosing + Softener |
| Control Mode | PLC with HMI Touchscreen |
| Power Supply | 380V 50Hz 3-Phase |
| High Pressure Pump | Grundfos CR Series |
Applications
- Brackish well water desalination for remote communities and farms
- Agricultural irrigation water quality improvement
- Industrial process water from saline groundwater sources
- Mining camp and oil field potable water supply
- Wastewater reuse and zero liquid discharge pretreatment
Each system ships with complete factory test report, water analysis consultation, and on-site commissioning support available.
