100TPD Containerized Reverse Osmosis System in 20ft ISO Container for Emergency Relief Water Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF/ISO 9001/CSC Container |
| Model Number: | FRO-Container-100TPD-20ft |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Self-Contained ISO Container (No Additional Packaging Required) |
| Delivery Time: | 45~60 days |
| Payment Terms: | T/T,L/C,Western Union |
| Supply Ability: | 10 set per month |
|
Detail Information |
|||
| Highlight: | Containerized Mobile RO System,20ft ISO Container RO Plant,Plug Play Water Treatment |
||
|---|---|---|---|
Product Description

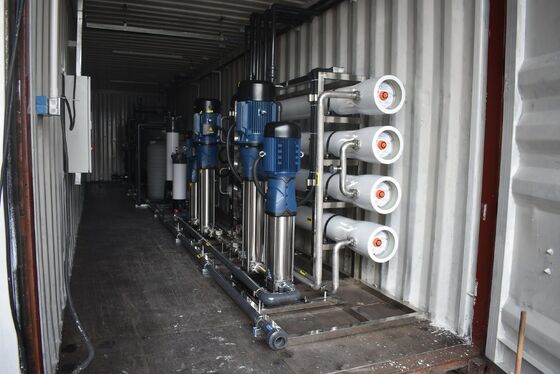

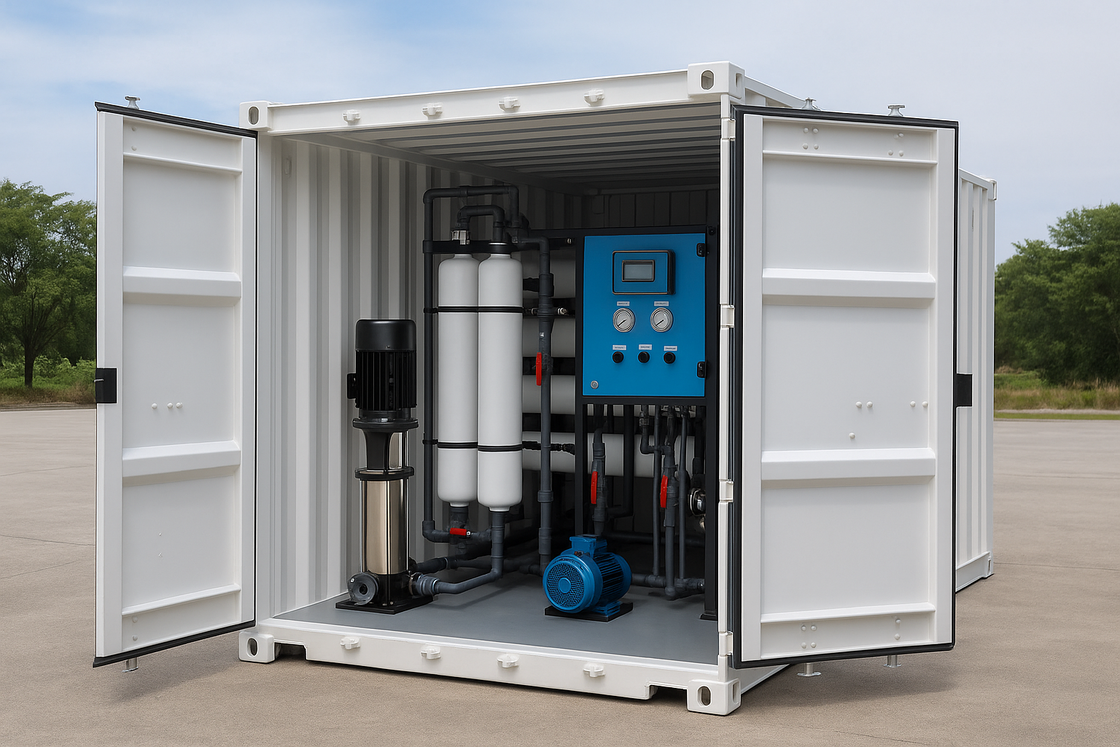

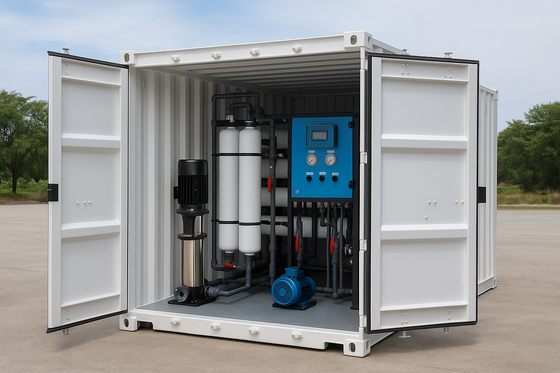

Containerized Mobile Reverse Osmosis Water Treatment System 100TPD 20ft ISO Plug Play Emergency Relief
The FRO-Container Series is the ultimate solution for rapid deployment water treatment in the world's most challenging environments. Housed within a standard CSC-certified 20ft ISO shipping container, this fully self-contained 100TPD reverse osmosis plant arrives on site ready for operation with only external power, feed water, and discharge connections required. The containerized format eliminates the need for permanent building infrastructure, enables transportation by standard truck, rail, or ship, and provides inherent weather protection and security for all process equipment. From emergency disaster response and humanitarian relief operations to remote mining exploration camps and military forward operating bases, the FRO-Container delivers reliable drinking water production within hours of arrival, not weeks.
Key Features
- Standard ISO Container Housing: The 20ft CSC-certified shipping container with corner castings provides immediate compatibility with global logistics infrastructure including container ships, flatbed trucks, rail cars, and standard container handling equipment. Integrated forklift pockets offer additional handling flexibility at sites without crane access.
- Complete Plug-and-Play Integration: All process equipment, electrical panels, chemical dosing systems, instrumentation, lighting, and climate control are pre-installed and factory-tested within the container. External connections utilize industrial Camlok quick-connect fittings for feed water inlet, permeate outlet, concentrate discharge, and chemical drain, enabling setup in under 2 hours with basic tools.
- Grundfos VFD-Controlled Pump System: The multi-stage SS316L high-pressure pump with integrated variable frequency drive automatically adjusts motor speed to maintain constant permeate flow despite fluctuating feed water temperature and TDS, while also providing soft-start capability to reduce inrush current on generator-powered installations common in remote deployments.
- Climate-Controlled Interior: A 12,000 BTU explosion-proof air conditioning unit maintains internal ambient temperature between 18-30°C regardless of external conditions ranging from -10°C to 50°C, ensuring optimal membrane performance and protecting sensitive electronic components from heat stress. An automatic exhaust fan with louvers provides additional ventilation during high-humidity conditions.
- Comprehensive Safety Systems: The container is equipped with a combustible gas detector with automatic alarm and ventilation interlock, emergency stop buttons at both entry and operator panel, a wall-mounted dry chemical fire extinguisher, an emergency eye wash station, non-slip aluminum floor decking, and photoluminescent exit path marking, meeting international HSE standards for occupied enclosed spaces.
- Remote Monitoring Capability: An integrated 4G industrial router with VPN provides secure remote access to the PLC for operational monitoring, alarm notifications, and parameter adjustments from anywhere in the world, enabling centralized oversight of multiple containerized units deployed across different locations by a single operations team.
- Pre-Treatment and Chemical Systems: The container includes a multimedia filter, activated carbon filter, anti-scalant dosing system with 200L chemical storage tank, 5-micron cartridge filter bank, and sodium hypochlorite post-chlorination system for residual disinfection, all installed within the container footprint with bunded chemical containment to prevent environmental spills.
Technical Specifications
| Model | FRO-Container-100TPD-20ft |
| Permeate Flow Rate | 100,000 L/D (4,167 L/h, 26,400 GPD) |
| Recovery Rate | 65~75% (Adjustable) |
| Feed Water TDS | ≤ 3,000 ppm |
| Nominal Salt Rejection | ≥ 99.0% |
| Membrane Configuration | 2:1 Array, 8 * 8040 Elements, FRP Housings (300 psi) |
| Container Dimensions (L*W*H) | 6,058 * 2,438 * 2,591 mm (20ft ISO) |
| Operating Weight | Approx. 8,500 kg |
| Shipping Weight | Approx. 9,500 kg |
| Operating Pressure | 10~16 bar |
| Power Requirement | 380~480V, 3PH, 50/60Hz, 40 kW |
| Climate Control | 12,000 BTU A/C + Exhaust Fan |
| Ambient Temperature Range | -10°C to +50°C (Optional Insulation: -30°C to +55°C) |
| Feed Water Temperature | 5~40°C |
| Chemical Storage | Anti-Scalant 200L + NaOCl 100L (Bunded) |
| Entry | Side Access Personnel Door with Panic Bar |
Applications
The FRO-Container Series is engineered for situations where speed of deployment, mobility, and self-sufficiency are paramount. Primary applications include:
- Humanitarian emergency water supply following natural disasters such as earthquakes, floods, and hurricanes where municipal infrastructure is compromised
- Military field operations requiring potable water production from local surface or groundwater sources without fixed-base dependency
- Remote mining and oil exploration camps where construction of permanent water treatment buildings is economically unviable
- Temporary construction site water supply for large infrastructure projects with 12-36 month durations
- Island resort and coastal community water supply where container transport by barge simplifies logistics
- Rapid response industrial water treatment during plant shutdowns or capacity expansions
- Mobile demonstration or pilot unit for evaluating water treatment feasibility at new project sites before committing to permanent plant construction
Multiple units can be deployed in parallel for higher capacity requirements, with centralized monitoring for fleet management.
Packaging & Quality Assurance
The FRO-Container is its own packaging. Each unit undergoes a complete factory acceptance test including 72-hour continuous wet testing with synthetic brackish water, electrical system verification under full load, HVAC performance validation across temperature range, and container structural integrity inspection per CSC requirements. All process equipment is permanently installed and secured for transport, with vibration-dampening mounts on rotating equipment and transport brackets on large vessels.
The container ships with a comprehensive spare parts kit including membrane O-rings, cartridge filters, chemical dosing tubing, fuses, and instrument calibration solutions. Documentation provided includes container CSC safety approval plate, electrical single-line diagram, P&ID drawings, equipment manuals, maintenance schedule, and commissioning procedure.
Optional on-site commissioning and operator training by our field service engineers is available worldwide. The 1-year comprehensive warranty covers all installed equipment, with extended warranty and preventive maintenance service agreements available for long-term operational assurance in mission-critical deployments.
