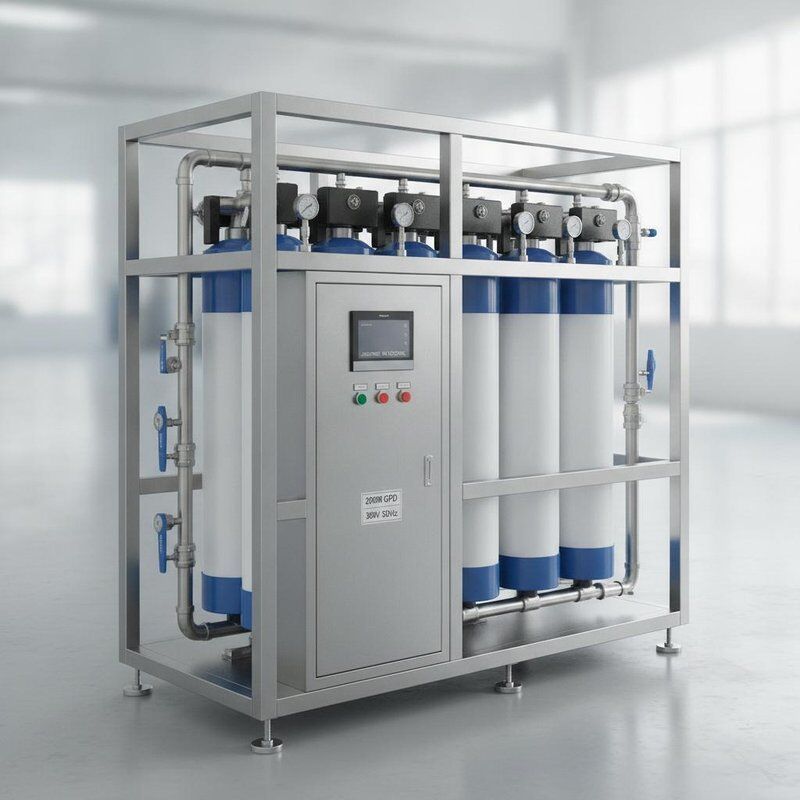

Industrial Reverse Osmosis Water Treatment System 20000 GPD SS316L Frame Automatic TDS Control 380V 50Hz
Product Details:
| Place of Origin: | Guangdong, China |
| Brand Name: | ECER |
| Certification: | ISO 9001:2015, CE |
| Model Number: | RO-20000G-SS316L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | USD 8500-12500 / Set |
| Packaging Details: | Wooden case with moisture-proof film, export-grade packaging for container shipment |
| Delivery Time: | 15-25 working days after deposit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 Sets per Month |
|
Detail Information |
|||
| Capacity: | 20000 GPD (75 M³/day) | Frame Material: | SS316L Stainless Steel |
|---|---|---|---|
| Membrane Type: | BW30-400 FRP | Membrane Quantity: | 12 Pcs |
| Recovery Rate: | 65-75% | Desalination Rate: | ≥ 97% |
| Inlet TDS: | ≤ 2000 Ppm | Outlet TDS: | ≤ 50 Ppm |
| Pretreatment: | Sand Filter + Carbon Filter + Softener | Control Mode: | PLC Automatic With TDS Monitor |
| Power Supply: | 380V 50Hz 3-Phase | Pipe Material: | SS304 / UPVC |
| Highlight: | Industrial reverse osmosis water treatment system 20000 GPD,SS316L frame reverse osmosis system,Automatic TDS control RO system |
||
Product Description
Industrial Reverse Osmosis Water Treatment System 20000 GPD
This 20000 GPD industrial reverse osmosis water treatment system is engineered for large-scale water purification requirements in manufacturing facilities, bottling plants, and municipal water treatment stations. Built with a robust SS316L stainless steel frame, the system delivers exceptional corrosion resistance and long-term operational reliability even in demanding environments.
Key Features
- 20000 GPD High Capacity: Produces up to 75 cubic meters of purified water per day, meeting the demands of large-scale industrial operations.
- SS316L Stainless Steel Frame: Premium corrosion-resistant construction ensures durability in harsh chemical and high-humidity conditions.
- Automatic TDS Control Panel: PLC-based intelligent controller with real-time TDS monitoring, automatic flushing, and fault alarm functions for unattended operation.
- High-Efficiency RO Membranes: Equipped with 12 pieces of BW30-400 FRP membranes achieving ≥97% desalination rate and 65-75% recovery rate.
- Complete Pretreatment System: Integrated sand filter, carbon filter, and water softener protect RO membranes and extend service life.
- 380V 50Hz 3-Phase Power: Standard industrial power configuration with energy-efficient high-pressure pump for optimized operating costs.
Technical Specifications
| Model | RO-20000G-SS316L |
| Capacity | 20000 GPD (75 m³/day) |
| Frame Material | SS316L Stainless Steel |
| Membrane Type | BW30-400 FRP |
| Membrane Quantity | 12 pcs (4-inch x 40-inch) |
| Recovery Rate | 65-75% |
| Desalination Rate | ≥ 97% |
| Inlet TDS | ≤ 2000 ppm |
| Outlet TDS | ≤ 50 ppm |
| Pretreatment | Sand Filter + Carbon Filter + Softener |
| Control Mode | PLC Automatic with TDS Monitor |
| Power Supply | 380V 50Hz 3-Phase |
| Pipe Material | SS304 / UPVC |
Applications
- Industrial process water for electronics, chemical, and textile manufacturing
- Beverage and bottled water production lines
- Municipal drinking water purification stations
- Boiler feed water treatment for power plants
- Large-scale commercial building water supply systems
All systems undergo rigorous factory testing before shipment. Custom configurations available upon request.
