Modular Design MBR Curtain Membranes For Landfill And Leachate Treatment For Garbage
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | MBR-N-CO-PVDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Model Name: | MBR-N-CO-PVDF | Core Membrane Material: | CO-PVDF-reinforced PVDF Material With Lining |
|---|---|---|---|
| Retention Rate: | 0.9458 | Color: | As Show |
| Filtering Precision(μm): | 0.1 | Breaking Force(cN): | >20000 |
| Socket At Both Ends (DN): | 32 | Main Advantages: | Modular Design |
| Main Application: | Landfill And Leachate Treatment For Garbage | Surface Hydrophilicity: | 30~66° |
| Highlight: | Leachate Treatment MBR Membranes,Landfill MBR Membranes,Modular Design MBR Membranes |
||
Product Description
Stable Chemical Properties MBR Curtain Membranes Rural integrated sewage treatment
MBR membranes are mainly divided into four types according to their structure: hollow fiber membranes, flat membranes, ceramic membranes, and tubular membranes.
Hollow fiber membrane (also known as curtain membrane) and flat membrane are collectively referred to as "organic membrane", and the main material is PVDF (polyvinylidene fluoride). Now there is a new PTFE material, which has a more uniform pore size distribution when pulling the film, known as the "plastic king".
Ceramic film and organic flat film are collectively referred to as "flat film". Ceramic film has excellent chemical stability and can withstand acid, alkali, organic solvents, and high temperatures; The advantages of narrow pore size distribution and high separation efficiency. The main materials of ceramic film are aluminum oxide, titanium oxide, and silicon oxide. The prospects are very promising.
Organic tubular membrane, as a form of membrane element, is suitable for membrane separation technologies such as ultrafiltration, microfiltration, and even nanofiltration. Its advantages are wide flow channels, turbulent flow of feed solution inside the tube, and low precision requirements for pretreatment of feed solution. Tube type membranes are easy to clean, and can be cleaned not only with chemical reagents, but also with mechanical and physical scrubbing methods. The pressure loss of tubular membrane modules is small, so their flow channels are long (up to 48 meters in series) and have high filtration efficiency.

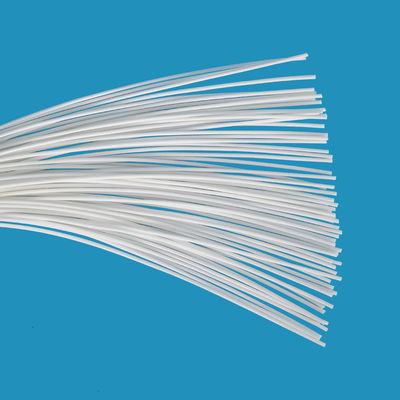

MBR membrane (reinforced PVDF membrane)
Highlight: Internal aeration, to ensure sufficient vibration of the film filaments, and strengthen the air-water scrubbing effect

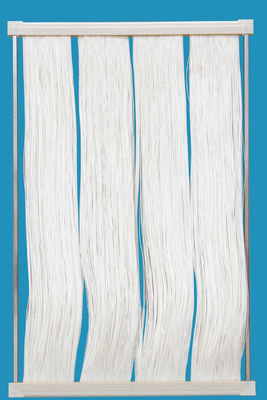

Model of reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
Model name: MBR-N-CO-PVDF
MBR——MBR membrane
N——membrane area number
CO-PVDF-reinforced PVDF material with lining
Example: MBR-10-CO-PVDF: 10 square meters with an MBR membrane lined with PVDF material
Performance parameters of lined reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
| Membrane module model | MBR-8-CO-PVDF | MBR-10-CO-PVDF | MBR-15-CO- PVDF | |
| Component parameters | Membrane material and technology | PVDF material (reinforced with woven fiber lining)—NIPS process | ||
| Effective membrane area (㎡) | 8 | 10 | 15 | |
| Average pore diameter (μm) | 0.05 | |||
| Component patented design | membrane aeration-enhanced anti-pollution design | |||
| Module size | Total length × total width (mm) | 1050×645 | 1550×645 | 1550×645 |
| Number of membrane filaments | 1600 | 1200 | 1800 | |
| Interface size | Socket at both ends (DN) | 32 | ||
| Component connection | PE hose (mm) | 14 | ||
| Conditions of use | Filtration method | Negative pressure suction filtration | ||
| Maximum trans-membrane pressure difference (MPa) | -0.08 | |||
| Applicable temperature range (℃) | 5～45 | |||
| Long-term tolerant pH range | 2～13 | |||
| Average aeration volume of components (Nm³/h) | 3-5 | 4-6 | 6-9 | |
| Recommended sludge concentration (MLSS) | 6000～10000 | |||
| 25℃ design flux | 14～22 | |||
| The recommended operating cycle of the components | 8 minutes for water production on every 2 minutes stop | |||
|
1. All technical parameters in the table are factory inspection values under standard inspection conditions. 2. The production water flow in the table refers to the actual production water design flow when the product is used for MBR technology to treat sewage. |
||||
High-strength lining MBR membrane module (MBR membrane) is currently the core filtration membrane module that is more suitable for MBR membrane bioreaction systems. The reinforced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (with MBR membrane lining) has advanced structure and superior performance (patent name: anti-blocking and high aeration efficiency hollow limit curtain membrane module, utility model Patent number: ZL 2017 2015 7728.4), mainly composed of reinforced polyvinylidene fluoride hollow fiber membrane, air inlet pipe, internal aeration pipe and water outlet pipe. Unique internal aeration structure (patented technology)
The reinforced PVDF curtain membrane with lining is composed of air inlet pipe, outlet pipe, internal aeration pipe and reinforced type with lining
Composed of PVDF hollow fiber membranes, the structure of the built-in aeration tube greatly improves the air scrubbing effect of the curtain membrane during use, which is beneficial to the stability of membrane operation.

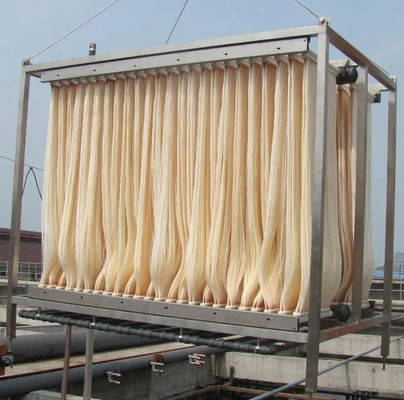

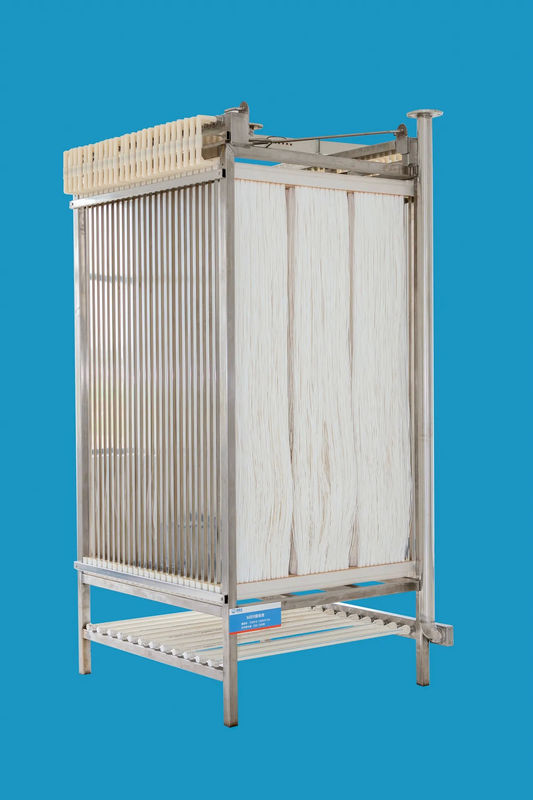

【Membrane module + SS304 Install Frame】
【Application field】
1. Upgrading of sewage treatment facilities and centralized treatment stations for rural sewage.
2. General wastewater: domestic wastewater, effluent from municipal sewage station.
3. High-concentration organic wastewater: food processing wastewater, breeding wastewater, slaughterhouse wastewater, etc.
4. Refractory industrial wastewater: printing and dyeing, chemical, pharmaceutical, coking wastewater, landfill leachate, etc.
