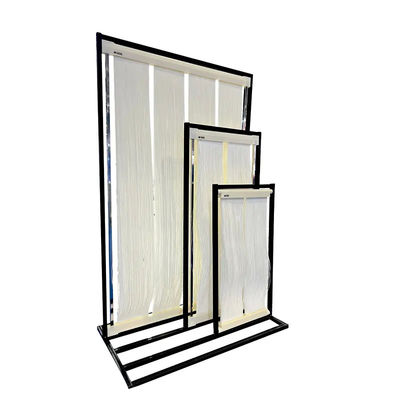

High Strength Curtain-Type MBR Membrane Module Reinforced PVDF For Sewage Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | MBR-8-CO-PVDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Model: | MBR-8-CO-PVDF | Product Material: | PVDF |
|---|---|---|---|
| Product Size: | 1050×645 Mm | Socket At Both Ends (DN): | 32 |
| Average Aeration Volume Of Components: | 3-5 Nm³/h | Recommended Sludge Concentration (MLSS): | 6000～10000 |
| 25℃ Design Flux: | 14～22 | Application: | Sewage Treatment |
| Highlight: | High Strength MBR Membrane Module,Sewage Treatment MBR Membrane Module,PVDF MBR Membrane Module |
||
Product Description
High Strength Curtain-Type MBR Membrane Module Reinforced PVDF For Sewage Treatment
MBR process characteristics:
- Efficient solid-liquid separation, its separation effect is much better than that of traditional sedimentation tanks, the effluent water quality is good, the effluent suspended solids and turbidity are close to zero, and it can be directly reused to realize sewage resource utilization.
- The efficient interception effect of the membrane allows the microorganisms to be completely intercepted in the bioreactor, realizing the complete separation of the reactor hydraulic retention time (HRT) and sludge age (SRT), and the operation control is flexible and stable.
- Since MBR combines the aeration tank and the secondary sedimentation tank of traditional sewage treatment into one, and replaces all the process facilities of the tertiary treatment, it can greatly reduce the floor space and save civil engineering investment.
- It is conducive to the interception and reproduction of nitrifying bacteria, and the system has high nitrification efficiency; by changing the operation mode, it can also have deammoniation and phosphorus removal functions.
- Since the sludge age can be very long, the degradation efficiency of difficult-to-degrade organic matter is greatly improved.
- The reactor operates under high volumetric load, low sludge load, and long sludge age, and the residual sludge production is extremely low. Since the sludge age can be infinitely long, zero sludge discharge can be achieved in theory.
MBR membrane (reinforced PVDF membrane)
Highlight: Internal aeration, to ensure sufficient vibration of the film filaments, and strengthen the air-water scrubbing effect
Model of reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
Model name: MBR-N-CO-PVDF
MBR——MBR membrane
N——membrane area number
CO-PVDF-reinforced PVDF material with lining
Example: MBR-10-CO-PVDF: 10 square meters with an MBR membrane lined with PVDF material
Performance parameters of lined reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
| Membrane module model | MBR-8-CO-PVDF | MBR-10-CO-PVDF | MBR-15-CO- PVDF | |
| Component parameters | Membrane material and technology | PVDF material (reinforced with woven fiber lining)—NIPS process | ||
| Effective membrane area (㎡) | 8 | 10 | 15 | |
| Average pore diameter (μm) | 0.05 | |||
| Component patented design | membrane aeration-enhanced anti-pollution design | |||
| Module size | Total length × total width (mm) | 1050×645 | 1550×645 | 1550×645 |
| Number of membrane filaments | 1600 | 1200 | 1800 | |
| Interface size | Socket at both ends (DN) | 32 | ||
| Component connection | PE hose (mm) | 14 | ||
| Conditions of use | Filtration method | Negative pressure suction filtration | ||
| Maximum trans-membrane pressure difference (MPa) | -0.08 | |||
| Applicable temperature range (℃) | 5～45 | |||
| Long-term tolerant pH range | 2～13 | |||
| Average aeration volume of components (Nm³/h) | 3-5 | 4-6 | 6-9 | |
| Recommended sludge concentration (MLSS) | 6000～10000 | |||
| 25℃ design flux | 14～22 | |||
| The recommended operating cycle of the components | 8 minutes for water production on every 2 minutes stop | |||
|
1. All technical parameters in the table are factory inspection values under standard inspection conditions. 2. The production water flow in the table refers to the actual production water design flow when the product is used for MBR technology to treat sewage. |
||||
High-strength lining MBR membrane module (MBR membrane) is currently the core filtration membrane module that is more suitable for MBR membrane bioreaction systems. The reinforced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (with MBR membrane lining) has advanced structure and superior performance (patent name: anti-blocking and high aeration efficiency hollow limit curtain membrane module, utility model Patent number: ZL 2017 2015 7728.4), mainly composed of reinforced polyvinylidene fluoride hollow fiber membrane, air inlet pipe, internal aeration pipe and water outlet pipe. Unique internal aeration structure (patented technology)
The reinforced PVDF curtain membrane with lining is composed of air inlet pipe, outlet pipe, internal aeration pipe and reinforced type with lining
Composed of PVDF hollow fiber membranes, the structure of the built-in aeration tube greatly improves the air scrubbing effect of the curtain membrane during use, which is beneficial to the stability of membrane operation.
【Membrane module + SS304 Install Frame】
【Application field】
1. Upgrading of sewage treatment facilities and centralized treatment stations for rural sewage.
2. General wastewater: domestic wastewater, effluent from municipal sewage station.
3. High-concentration organic wastewater: food processing wastewater, breeding wastewater, slaughterhouse wastewater, etc.
4. Refractory industrial wastewater: printing and dyeing, chemical, pharmaceutical, coking wastewater, landfill leachate, etc.
