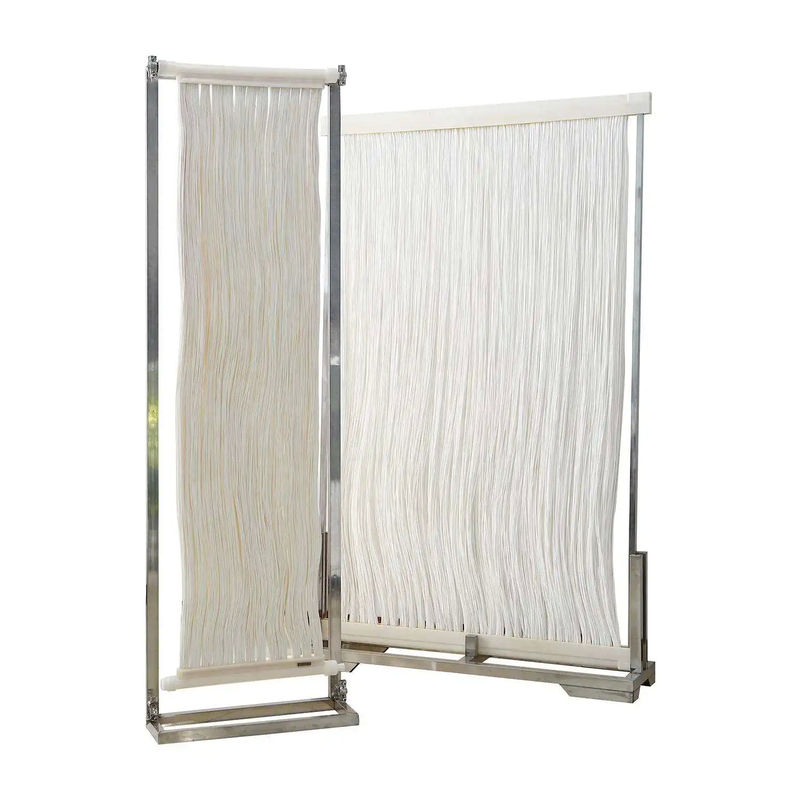

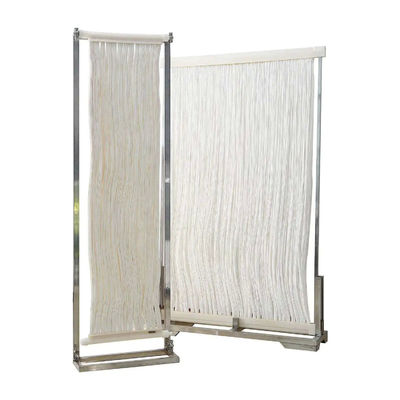

MBR Membranes Curtain Module PVDF With Stainless Steel Frame
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | MBR-10-CO-PVDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Model: | MBR-10-CO-PVDF | Product Material: | PVDF |
|---|---|---|---|
| Product Size: | 1550×645 Mm | Number Of Membrane Filaments: | 1200 |
| PE Hose (mm): | 14 | Filtration Method: | Negative Pressure Suction Filtration |
| Frame Material: | Stainless Steel Frame | ||
| Highlight: | MBR Membranes Curtain Module,PVDF Material MBR Membranes Curtain Module |
||
Product Description
MBR Membranes Curtain Module PVDF Material with Stainless Steel Frame
- High Flux, High Water Quality: The membrane utilized in this system is crafted from modified hydrophilic PVDF material and PET tube reinforced hollow fiber membrane, developed using the company's proprietary patented technology. With an impressive filtration accuracy of 0.06μm, the high porosity of the membrane ensures exceptional water flux rates. The effluent quality boasts a turbidity index of less than 0.3NTU, guaranteeing superior water clarity.
- High Membrane Fiber Peeling Strength: The system features robust membrane fiber peeling strength, enabling seamless operation of high-pressure backwashing procedures. With a bursting pressure capability exceeding 0.6MPa, the membrane demonstrates exceptional durability under challenging conditions.
- Versatile Components, Stackable Design, and Expandability: The system offers a high level of integration, allowing for customization through stackable and expandable components based on the user's specific requirements. This adaptable design enables flexible application in various settings, catering to a wide range of needs.
- Large Membrane Area per Unit Volume, Space-Efficient: By incorporating a live installation method, the system maximizes membrane area within a given volume, effectively conserving space. The ease of installation and disassembly further enhances its suitability for diverse spatial constraints.
Typical applications
- Municipal sewage treatment
- Industrial wastewater treatment
- Rural integrated sewage treatment equipment
- Food processing wastewater treatment
- Aquaculture wastewater treatment
- Landfill and garbage leachate treatment
MBR membrane (reinforced PVDF membrane)
Highlight: Internal aeration, to ensure sufficient vibration of the film filaments, and strengthen the air-water scrubbing effect
Model of reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
Model name: MBR-N-CO-PVDF
MBR——MBR membrane
N——membrane area number
CO-PVDF-reinforced PVDF material with lining
Example: MBR-10-CO-PVDF: 10 square meters with an MBR membrane lined with PVDF material
Performance parameters of lined reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
| Membrane module model | MBR-8-CO-PVDF | MBR-10-CO-PVDF | MBR-15-CO- PVDF | |
| Component parameters | Membrane material and technology | PVDF material (reinforced with woven fiber lining)—NIPS process | ||
| Effective membrane area (㎡) | 8 | 10 | 15 | |
| Average pore diameter (μm) | 0.05 | |||
| Component patented design | membrane aeration-enhanced anti-pollution design | |||
| Module size | Total length × total width (mm) | 1050×645 | 1550×645 | 1550×645 |
| Number of membrane filaments | 1600 | 1200 | 1800 | |
| Interface size | Socket at both ends (DN) | 32 | ||
| Component connection | PE hose (mm) | 14 | ||
| Conditions of use | Filtration method | Negative pressure suction filtration | ||
| Maximum trans-membrane pressure difference (MPa) | -0.08 | |||
| Applicable temperature range (℃) | 5～45 | |||
| Long-term tolerant pH range | 2～13 | |||
| Average aeration volume of components (Nm³/h) | 3-5 | 4-6 | 6-9 | |
| Recommended sludge concentration (MLSS) | 6000～10000 | |||
| 25℃ design flux | 14～22 | |||
| The recommended operating cycle of the components | 8 minutes for water production on every 2 minutes stop | |||
|
1. All technical parameters in the table are factory inspection values under standard inspection conditions. 2. The production water flow in the table refers to the actual production water design flow when the product is used for MBR technology to treat sewage. |
||||
High-strength lining MBR membrane module (MBR membrane) is currently the core filtration membrane module that is more suitable for MBR membrane bioreaction systems. The reinforced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (with MBR membrane lining) has advanced structure and superior performance (patent name: anti-blocking and high aeration efficiency hollow limit curtain membrane module, utility model Patent number: ZL 2017 2015 7728.4), mainly composed of reinforced polyvinylidene fluoride hollow fiber membrane, air inlet pipe, internal aeration pipe and water outlet pipe. Unique internal aeration structure (patented technology)
The reinforced PVDF curtain membrane with lining is composed of air inlet pipe, outlet pipe, internal aeration pipe and reinforced type with lining
Composed of PVDF hollow fiber membranes, the structure of the built-in aeration tube greatly improves the air scrubbing effect of the curtain membrane during use, which is beneficial to the stability of membrane operation.

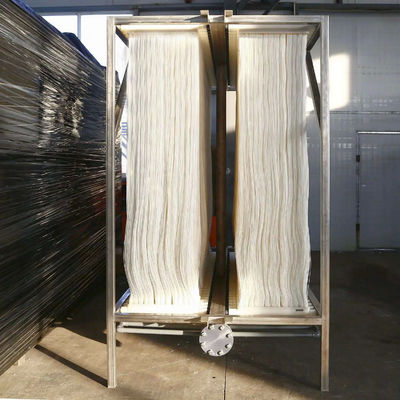

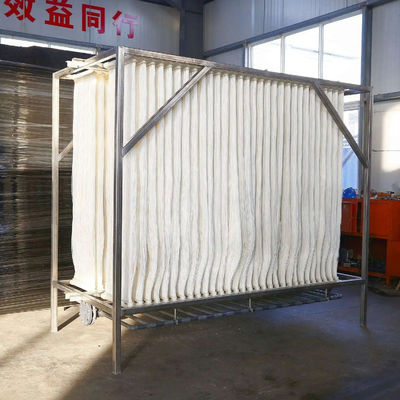

【Membrane module + SS304 Install Frame】
【Application field】
1. Upgrading of sewage treatment facilities and centralized treatment stations for rural sewage.
2. General wastewater: domestic wastewater, effluent from municipal sewage station.
3. High-concentration organic wastewater: food processing wastewater, breeding wastewater, slaughterhouse wastewater, etc.
4. Refractory industrial wastewater: printing and dyeing, chemical, pharmaceutical, coking wastewater, landfill leachate, etc.
