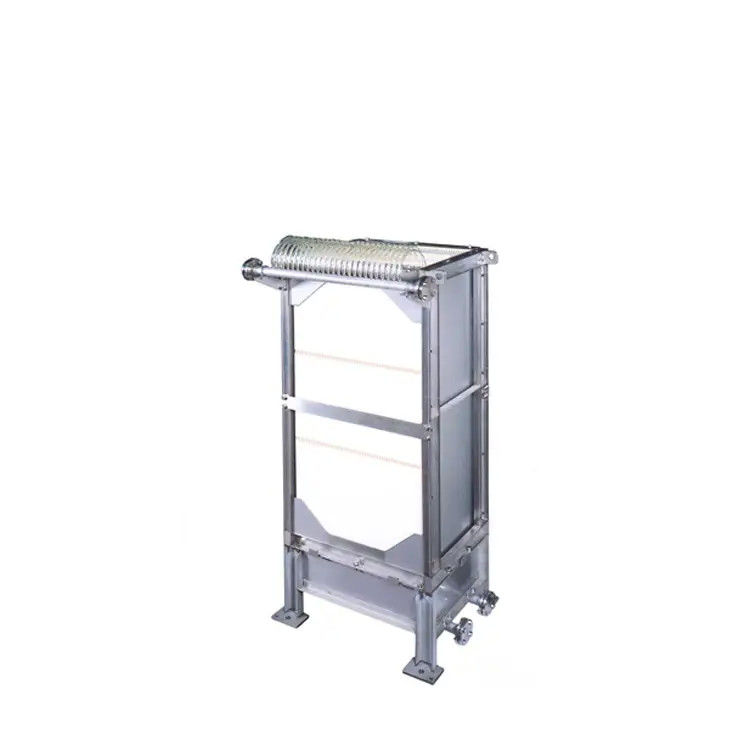

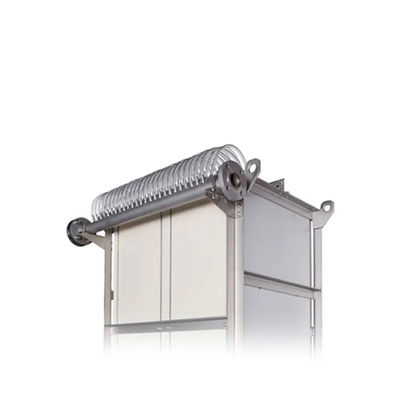

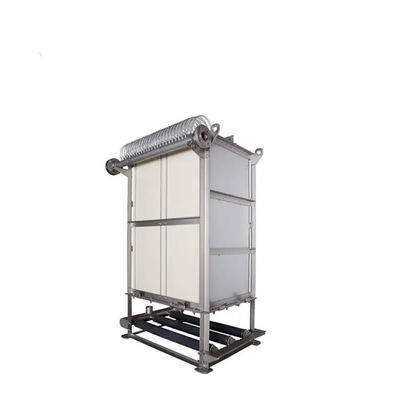

Domestic Sewage Treatment Hollow Fiber MBR Membranes With High Flux
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Flat sheet membrane |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Core Components: | PVDF Layer, Frame | Application Scope Of This Product: | Domestic Sewage Treatment |
|---|---|---|---|
| Product Name: | Flat Sheet Membrane | Product Performance: | Waterproof, Low Temperature Resistant, High Temperature Resistant |
| Membrane Type Of This Product: | Microporous Membrane | Membrane Pore Size: | 0.1-0.4um |
| Product Standard Flux: | 10-30L/m2.h | Product Certification: | CE |
| Product Function: | Removing COD BOD NH-N | Advantages: | High Flux |
| Highlight: | Hollow Fiber MBR Membranes,Domestic Sewage Treatment MBR Membranes,High Flux MBR Membranes |
||
Product Description
Domestic Sewage Treatment Hollow Fiber MBR Membranes with high flux
MBR Membrane Description:
Membrane Bioreactor (MBR) is a new type of wastewater treatment system which organically combines membrane separation technology and biological treatment technology. The membrane module replaces the end secondary sedimentation tank of the traditional biological treatment technology, maintains a high activated sludge concentration in the bioreactor, increases the organic load of the biological treatment, thereby reducing the footprint of the sewage treatment facility, and reduces the amount of residual sludge by maintaining a low sludge load.
Base plate material: ABS
Membrane pore size: 0.1-0.4um
Standard flux:10-30L/m2.h
Suggested flux: 15-25L/m2.h for normal daily sewage
pH range: 1-13
Aeration: 8-10L/m2.h
For different water qualities, there will be significant differences in their water production. Users should conduct sufficient experiments. This parameter is the initial filtration flux of a membrane element when using MBR membrane to treat municipal wastewater under suction vacuum conditions of 25 ℃ and -10KPa. The unit is L/㎡. d, which is not a guaranteed value.

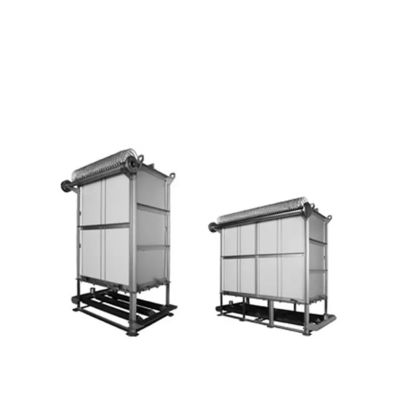

Membrane module size specifications
HF-100 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-100-50 | 50 | 20-30 | 912 | 700 | 1758 | 153 | 1688 | 535 | 713 |
| HF-100-80 | 80 | 32-48 | 1370 | 1170 | |||||
| HF-100-100 | 100 | 40-60 | 1674 | 1476 | |||||
| HF-100-120 | 120 | 48-72 | 1980 | 1780 |
HF-50 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-50-50 | 25 | 10-15 | 720 | 630 | 1040 | 153 | 970 | 600 | 585 |
| HF-50-80 | 40 | 16-24 | 1150 | 935 | |||||
| HF-50-100 | 50 | 20-30 | 1450 | 1170 |
Schematic diagram of HF-MBR membrane module installation pipeline
| serial number | project | illustrate |
| 1 | use | Used for the separation of activated sludge and other suspended impurities in raw water from water |
| 2 | Operation mode | Produced water from suction operation or water production from gravity flow operation |
| 3 | Aeration volume | 8-10L/㎡.min |
| 4 | Operating transmembrane pressure differential | ＜15KPa _ |
| 5 | Operating water temperature | 5-45 ℃ |
| 6 | Run PHvalue | 1-13 |
| 7 | Cleaning fluid injection pressure | <20 KPa |
|
8 |
Cleaning fluid preparation concentration |
When the membrane is organically contaminated, soak it in 0.5 % concentration NaClO solution for 4 to 6 hours. The cleaning solution preparation quantity is: 3 L / element; when the membrane is contaminated by oil or inorganic scaling, please refer to "Chemical cleaning of Membrane Modules" for details on the treatment method in section 8. |
