Stable Chemical Properties MBR Curtain Membranes Rural Integrated Sewage Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | MBR-N-CO-PVDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Model Name: | MBR-N-CO-PVDF | Core Membrane Material: | CO-PVDF-reinforced PVDF Material With Lining |
|---|---|---|---|
| Product Average Pore Diameter (μm): | 0.05 | Core Highlight: | Internal Aeration, To Ensure Sufficient Vibration Of The Film Filaments, And Strengthen The Air-water Scrubbing Effect |
| The Recommended Operating Cycle Of The Components: | 8 Minutes For Water Production On Every 2 Minutes Stop | Average Pore Diameter (μm): | 0.05 |
| Socket At Both Ends (DN): | 32 | Main Advantages: | Stable Chemical Properties |
| Main Application: | Rural Integrated Sewage Treatment | ||
| Highlight: | Rural integrated sewage treatment MBR Membranes,Stable Chemical Properties MBR Membranes |
||
Product Description
Stable Chemical Properties MBR Curtain Membranes Rural integrated sewage treatment

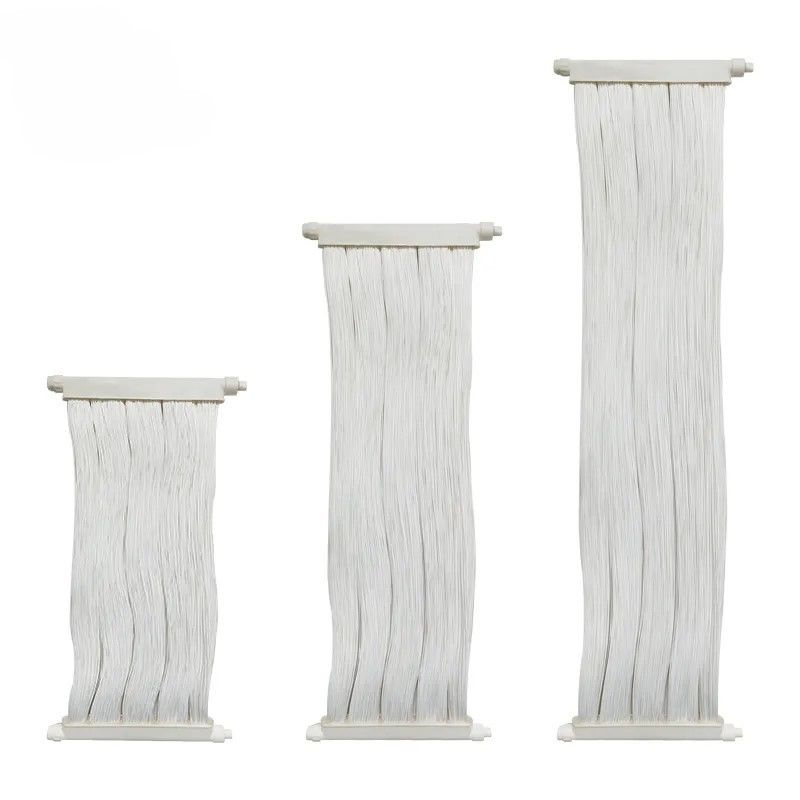

What is MBR curtain membrane?
MBR curtain membrane refers to MBR hollow fiber membrane. Because the appearance of hollow fiber membrane is similar to that of "door curtains" and other items, it is called curtain membrane. Hollow fiber membrane is mainly made of PVDF material, which has excellent antioxidant and anti pollution performance. It uses pressure as the filtration principle and is commonly used in the treatment of sewage, drinking water, and seawater desalination.
Working principle of MBR hollow fiber membrane:
The work of hollow fiber membranes is mainly based on filtration as the separation principle, with a filtration accuracy in the range of 0.005-0.01 μ m. During operation, asymmetric microporous structures and semi permeable membrane media are used, relying on the pressure difference on both sides of the membrane as the driving force to filter in a cross flow manner, allowing water to flow into the membrane module and filter impurities outside the membrane module. Hollow fiber membranes can effectively remove impurities such as particles, polymer organic substances, colloids, and bacterial bed layers in water, achieving the purpose of separation, classification, purification, and concentration.

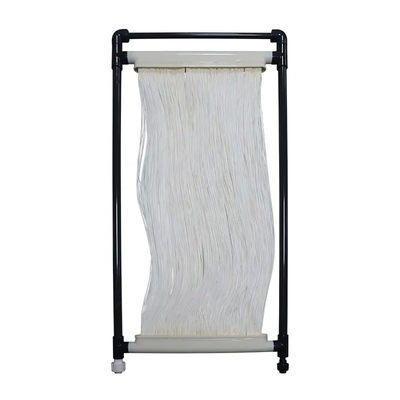

MBR membrane (reinforced PVDF membrane)
Highlight: Internal aeration, to ensure sufficient vibration of the film filaments, and strengthen the air-water scrubbing effect
Model of reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
Model name: MBR-N-CO-PVDF
MBR——MBR membrane
N——membrane area number
CO-PVDF-reinforced PVDF material with lining
Example: MBR-10-CO-PVDF: 10 square meters with an MBR membrane lined with PVDF material
Performance parameters of lined reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
| Membrane module model | MBR-8-CO-PVDF | MBR-10-CO-PVDF | MBR-15-CO- PVDF | |
| Component parameters | Membrane material and technology | PVDF material (reinforced with woven fiber lining)—NIPS process | ||
| Effective membrane area (㎡) | 8 | 10 | 15 | |
| Average pore diameter (μm) | 0.05 | |||
| Component patented design | membrane aeration-enhanced anti-pollution design | |||
| Module size | Total length × total width (mm) | 1050×645 | 1550×645 | 1550×645 |
| Number of membrane filaments | 1600 | 1200 | 1800 | |
| Interface size | Socket at both ends (DN) | 32 | ||
| Component connection | PE hose (mm) | 14 | ||
| Conditions of use | Filtration method | Negative pressure suction filtration | ||
| Maximum trans-membrane pressure difference (MPa) | -0.08 | |||
| Applicable temperature range (℃) | 5～45 | |||
| Long-term tolerant pH range | 2～13 | |||
| Average aeration volume of components (Nm³/h) | 3-5 | 4-6 | 6-9 | |
| Recommended sludge concentration (MLSS) | 6000～10000 | |||
| 25℃ design flux | 14～22 | |||
| The recommended operating cycle of the components | 8 minutes for water production on every 2 minutes stop | |||
|
1. All technical parameters in the table are factory inspection values under standard inspection conditions. 2. The production water flow in the table refers to the actual production water design flow when the product is used for MBR technology to treat sewage. |
||||
High-strength lining MBR membrane module (MBR membrane) is currently the core filtration membrane module that is more suitable for MBR membrane bioreaction systems. The reinforced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (with MBR membrane lining) has advanced structure and superior performance (patent name: anti-blocking and high aeration efficiency hollow limit curtain membrane module, utility model Patent number: ZL 2017 2015 7728.4), mainly composed of reinforced polyvinylidene fluoride hollow fiber membrane, air inlet pipe, internal aeration pipe and water outlet pipe. Unique internal aeration structure (patented technology)
The reinforced PVDF curtain membrane with lining is composed of air inlet pipe, outlet pipe, internal aeration pipe and reinforced type with lining
Composed of PVDF hollow fiber membranes, the structure of the built-in aeration tube greatly improves the air scrubbing effect of the curtain membrane during use, which is beneficial to the stability of membrane operation.

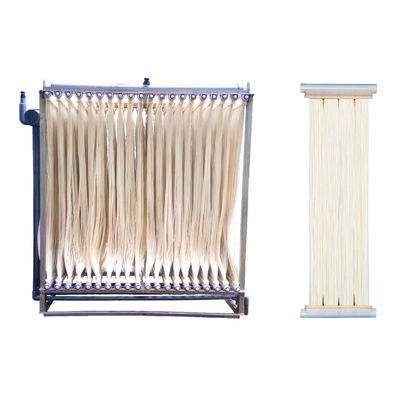

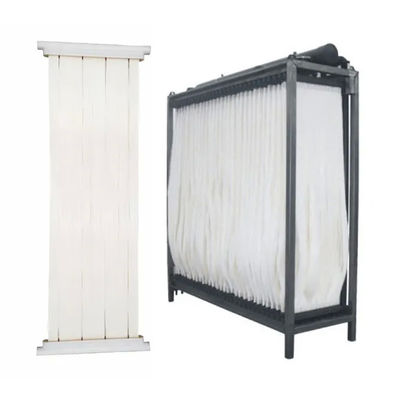

【Membrane module + SS304 Install Frame】

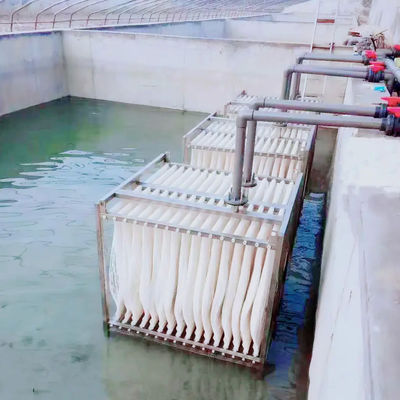

【Application field】
1. Upgrading of sewage treatment facilities and centralized treatment stations for rural sewage.
2. General wastewater: domestic wastewater, effluent from municipal sewage station.
3. High-concentration organic wastewater: food processing wastewater, breeding wastewater, slaughterhouse wastewater, etc.
4. Refractory industrial wastewater: printing and dyeing, chemical, pharmaceutical, coking wastewater, landfill leachate, etc.
