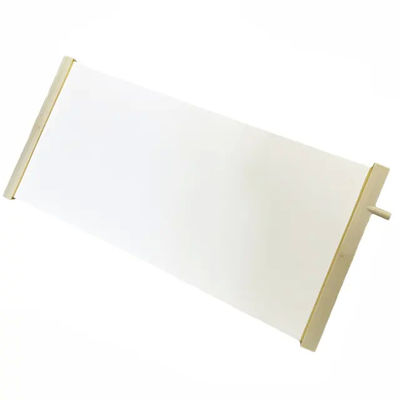

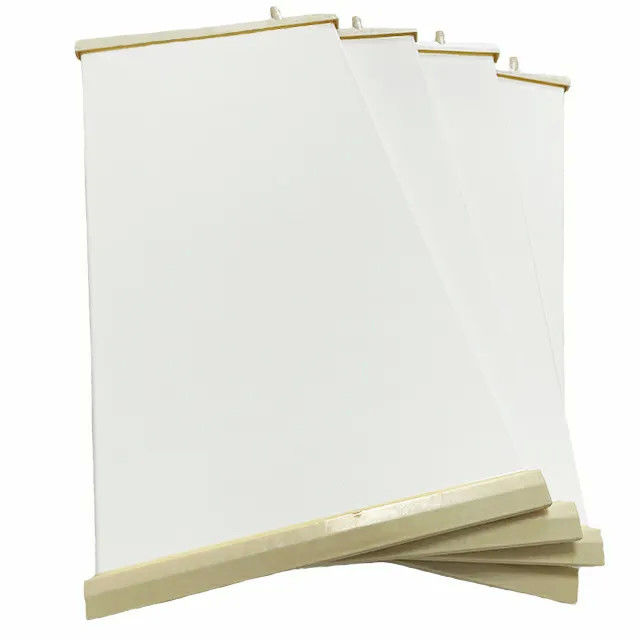

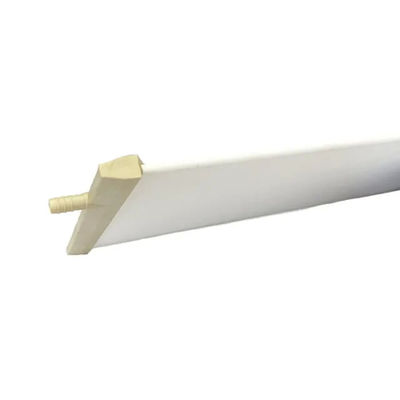

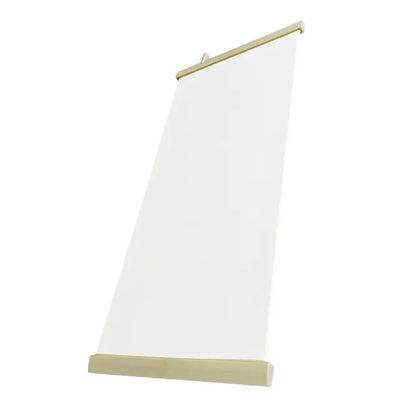

Flat Sheet MBR Membranes With High Water Output For Seawater Desalination
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Flat sheet membrane |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Product Material: | ABS | Product Application Scope: | Sewage Treatment |
|---|---|---|---|
| Product Component Styles: | Flat Sheet Membrane | Product Service Areas: | Industry, Municipal Administration And Other Fields |
| Product Performance: | Waterproof, Low Temperature Resistant, High Temperature Resistant | Membrane Type: | Microporous Membrane |
| Whether To Support Customized Processing: | Yes | Colour: | White |
| Highlight: | Seawater Desalination MBR Membranes,Flat Sheet MBR Membranes,High Water Output MBR Membranes |
||
Product Description
Flat Sheet MBR Membranes With High Quality Water Output For Seawater Desalination
Introduction of the Membran bioreactors(MBR)
Membrane bioreactor(MBR) applies to all water/wastewater/sewage treatment processes intergrateing a permselective membrane(microfiltration or ultrafiltration) with a biological reactor (activated sludge)process . All currectly avaliable commercial MBR process employ the membrane as a filter,separating and rejecting the solid materials developed by the biological process to produce a clarified and disinfected product water.

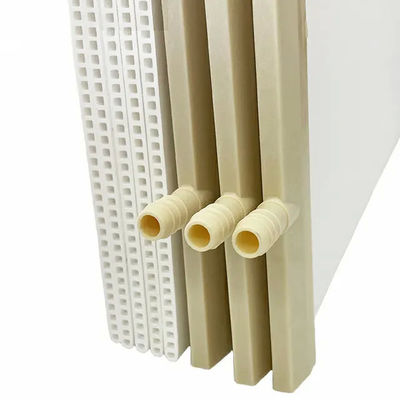

Base plate material: ABS
Membrane pore size: 0.1-0.4um
Standard flux:10-30L/m2.h
Suggested flux: 15-25L/m2.h for normal daily sewage
pH range: 1-13
Aeration: 8-10L/m2.h
For different water qualities, there will be significant differences in their water production. Users should conduct sufficient experiments. This parameter is the initial filtration flux of a membrane element when using MBR membrane to treat municipal wastewater under suction vacuum conditions of 25 ℃ and -10KPa. The unit is L/㎡. d, which is not a guaranteed value.

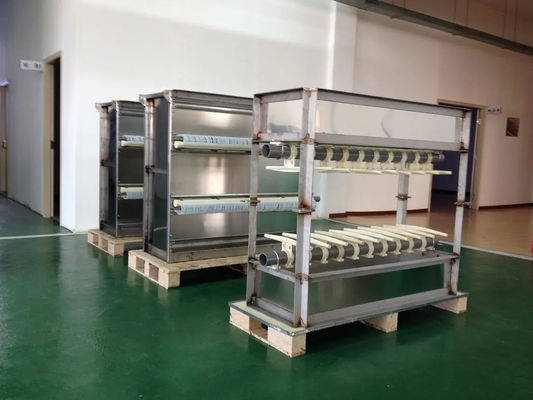

Membrane module size specifications
HF-100 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-100-50 | 50 | 20-30 | 912 | 700 | 1758 | 153 | 1688 | 535 | 713 |
| HF-100-80 | 80 | 32-48 | 1370 | 1170 | |||||
| HF-100-100 | 100 | 40-60 | 1674 | 1476 | |||||
| HF-100-120 | 120 | 48-72 | 1980 | 1780 |
HF-50 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-50-50 | 25 | 10-15 | 720 | 630 | 1040 | 153 | 970 | 600 | 585 |
| HF-50-80 | 40 | 16-24 | 1150 | 935 | |||||
| HF-50-100 | 50 | 20-30 | 1450 | 1170 |

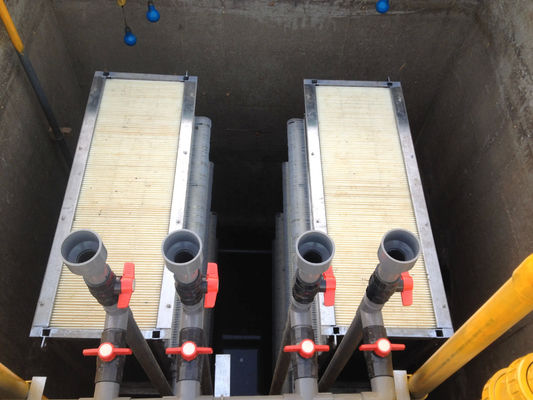

Schematic diagram of HF-MBR membrane module installation pipeline
| serial number | project | illustrate |
| 1 | use | Used for the separation of activated sludge and other suspended impurities in raw water from water |
| 2 | Operation mode | Produced water from suction operation or water production from gravity flow operation |
| 3 | Aeration volume | 8-10L/㎡.min |
| 4 | Operating transmembrane pressure differential | ＜15KPa _ |
| 5 | Operating water temperature | 5-45 ℃ |
| 6 | Run PHvalue | 1-13 |
| 7 | Cleaning fluid injection pressure | <20 KPa |
|
8 |
Cleaning fluid preparation concentration |
When the membrane is organically contaminated, soak it in 0.5 % concentration NaClO solution for 4 to 6 hours. The cleaning solution preparation quantity is: 3 L / element; when the membrane is contaminated by oil or inorganic scaling, please refer to "Chemical cleaning of Membrane Modules" for details on the treatment method in section 8. |
