Customizable Hollow Fiber Reinforced mbr treatment For Seawater Desalination Pretreatment

Customizable hollow fiber Reinforced for seawater desalination pretreatment MBR Membranes

Advantages:

1.MBR curtain membranes are usually made of PVDF material, which has stronger mechanical strength, and the tensile strength of the membrane wire exceeds 200N.

2.MBR curtain membranes adopt a double-skin structure, which can effectively remove most of the impurities in the water, and the removal effect is obvious.

3.MBR curtain membranes have excellent antioxidant and anti-pollution properties, can be used in sewage treatment, and have good hydrophilic properties and long service life.

4.MBR curtain membranes can be used in environments with high temperatures, and strong acids and strong alkalis have little effect on hollow fiber membranes, and have strong tolerance to oxidants.

5.MBR curtain membranes have very high filtration accuracy. Usually, the pore size of hollow fiber membranes is less than 0.1 microns, which can effectively filter impurities in water.

6.MBR curtain membranes use pressure as the filtration principle, with simple equipment design, simple workflow, convenient operation, easy control and maintenance.

7.MBR curtain membranes can operate under lower pressure conditions, but cannot work under high pressure environments.

MBR curtain membrane uses the selective permeability of the membrane to achieve biological enrichment in the aeration tank, greatly improving the efficiency of biological treatment. The sewage after biological treatment can be separated by the membrane to obtain cleaner effluent. MBR curtain membrane is an important technology for protecting the water environment and realizing sewage reuse.

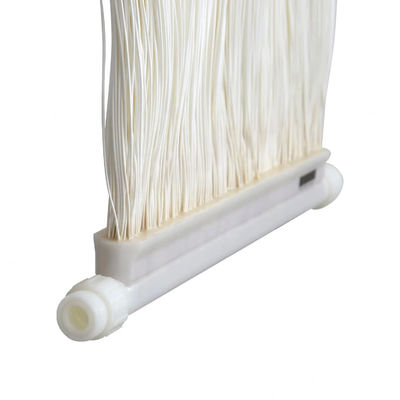

MBR membrane (reinforced PVDF membrane)

Highlight: Internal aeration, to ensure sufficient vibration of the film filaments, and strengthen the air-water scrubbing effect

Model of reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)

Model name: MBR-N-CO-PVDF

MBR——MBR membrane

N——membrane area number

CO-PVDF-reinforced PVDF material with lining

Example: MBR-10-CO-PVDF: 10 square meters with an MBR membrane lined with PVDF material

Performance parameters of lined reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)

High-strength lining MBR membrane module (MBR membrane) is currently the core filtration membrane module that is more suitable for MBR membrane bioreaction systems. The reinforced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (with MBR membrane lining) has advanced structure and superior performance (patent name: anti-blocking and high aeration efficiency hollow limit curtain membrane module, utility model Patent number: ZL 2017 2015 7728.4), mainly composed of reinforced polyvinylidene fluoride hollow fiber membrane, air inlet pipe, internal aeration pipe and water outlet pipe. Unique internal aeration structure (patented technology)

The reinforced PVDF curtain membrane with lining is composed of air inlet pipe, outlet pipe, internal aeration pipe and reinforced type with lining

Composed of PVDF hollow fiber membranes, the structure of the built-in aeration tube greatly improves the air scrubbing effect of the curtain membrane during use, which is beneficial to the stability of membrane operation.

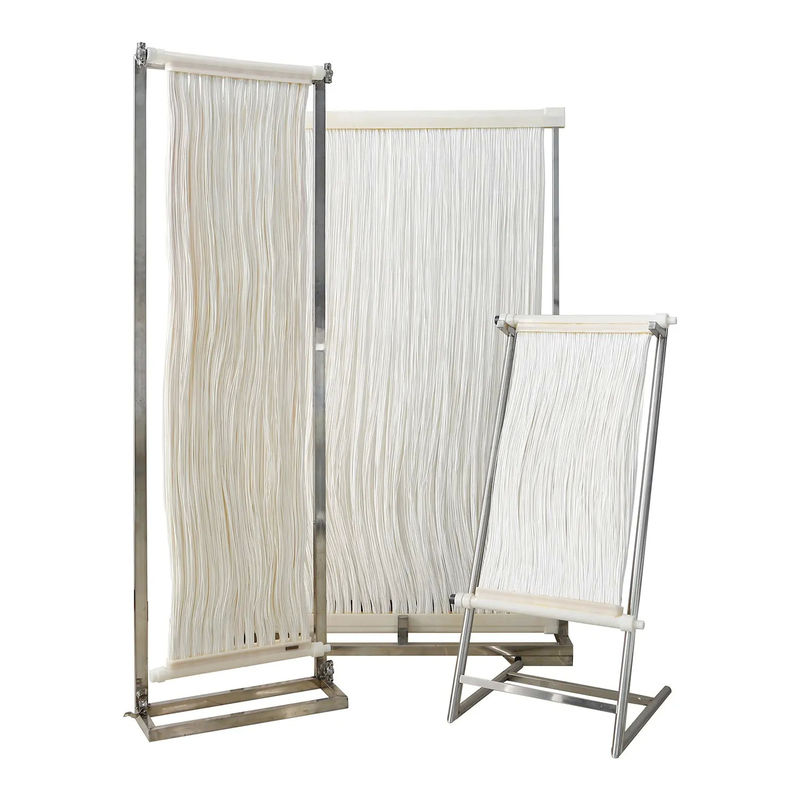

【Membrane module + SS304 Install Frame】

【Application field】

1. Upgrading of sewage treatment facilities and centralized treatment stations for rural sewage.

2. General wastewater: domestic wastewater, effluent from municipal sewage station.

3. High-concentration organic wastewater: food processing wastewater, breeding wastewater, slaughterhouse wastewater, etc.

4. Refractory industrial wastewater: printing and dyeing, chemical, pharmaceutical, coking wastewater, landfill leachate, etc.
