Mobile Sewage Treatment Plant Hollow Fiber MBR Membranes Bioreactor For Municipal Sewage
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | MBR membranes |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Filter Type: | Hollow Fiber MBR Membranes | Filter Method: | External Pressure |
|---|---|---|---|
| Target Customers: | Water | Operating PH Range: | 1-10 |
| Capability: | Low Temperature Resistance, Acid Resistance, Alkali Resistance | Filtration Accuracy: | High |
| MBR Membrane Application: | Municipal Sewage Treatment, Industrial Wastewater Treatment, Seawater Desalination, Etc. | How It Works: | Combination Of Physical Retention And Biodegradation |
| Highlight: | Mobile Sewage Treatment Plant mbr membranes,Municipal Sewage mbr membranes,mbr system wastewater treatment |
||
Product Description
Mobile Sewage Treatment Plant Hollow Fiber MBR Membranes Bioreactor For Municipal Sewage
MBR membrane has the following advantages:
① The effluent water quality is excellent and stable. It is reflected in the efficiency of solid-liquid separation. The solid suspended matter in the effluent can remain close to zero for a long time, and is not affected by factors such as sludge decomposition and sludge load in the short term;
② The reactor is more compact because it can withstand normal use with high sludge concentration, saves floor space, and does not require a secondary sedimentation tank system.
③ It is conducive to the cultivation of aerobic nitrifying bacteria and enhances the nitrification capacity of the aerobic regional system. It is reflected in the high efficiency of ammonia nitrogen removal and the long-term stability of the removal effect.
④ Complete separation of the hydraulic retention time of the reactor and the sludge retention time, making the operation control more flexible.
⑤ The microbial concentration in the reactor is high and the impact load resistance is strong. The sludge age is longer. Membrane separation makes the macromolecules in the sewage difficult to degrade components have enough residence time in the limited volume bioreactor, which greatly improves the degradation efficiency of difficult-to-degrade organic matter. The reactor operates under high volume load, low sludge load and long sludge age, which can effectively reduce sludge discharge.

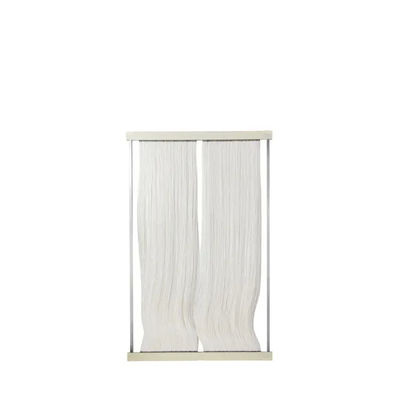

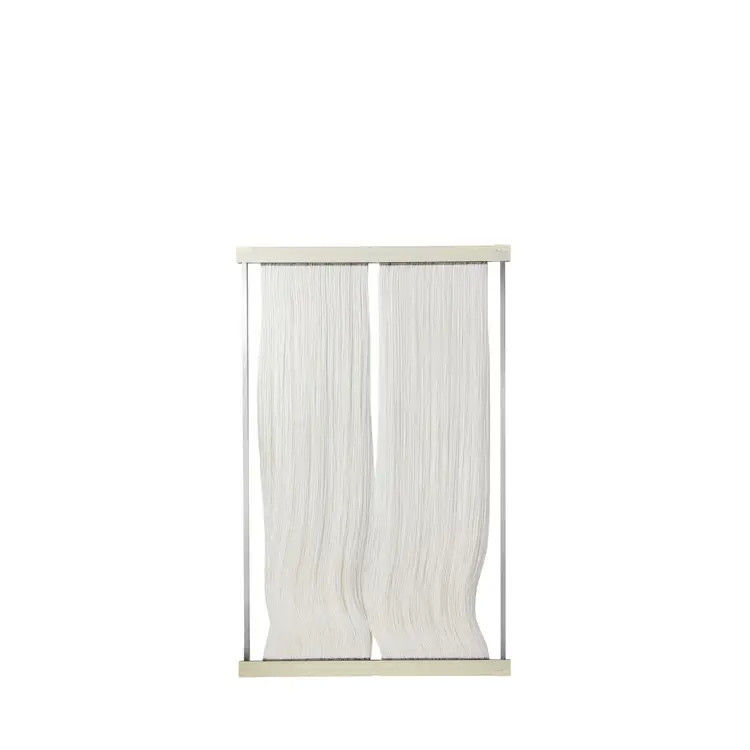

MBR membrane (reinforced PVDF membrane)
Highlight: Internal aeration, to ensure sufficient vibration of the film filaments, and strengthen the air-water scrubbing effect
Model of reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
Model name: MBR-N-CO-PVDF
MBR——MBR membrane
N——membrane area number
CO-PVDF-reinforced PVDF material with lining
Example: MBR-10-CO-PVDF: 10 square meters with an MBR membrane lined with PVDF material
Performance parameters of lined reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
| Membrane module model | MBR-8-CO-PVDF | MBR-10-CO-PVDF | MBR-15-CO- PVDF | |
| Component parameters | Membrane material and technology | PVDF material (reinforced with woven fiber lining)—NIPS process | ||
| Effective membrane area (㎡) | 8 | 10 | 15 | |
| Average pore diameter (μm) | 0.05 | |||
| Component patented design | membrane aeration-enhanced anti-pollution design | |||
| Module size | Total length × total width (mm) | 1050×645 | 1550×645 | 1550×645 |
| Number of membrane filaments | 1600 | 1200 | 1800 | |
| Interface size | Socket at both ends (DN) | 32 | ||
| Component connection | PE hose (mm) | 14 | ||
| Conditions of use | Filtration method | Negative pressure suction filtration | ||
| Maximum trans-membrane pressure difference (MPa) | -0.08 | |||
| Applicable temperature range (℃) | 5～45 | |||
| Long-term tolerant pH range | 2～13 | |||
| Average aeration volume of components (Nm³/h) | 3-5 | 4-6 | 6-9 | |
| Recommended sludge concentration (MLSS) | 6000～10000 | |||
| 25℃ design flux | 14～22 | |||
| The recommended operating cycle of the components | 8 minutes for water production on every 2 minutes stop | |||
|
1. All technical parameters in the table are factory inspection values under standard inspection conditions. 2. The production water flow in the table refers to the actual production water design flow when the product is used for MBR technology to treat sewage. |
||||

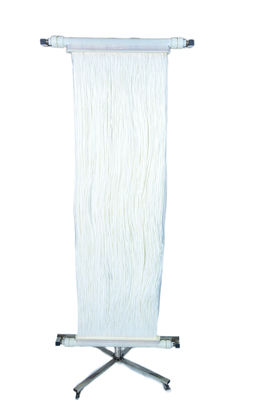

High-strength lining MBR membrane module (MBR membrane) is currently the core filtration membrane module that is more suitable for MBR membrane bioreaction systems. The reinforced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (with MBR membrane lining) has advanced structure and superior performance (patent name: anti-blocking and high aeration efficiency hollow limit curtain membrane module, utility model Patent number: ZL 2017 2015 7728.4), mainly composed of reinforced polyvinylidene fluoride hollow fiber membrane, air inlet pipe, internal aeration pipe and water outlet pipe. Unique internal aeration structure (patented technology)
The reinforced PVDF curtain membrane with lining is composed of air inlet pipe, outlet pipe, internal aeration pipe and reinforced type with lining

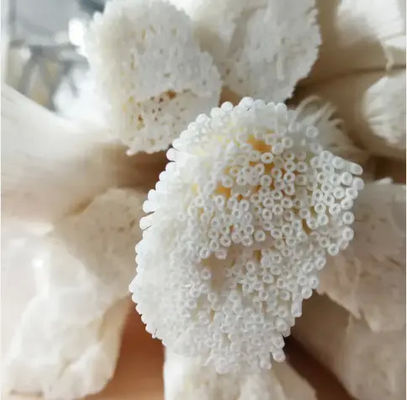

Composed of PVDF hollow fiber membranes, the structure of the built-in aeration tube greatly improves the air scrubbing effect of the curtain membrane during use, which is beneficial to the stability of membrane operation.

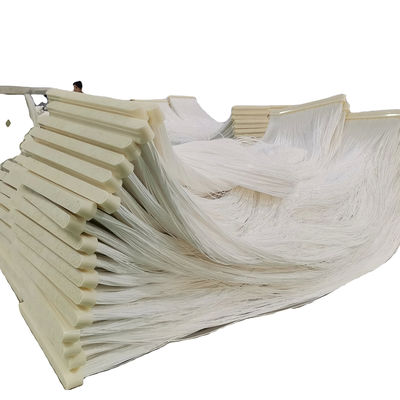

【Membrane module + SS304 Install Frame】
【Application field】
1. Upgrading of sewage treatment facilities and centralized treatment stations for rural sewage.
2. General wastewater: domestic wastewater, effluent from municipal sewage station.
3. High-concentration organic wastewater: food processing wastewater, breeding wastewater, slaughterhouse wastewater, etc.
4. Refractory industrial wastewater: printing and dyeing, chemical, pharmaceutical, coking wastewater, landfill leachate, etc.
