ABS Industrial MBR Process Ceramic Flat Wastewater Reuse Membranes
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Flat sheet membrane |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Frame Material: | ABS | Membrane Hydrophilicity: | Hydrophilic |
|---|---|---|---|
| Components: | Flat Sheet Membrane | Service Range: | Industrial, Municipal Administration And Other Fields |
| Product Performance: | Waterproof, Low Temperature Resistant, High Temperature Resistant | Applicable Process: | MBR |
| Support Customized Processing: | Yes | Product Colour: | White |
| Highlight: | membrane biological reactor wastewater treatment,mbr water treatment plant Membranes,MBR Process wastewater bioreactor |
||
Product Description

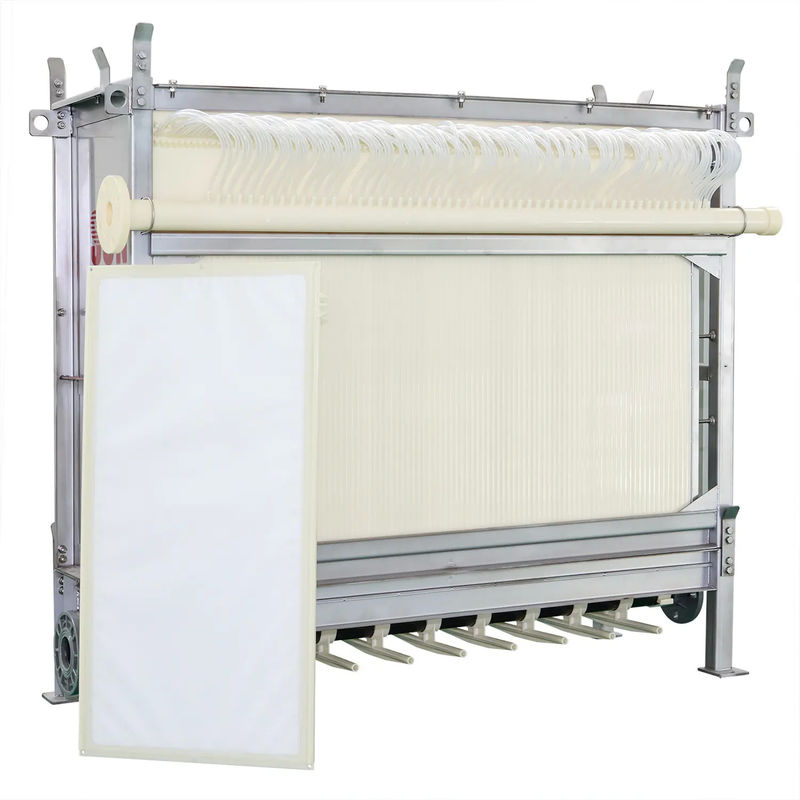

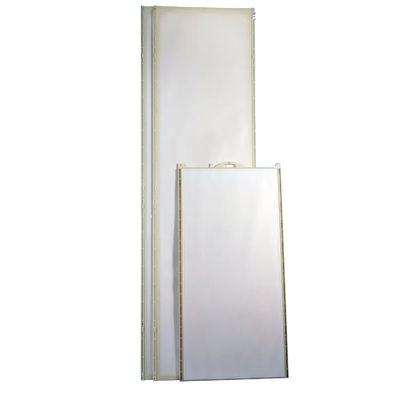

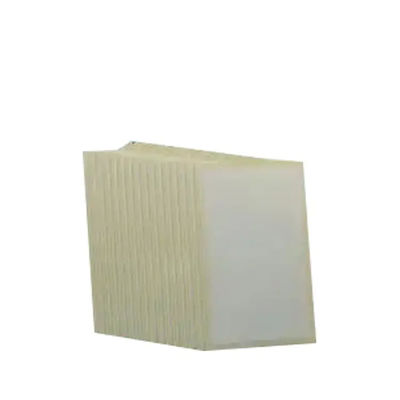

Flat sheet membrane Sewage treatment MBR Membranes High pollution resistance Professional manufacturing
Advantages of flat sheet membrane:
1.MBR flat membrane components are composed of multiple membrane elements arranged side by side. The gaps between the membranes can be adjusted, which is conducive to controlling aeration and cleaning. Therefore, the flat membrane components have better anti-pollution performance.
2.MBR flat membrane components are composed of membranes, guide layers, and ABS support plates, while traditional hollow fiber membranes are self-supporting. In comparison, flat membrane components have better mechanical strength and do not have the problem of broken wires that plague traditional components.
Base plate material: ABS
Membrane pore size: 0.1-0.4um
Standard flux:10-30L/m2.h
Suggested flux: 15-25L/m2.h for normal daily sewage
pH range: 1-13
Aeration: 8-10L/m2.h
For different water qualities, there will be significant differences in their water production. Users should conduct sufficient experiments. This parameter is the initial filtration flux of a membrane element when using MBR membrane to treat municipal wastewater under suction vacuum conditions of 25 ℃ and -10KPa. The unit is L/㎡. d, which is not a guaranteed value.

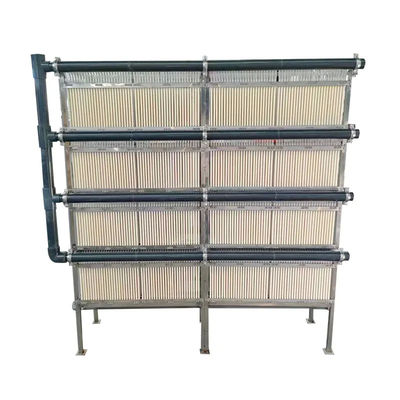

Membrane module size specifications
HF-100 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-100-50 | 50 | 20-30 | 912 | 700 | 1758 | 153 | 1688 | 535 | 713 |
| HF-100-80 | 80 | 32-48 | 1370 | 1170 | |||||
| HF-100-100 | 100 | 40-60 | 1674 | 1476 | |||||
| HF-100-120 | 120 | 48-72 | 1980 | 1780 |
HF-50 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-50-50 | 25 | 10-15 | 720 | 630 | 1040 | 153 | 970 | 600 | 585 |
| HF-50-80 | 40 | 16-24 | 1150 | 935 | |||||
| HF-50-100 | 50 | 20-30 | 1450 | 1170 |
Schematic diagram of HF-MBR membrane module installation pipeline
| serial number | project | illustrate |
| 1 | use | Used for the separation of activated sludge and other suspended impurities in raw water from water |
| 2 | Operation mode | Produced water from suction operation or water production from gravity flow operation |
| 3 | Aeration volume | 8-10L/㎡.min |
| 4 | Operating transmembrane pressure differential | ＜15KPa _ |
| 5 | Operating water temperature | 5-45 ℃ |
| 6 | Run PHvalue | 1-13 |
| 7 | Cleaning fluid injection pressure | <20 KPa |
|
8 |
Cleaning fluid preparation concentration |
When the membrane is organically contaminated, soak it in 0.5 % concentration NaClO solution for 4 to 6 hours. The cleaning solution preparation quantity is: 3 L / element; when the membrane is contaminated by oil or inorganic scaling, please refer to "Chemical cleaning of Membrane Modules" for details on the treatment method in section 8. |
