Flat Sheet bioreactor sewage treatment High Pollution Resistance Professional Manufacturing
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | Flat sheet membrane |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Supporting Frame Material: | ABS | Application Scope: | Sewage Treatment |
|---|---|---|---|
| Component Styles: | Flat Sheet Membrane | Service Areas: | Industry, Municipal Administration And Other Fields |
| Performance: | Waterproof, Low Temperature Resistant, High Temperature Resistant | Membrane Type: | Microporous Membrane |
| Whether To Support Customized Processing: | Yes | Colour: | White |
| Highlight: | Flat Sheet bioreactor water treatment,High Pollution Resistance bioreactor sewage treatment,Professional bioreactor sewage treatment |
||
Product Description

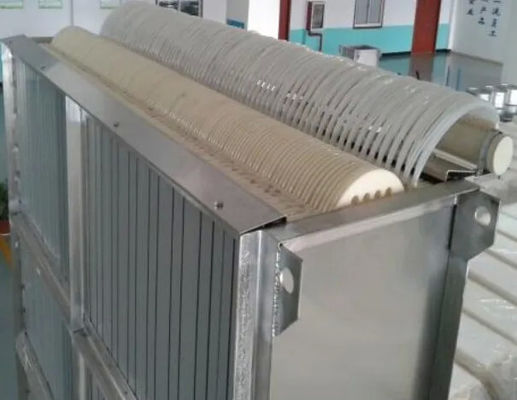

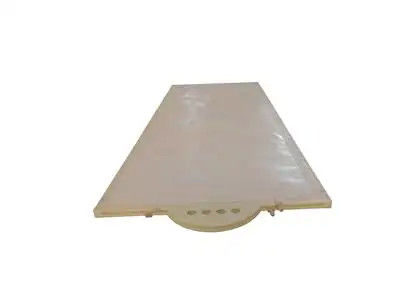

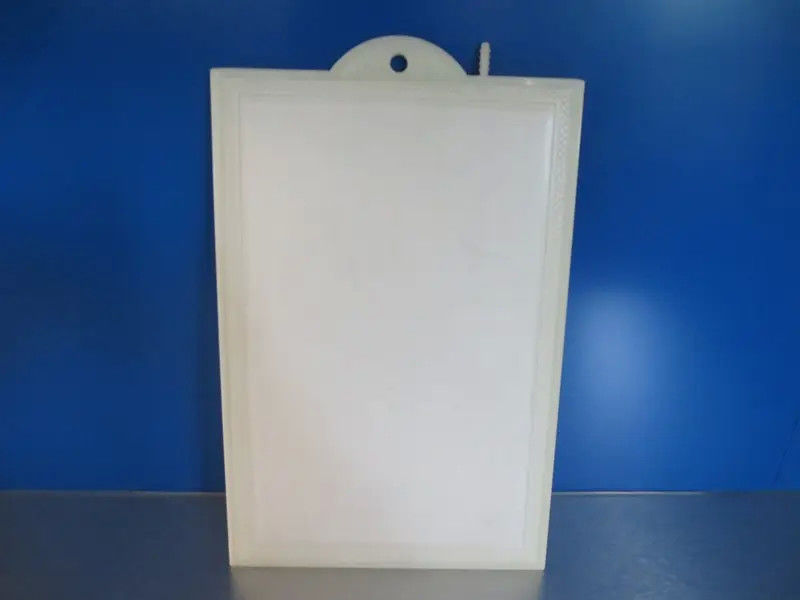

Flat sheet membrane Sewage treatment MBR Membranes High pollution resistance Professional manufacturing
Advantages of flat sheet membrane:
1. MBR flat membrane does not need backwashing during operation, which makes the process simpler and the structure more reasonable. It will not cause excessive attachment of pollutants and there is no problem of hardening.
2. The replacement of MBR flat membrane is very convenient. When a single membrane is damaged, only a single membrane needs to be replaced, and the entire assembly does not need to be replaced. In addition, the MBR flat membrane is easy to clean. Once the flat membrane is contaminated, it can be restored by online drug washing or air exposure. If offline cleaning is required, tap water can be used to flush the membrane surface to complete the rapid cleaning of the membrane surface, extend the service life, and reduce maintenance costs. Considering the operating cost and maintenance cost, the MBR flat membrane assembly is still superior.
Base plate material: ABS
Membrane pore size: 0.1-0.4um
Standard flux:10-30L/m2.h
Suggested flux: 15-25L/m2.h for normal daily sewage
pH range: 1-13
Aeration: 8-10L/m2.h
For different water qualities, there will be significant differences in their water production. Users should conduct sufficient experiments. This parameter is the initial filtration flux of a membrane element when using MBR membrane to treat municipal wastewater under suction vacuum conditions of 25 ℃ and -10KPa. The unit is L/㎡. d, which is not a guaranteed value.
Membrane module size specifications
HF-100 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-100-50 | 50 | 20-30 | 912 | 700 | 1758 | 153 | 1688 | 535 | 713 |
| HF-100-80 | 80 | 32-48 | 1370 | 1170 | |||||
| HF-100-100 | 100 | 40-60 | 1674 | 1476 | |||||
| HF-100-120 | 120 | 48-72 | 1980 | 1780 |
HF-50 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-50-50 | 25 | 10-15 | 720 | 630 | 1040 | 153 | 970 | 600 | 585 |
| HF-50-80 | 40 | 16-24 | 1150 | 935 | |||||
| HF-50-100 | 50 | 20-30 | 1450 | 1170 |
Schematic diagram of HF-MBR membrane module installation pipeline
| serial number | project | illustrate |
| 1 | use | Used for the separation of activated sludge and other suspended impurities in raw water from water |
| 2 | Operation mode | Produced water from suction operation or water production from gravity flow operation |
| 3 | Aeration volume | 8-10L/㎡.min |
| 4 | Operating transmembrane pressure differential | ＜15KPa _ |
| 5 | Operating water temperature | 5-45 ℃ |
| 6 | Run PHvalue | 1-13 |
| 7 | Cleaning fluid injection pressure | <20 KPa |
|
8 |
Cleaning fluid preparation concentration |
When the membrane is organically contaminated, soak it in 0.5 % concentration NaClO solution for 4 to 6 hours. The cleaning solution preparation quantity is: 3 L / element; when the membrane is contaminated by oil or inorganic scaling, please refer to "Chemical cleaning of Membrane Modules" for details on the treatment method in section 8. |
