Eco friendly Mbr Membranes Flat Sheet Ceramic Sewage Filtration Efficient Flux
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | HF-50-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Element Membrane Area: | 50 M2 | Core Components: | Mbr, Flat Sheet Membrane |
|---|---|---|---|
| Feature: | Eco Friendly | Element No.: | HF-50-100 |
| Element Pore Size: | 0.1-0.4um | Element Throughput: | 20-30 |
| Element Base Plate Material: | ABS | Element Standard Flux: | 10-30L/m2.h |
| Highlight: | Eco friendly mbr membranes,Sewage Filtration mbr membranes,Eco friendly mbr filter membrane |
||
Product Description

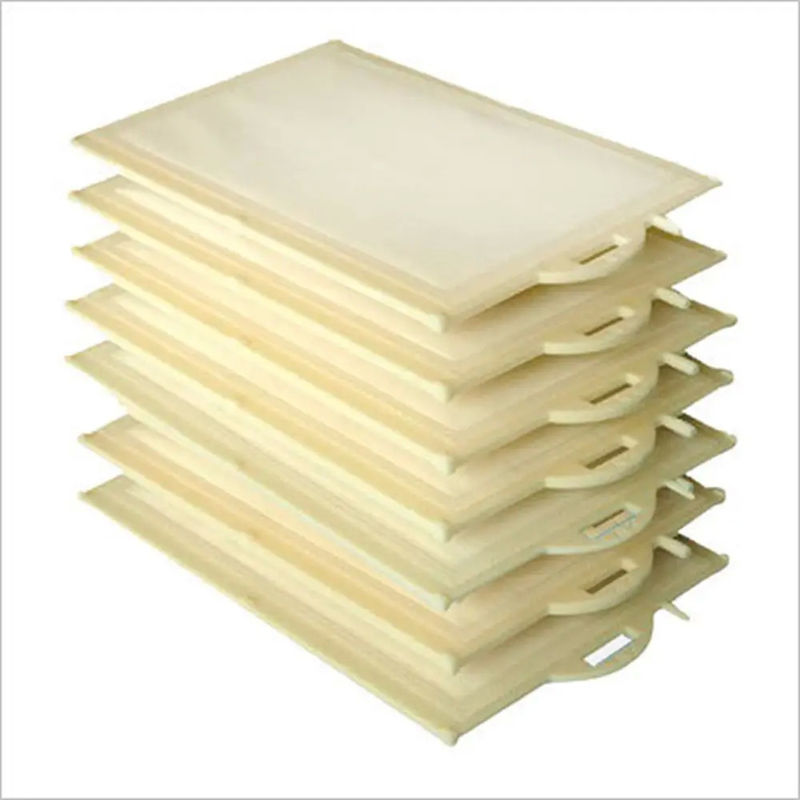

MBR Flat Sheet Ceramic Membrane MBR membranes For Sewage Filtration With Efficient Flux HF-50-100
Advantages of flat sheet membrane:
MBR flat membrane sewage treatment equipment has a small footprint, which is also a major advantage. Because the equipment adopts a highly integrated design, the entire system is more compact and the footprint is greatly reduced. This is undoubtedly a huge advantage for places with limited space. At the same time, the installation and commissioning of the equipment are relatively simple, which can greatly shorten the construction period of the sewage treatment plant.
In terms of operating costs, MBR flat membrane sewage treatment equipment also performs well. Due to its efficient sewage treatment capacity and stable operating performance, the operating cost of the equipment is relatively low. In addition, the maintenance and management of the equipment are also relatively simple, which can reduce the investment of manpower and material resources and further reduce operating costs.
state.
Base plate material: ABS
Membrane pore size: 0.1-0.4um
Standard flux:10-30L/m2.h
Suggested flux: 15-25L/m2.h for normal daily sewage
pH range: 1-13
Aeration: 8-10L/m2.h
For different water qualities, there will be significant differences in their water production. Users should conduct sufficient experiments. This parameter is the initial filtration flux of a membrane element when using MBR membrane to treat municipal wastewater under suction vacuum conditions of 25 ℃ and -10KPa. The unit is L/㎡. d, which is not a guaranteed value.

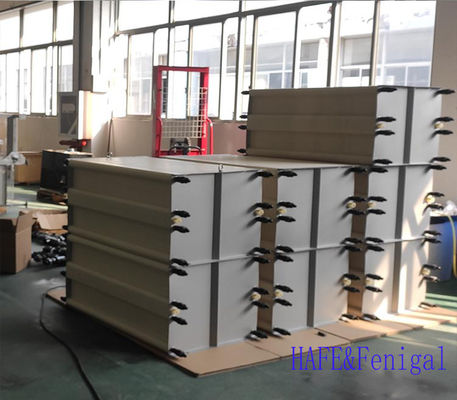

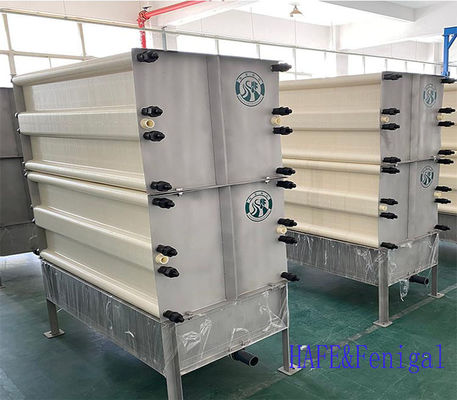

Membrane module size specifications
HF-100 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-100-50 | 50 | 20-30 | 912 | 700 | 1758 | 153 | 1688 | 535 | 713 |
| HF-100-80 | 80 | 32-48 | 1370 | 1170 | |||||
| HF-100-100 | 100 | 40-60 | 1674 | 1476 | |||||
| HF-100-120 | 120 | 48-72 | 1980 | 1780 |
HF-50 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-50-50 | 25 | 10-15 | 720 | 630 | 1040 | 153 | 970 | 600 | 585 |
| HF-50-80 | 40 | 16-24 | 1150 | 935 | |||||
| HF-50-100 | 50 | 20-30 | 1450 | 1170 |
Schematic diagram of HF-MBR membrane module installation pipeline
| serial number | project | illustrate |
| 1 | use | Used for the separation of activated sludge and other suspended impurities in raw water from water |
| 2 | Operation mode | Produced water from suction operation or water production from gravity flow operation |
| 3 | Aeration volume | 8-10L/㎡.min |
| 4 | Operating transmembrane pressure differential | ＜15KPa _ |
| 5 | Operating water temperature | 5-45 ℃ |
| 6 | Run PHvalue | 1-13 |
| 7 | Cleaning fluid injection pressure | <20 KPa |
|
8 |
Cleaning fluid preparation concentration |
When the membrane is organically contaminated, soak it in 0.5 % concentration NaClO solution for 4 to 6 hours. The cleaning solution preparation quantity is: 3 L / element; when the membrane is contaminated by oil or inorganic scaling, please refer to "Chemical cleaning of Membrane Modules" for details on the treatment method in section 8. |
