High Efficiency Flat Enhanced Membrane Biological Reactor Wastewater Treatment
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | HF-50-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| The Membrane Area Of this Type: | 40 M2 | The Range Of Pore Size: | 0.1-0.4 Um |
|---|---|---|---|
| About This Model Throughput: | 16-24 M3/d | Country Of Origin: | Jiangsu, China |
| The Use Of Materials: | ABS | Membrane Type For This Model: | Flat Sheet Membrane |
| The Series Of This Model: | HF-50 Flat Membrane Series | Advantages Of This Series: | Compact Design – Footprint 75% Smaller Than Conventional |
| Highlight: | Flat membrane biological reactor wastewater treatment,Enhanced membrane biological reactor wastewater treatment,High efficiency mbr filter membrane |
||
Product Description

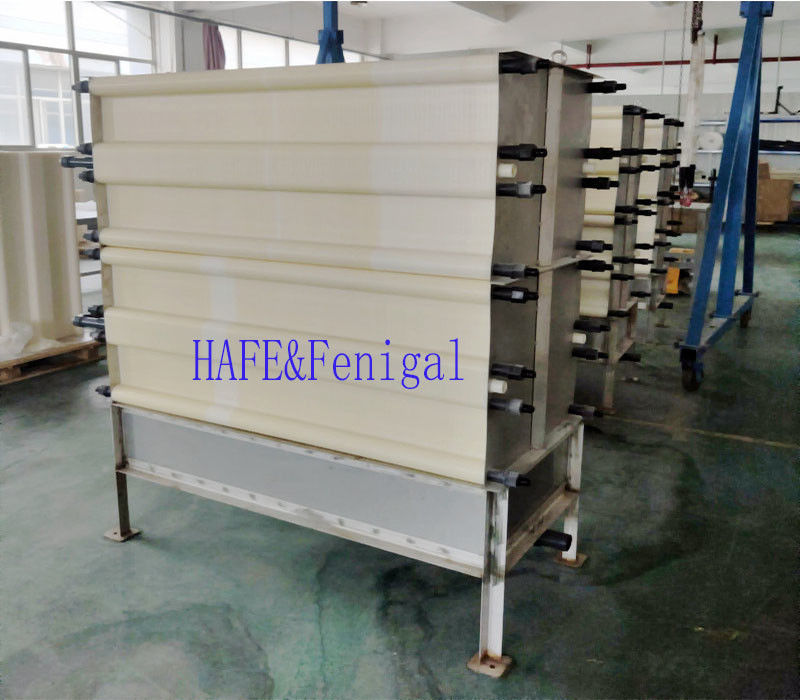

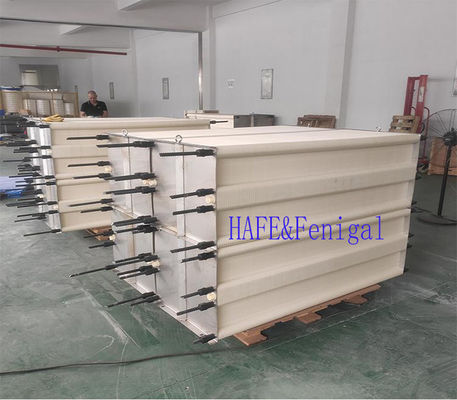

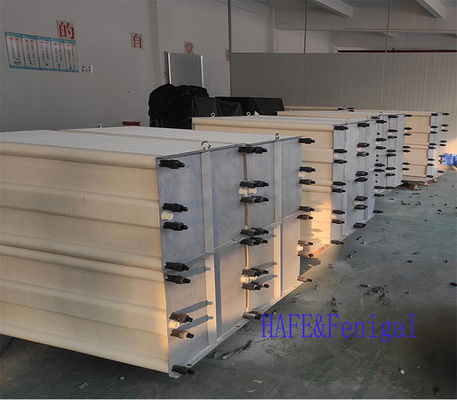

High efficiency MBR membrane flat membrane enhanced type for wastewater treatment HF-50-80
Advantages of flat sheet membrane:
The system stability of MBR flat membrane sewage treatment equipment is excellent. The equipment adopts modular design, compact structure and easy maintenance. Even if there are fluctuations in input water flow and water quality, the equipment can maintain a stable treatment effect. In addition, the equipment is equipped with an intelligent automatic control system that can monitor the operating status of the equipment in real time and adjust the operating parameters according to the actual situation to ensure that the equipment is always in the best treatment state.
Base plate material: ABS
Membrane pore size: 0.1-0.4um
Standard flux:10-30L/m2.h
Suggested flux: 15-25L/m2.h for normal daily sewage
pH range: 1-13
Aeration: 8-10L/m2.h
For different water qualities, there will be significant differences in their water production. Users should conduct sufficient experiments. This parameter is the initial filtration flux of a membrane element when using MBR membrane to treat municipal wastewater under suction vacuum conditions of 25 ℃ and -10KPa. The unit is L/㎡. d, which is not a guaranteed value.
Membrane module size specifications
HF-100 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-100-50 | 50 | 20-30 | 912 | 700 | 1758 | 153 | 1688 | 535 | 713 |
| HF-100-80 | 80 | 32-48 | 1370 | 1170 | |||||
| HF-100-100 | 100 | 40-60 | 1674 | 1476 | |||||
| HF-100-120 | 120 | 48-72 | 1980 | 1780 |
HF-50 flat membrane series
| model |
membrane area (m2) |
Throughput (m3/d) |
A (mm) |
B (mm) |
C[1] (mm) |
D (mm) |
E (mm) |
F (mm) |
G (mm) |
| HF-50-50 | 25 | 10-15 | 720 | 630 | 1040 | 153 | 970 | 600 | 585 |
| HF-50-80 | 40 | 16-24 | 1150 | 935 | |||||
| HF-50-100 | 50 | 20-30 | 1450 | 1170 |
Schematic diagram of HF-MBR membrane module installation pipeline
| serial number | project | illustrate |
| 1 | use | Used for the separation of activated sludge and other suspended impurities in raw water from water |
| 2 | Operation mode | Produced water from suction operation or water production from gravity flow operation |
| 3 | Aeration volume | 8-10L/㎡.min |
| 4 | Operating transmembrane pressure differential | ＜15KPa _ |
| 5 | Operating water temperature | 5-45 ℃ |
| 6 | Run PHvalue | 1-13 |
| 7 | Cleaning fluid injection pressure | <20 KPa |
|
8 |
Cleaning fluid preparation concentration |
When the membrane is organically contaminated, soak it in 0.5 % concentration NaClO solution for 4 to 6 hours. The cleaning solution preparation quantity is: 3 L / element; when the membrane is contaminated by oil or inorganic scaling, please refer to "Chemical cleaning of Membrane Modules" for details on the treatment method in section 8. |
