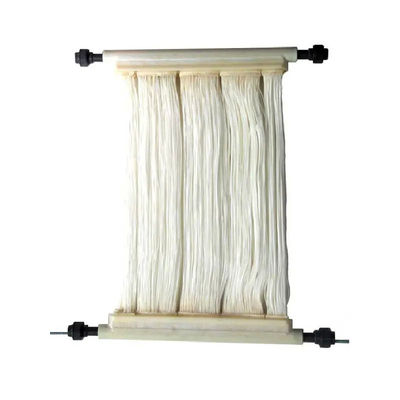

Integrated PVDF Hollow Fiber mbr membranes For Domestic Sewage
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | CE |
| Model Number: | MBR-10-CO-PVDF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Place Of Origin: | Jiangsu, China | Usage: | Reinfroced Hollow Fibers |
|---|---|---|---|
| Core Components: | Fibers | Applicable Industries: | Building Material Shops, Manufacturing Plant, Farms, Printing Shops, Construction Works , Other |
| Total Length: | 1550 Mm | Total Width: | 645 Mm |
| The Recommended Operating Cycle Of The Components: | 8 Minutes For Water Production On Every 2 Minutes Stop | Material And Technology: | PVDF Material (reinforced With Woven Fiber Lining)—NIPS Process |
| Highlight: | Integrated mbr membranes,PVDF Hollow Fiber mbr membranes,membrane bioreactor For Domestic Sewage |
||
Product Description
integrated PVDF Hollow Fiber Membrane Filament MBR Membranes For Domestic Sewage
MBR membrane (reinforced PVDF membrane)
Highlight: Internal aeration, to ensure sufficient vibration of the film filaments, and strengthen the air-water scrubbing effect
5 major features and advantages of MBR curtain membrane:
1. MBR curtain membrane is permanently hydrophilic
Due to the introduction of hydroxyl groups, the hydrophilic properties are greatly changed to make it permanently hydrophilic.
2. MBR curtain membrane has strong adhesion
The coating liquid with hydroxyl groups has stronger adhesion to the braided tube than the blended membrane. The membrane surface will not fall off when it is pasted with strong glue, while ordinary membranes will fall off easily.
3. MBR curtain membrane can resist permanent pollution
The straight holes of the single-skin structure reduce the retention of pollutants in the membrane fibers, improve the ability to resist permanent pollution, and delay the ability to attenuate flux.
4. MBR curtain membrane can be transported and stored in dry state
The permanent hydrophilic modification and high porosity membrane structure give a higher membrane flux, and the pore structure is not easy to deform, so it can be transported and stored in dry state.
5. MBR curtain membrane has high fracture strength
Because the microfiltration membrane is attached to the surface of the polyester (PET) braided tube. The fracture strength can be greater than 200N.
Performance parameters of lined reinforced polyvinylidene fluoride hollow fiber curtain membrane module (MBR membrane)
| Membrane module model | MBR-8-CO-PVDF | MBR-10-CO-PVDF | MBR-15-CO- PVDF | |
| Component parameters | Membrane material and technology | PVDF material (reinforced with woven fiber lining)—NIPS process | ||
| Effective membrane area (㎡) | 8 | 10 | 15 | |
| Average pore diameter (μm) | 0.05 | |||
| Component patented design | membrane aeration-enhanced anti-pollution design | |||
| Module size | Total length × total width (mm) | 1050×645 | 1550×645 | 1550×645 |
| Number of membrane filaments | 1600 | 1200 | 1800 | |
| Interface size | Socket at both ends (DN) | 32 | ||
| Component connection | PE hose (mm) | 14 | ||
| Conditions of use | Filtration method | Negative pressure suction filtration | ||
| Maximum trans-membrane pressure difference (MPa) | -0.08 | |||
| Applicable temperature range (℃) | 5～45 | |||
| Long-term tolerant pH range | 2～13 | |||
| Average aeration volume of components (Nm³/h) | 3-5 | 4-6 | 6-9 | |
| Recommended sludge concentration (MLSS) | 6000～10000 | |||
| 25℃ design flux | 14～22 | |||
| The recommended operating cycle of the components | 8 minutes for water production on every 2 minutes stop | |||
|
1. All technical parameters in the table are factory inspection values under standard inspection conditions. 2. The production water flow in the table refers to the actual production water design flow when the product is used for MBR technology to treat sewage. |
||||
High-strength lining MBR membrane module (MBR membrane) is currently the core filtration membrane module that is more suitable for MBR membrane bioreaction systems. The reinforced polyvinylidene fluoride (PVDF) hollow fiber curtain membrane module (with MBR membrane lining) has advanced structure and superior performance (patent name: anti-blocking and high aeration efficiency hollow limit curtain membrane module, utility model Patent number: ZL 2017 2015 7728.4), mainly composed of reinforced polyvinylidene fluoride hollow fiber membrane, air inlet pipe, internal aeration pipe and water outlet pipe. Unique internal aeration structure (patented technology)

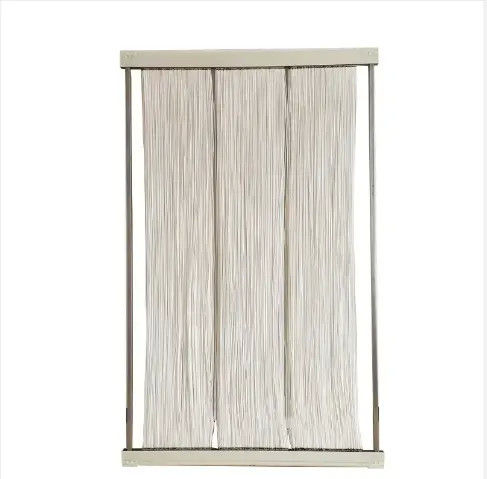

The reinforced PVDF curtain membrane with lining is composed of air inlet pipe, outlet pipe, internal aeration pipe and reinforced type with lining
Composed of PVDF hollow fiber membranes, the structure of the built-in aeration tube greatly improves the air scrubbing effect of the curtain membrane during use, which is beneficial to the stability of membrane operation.

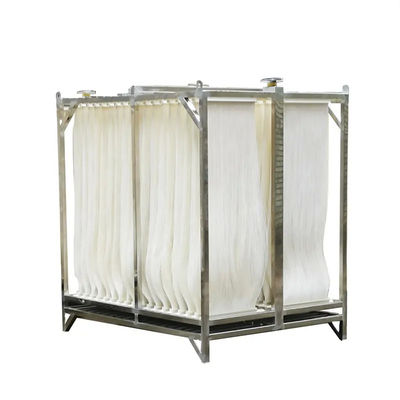

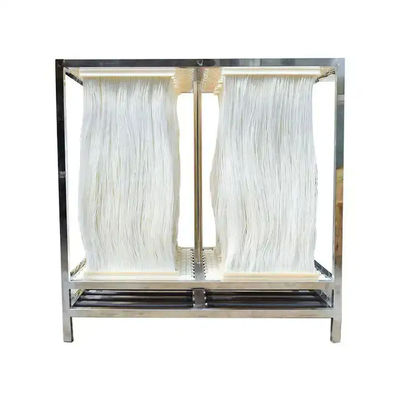

【Membrane module + SS304 Install Frame】
【Application field】
1. Upgrading of sewage treatment facilities and centralized treatment stations for rural sewage.
2. General wastewater: domestic wastewater, effluent from municipal sewage station.
3. High-concentration organic wastewater: food processing wastewater, breeding wastewater, slaughterhouse wastewater, etc.
4. Refractory industrial wastewater: printing and dyeing, chemical, pharmaceutical, coking wastewater, landfill leachate, etc.
