Pretreatment 0.03 um PVDF Dow UF Membranes Modules SFP-2880 / SFD-2880
Product Details:
| Place of Origin: | China |
| Brand Name: | DOW |
| Certification: | CE |
| Model Number: | SFP-2880 and SFD-2880 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Flow Range Per Module: | 3.1 – 9.3 M3 /hr | Membrane Area: | 77 M² |
|---|---|---|---|
| Nominal Pore Diameter: | 0.03 µm | Weight (empty/water Filled): | 61/100 Kg |
| Hold-up Volume: | 39liters | Membrane Material: | PVDF |
| Diameter: | 8 Inch | Flow Direction Settings: | External Pressure Structure, Dead End Filtration |
| Certifications: | ISO 9001, NSF, CE | ||
| Highlight: | DOW Ultrafiltration Membranes,Ultrafiltration Membrane System,Ultrafiltration Membranes For Water Treatment |
||
Product Description
0.03 um PVDF Dow UF Membranes Modules SFP-2880 / SFD-2880
Features
Key features of the DOW UF SPD/SPF2880 membranes include:
- High Filtration Efficiency: These membranes offer exceptional filtration efficiency, effectively removing suspended solids, colloids, bacteria, and other contaminants from water.
- Chemical Compatibility: The membranes are engineered to be compatible with a variety of chemicals commonly found in water treatment processes, ensuring longevity and reliability.
- Robust Construction: Constructed using PVDF, the SPD/SPF2880 membranes are durable and resilient, capable of withstanding challenging operational conditions.
- Low Energy Consumption: Operating efficiently at low pressures, these membranes help reduce energy consumption, leading to cost savings.
- Versatile Applications: Suitable for diverse applications across industries such as water purification, wastewater treatment, food and beverage processing, and pharmaceutical production.
Product Specifications

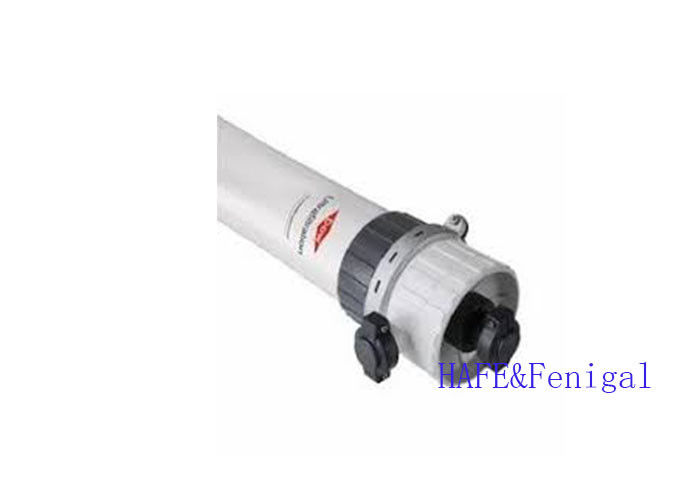

Figure 1: SFP and SFD 2880 (8-inch diameter)
Operating Parameters
Ensuring that the UF system is properly started is critical to preparing the membrane for operation and preventing potential membrane damage. Following the correct startup sequence is essential to maintaining system parameters within design specifications, helping to achieve water quality and productivity goals.
Before beginning the startup procedure, membrane preconditioning, membrane module installation, instrumentation calibration, and system checks must be completed per the guidelines outlined in the product technical manual.
To prevent membrane damage, sudden pressure changes during startup, shutdown, cleaning, or other sequences should be avoided. Before startup, flush the UF system thoroughly to eliminate any remaining shipping solution. In addition, purge any residual air from the system before commencing operation.
Start the unit manually, with the goal of achieving an initial permeate flow rate of 60% of the design capacity. Depending on the application, it may be necessary to discard the permeate obtained during initial operation. Refer to the product technical manual for detailed instructions.
General information
If operating limits and guidelines given in this bulletin are not strictly followed, the limited warranty (Form No. 795-00027) will be null and void.
To prevent biological growth during system shutdowns, it is recommended that preservative solution be injected into the membrane modules.
Regulatory note NSF/ANSI 61 certified drinking water modules require specific conditioning procedures prior to producing potable water. Please refer to the product technical manual flushing section for specific procedures. Drinking water modules may be subjected to additional regulatory restrictions in some countries. Please check local regulatory guidelines and application status before use and sale.
