DuPont XP 77 IG 8 Inch PVDF UF Membrane for Pharma and Beverage
Product Details:
| Place of Origin: | China |
| Brand Name: | Dupont |
| Certification: | CE |
| Model Number: | IntegraTec™ XP 77 IG (formerly SFP 2880XP) |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| XP 77 IG Diameter: | 8 Inch | XP 77 IG Membrane Area Of XP 77 IG: | 77 M² |
|---|---|---|---|
| XP 77 IG Material: | PVDF | Flow Range Per Module: | 2.0 – 8.5 M³/hr |
| Nominal Pore Diameter Of XP 77 IG: | 0.03 µm | Operating Pressure Of XP 77 IG: | 1-5 Bar |
| Max. Operating TMP Of This Module: | 2.1 Bar | Max Operating Air Scour Flow Of This Module: | 12 Nm3/hr |
| NaOCl (max.)of This Module: | 2,000 Mg/L | Certifications Of This Model: | ISO 9001, NSF, CE |
| Application: | Pharma And Beverage | Advantages Of The Model: | High Performance Filtration Solutions |
| Highlight: | DuPont XP 77 UF membrane,8 inch PVDF membrane,pharmaceutical UF membrane |
||
Product Description
DuPont IntegraTec™ XP 77 IG FDA Compliant L for Pharma and Beverage
Product Overview
The DuPont UF XP 77 IG is a high-performance ion exchange membrane designed for chlor-alkali electrolysis applications. It delivers high current efficiency (≥96%) and low energy consumption, enabling cost-effective production of caustic soda (NaOH), chlorine (Cl₂), and hydrogen (H₂).
Key Specifications
| XP 77 IG Diameter | 8 inch |
| Membrane Area | 77 m² |
| Material | PVDF |
| Flow Range Per Module | 2.0 – 8.5 m³/hr |
| Nominal Pore Diameter | 0.03 µm |
| Operating Pressure | 1-5 bar |
| Max Operating TMP | 2.1 bar |
| Certifications | ISO 9001, NSF, CE |
Key Features
- Ultra-Strong PVDF Membrane Material - Resists tearing, abrasion, and chemical degradation
- Superior Chemical Tolerance - Withstands aggressive cleaning agents and extreme pH conditions
- Outer-to-In Filtration Design - Handles high solids content with minimal fouling
- Precision-Level Filtration Efficiency - Removes microorganisms, colloids, and fine particulates
- Optimized for Heavy-Duty Systems - Extended service life for industrial installations
Applications
- Industrial Wastewater Reclamation (chemical processing, mining, power generation)
- Seawater Pretreatment for Desalination Plants
- Aggressive Process Water Treatment (textile dyeing, metal finishing, petrochemical)
- Municipal Water Purification in High-Stress Environments
Technical Specifications
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-110 l/m²/hr | 24-65 gfd |
| Flow Range | 2.0 - 8.5 m³/hr | 8.8 - 37.4 gpm |
| Temperature Range | 1-40ºC | 34-104ºF |
| Max Inlet Module Pressure (@ 20ºC) | 6.25 bar | 90.65 psi |
| Operating pH | 2-11 | |

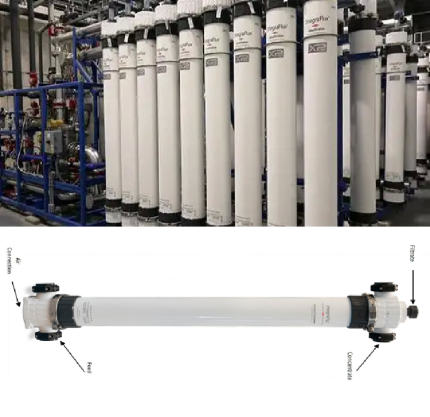

Product Dimensions
Installation
Application Cases
For application cases, please visit: www.fgwater.com/Industries/
Want to Know more details about this product
