Product Details:

Place of Origin: China
Brand Name: Dupont
Certification: CE
Model Number: IntegraTec™ XP 77 IG (formerly SFP 2880XP)

Payment & Shipping Terms:

Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard export packing
Delivery Time: 5- 8 work days
Supply Ability: 60000 Units per Month
Get Best Price Contact Now

Detail Information

Component Diameter Of XP 77 IG: 8 Inch Component Membrane Area Of XP 77 IG: 77 M²
Component Material: PVDF Flow Range Per Module: 2.0 – 8.5 M³/hr
Nominal Pore Diameter Of XP 77 IG: 0.03 µm Operating Pressure Of XP 77 IG: 1-5 Bar
Max. Operating TMP Of This Module: 2.1 Bar Max Operating Air Scour Flow Of This Module: 12 Nm3/hr
NaOCl (max.)of This Module: 2,000 Mg/L Certifications Of This Model: ISO 9001, NSF, CE
Function Of XP 77 IG: Improve The System Recovery Rate Effectively Advantages Of The Model: High Performance Filtration Solutions

Product Description

DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications

  • Product Description:

    The DuPont™ XP 77 IG is a high-performance ultrafiltration (UF) membrane engineered for extreme industrial water treatment environments. Leveraging reinforced PVDF hollow fiber technology, it delivers exceptional durability and chemical resistance in applications requiring robust filtration solutions. Designed for reliability in harsh conditions, this membrane ensures consistent water quality while minimizing operational downtime.

    Key Features:

    • Ultra-Strong PVDF Membrane Material – Resists tearing, abrasion, and chemical degradation.

    • Superior Chemical Tolerance – Withstands aggressive cleaning agents and extreme pH conditions.

    • Outer-to-In Filtration Design – Handles high solids content and turbid feed water with minimal fouling.

    • Precision-Level Filtration Efficiency – Removes microorganisms, colloids, and fine particulates effectively.

    • Optimized for Heavy-Duty Systems – Ideal for large-scale industrial installations requiring extended service life.

    Applications:

    • Industrial Wastewater Reclamation (chemical processing, mining, power generation)

    • Seawater Pretreatment for Desalination Plants

    • Aggressive Process Water Treatment (textile dyeing, metal finishing, petrochemical)

    • Municipal Water Purification in High-Stress Environments

    Technical Highlights:

    • Material Science: Hydrophilic PVDF with enhanced structural integrity

    • Filtration Mechanism: Outer-pressure configuration for high solids tolerance

    • Operational Resilience: Broad chemical and thermal operating window

    • Certifications: Meets international standards for industrial water safety

    Competitive Advantages:

    The XP 77 IG stands apart through its uncompromising resilience in corrosive and high-load environments. Its advanced polymer formulation resists common membrane failure modes, while the optimized fiber geometry balances flux stability with energy efficiency. This membrane is engineered to reduce lifecycle costs in applications where conventional UF membranes degrade prematurely.

  1. DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications 0

Product Specifications

Membrane area Module volume Weight
(empty / water filled)
Model Type / m2 ft2 Liters Gallons Kg/lbs Kg/lbs
XP77 IG Industrial
77 829 39 10.3 61/100 135/220
XP77 NSF/ANSI 61 and 419
77 829 39 10.3 61/100 135/220

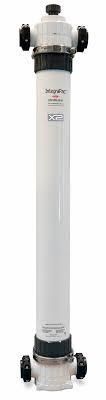

Figure 1: XP77 and XP77 IG (8-inch diameter)


DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications 1

Properties
Length

Diameter Width
Units L L1 L2 L3 D W1 W2
SI (mm) 2360 2000 2130 2320 225 180 342

Operating Parameters


SI units US units
Filtrate Flux @ 25ºC 40-110 l/m2/ hr 24-65 gfd
Flow range 2.0 8.5 m3/hr 8.8 37.4 gpm
Temperature 1-40ºC 34-104ºF
Max. inlet module pressure (@ 20ºC) 6.25 bar 90.65 psi
Max. operating TMP 2.1 bar 30.5 psi
Max operating air scour flow 12 nm3/hr 7.1 scfm
Max backwash pressure 2.5 bar 36 psi
Operating pH 2- 11
NaOCl (max.) 2,000 mg/L
Particle size (max.) 300 µm
Flow configuration Outside in,dead end flow
Expected filtrate turbidity ≤0.1 NTU
Expected filtrate SDI ≤2.5
/
/


The difference between 28XX and 26XX

DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications 2

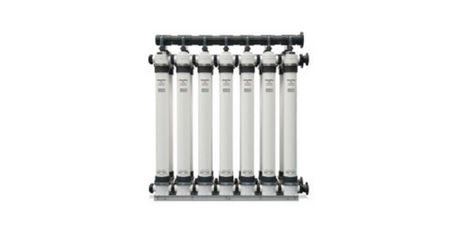

MODULE INSTALLATION

DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications 3

DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications 4


DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications 5

DuPont™ XP 77 IG UF Membrane—Grade Filtration For Challenging Water Applications 6
