Axial Piston Plunger Stainless Steel High Pressure Pump For Seawater Reverse Osmosis

Axial Piston Plunger Stainless Steel High Pressure Pump For Seawater Reverse Osmosis

Product Details:

Place of Origin: China
Brand Name: Fenigal/OEM
Certification: CE
Model Number: LT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Standard Export Wood Crate/Carton or Naked wrapped by film
Delivery Time: 15~30 days
Payment Terms: T/T, Western Union, Paypal etc.
Supply Ability: 50 set per month
Get Best Price Contact Now

Detail Information

Technology: Reverse Osmosis Design: Skid Mount
Permeate Flow/TPD: 1.4~38 Permeate Flow/GPD: 380~10,000GPD
Recovery Rate: 8~35% Feed TDS/ppm: <35,000
Water Temp.: 5~35˚C PH: 4~9
TSS/mg/L: <5 Silt Density Index: <3
Free Chlorine Mg/L: 0 Dissolved Iron Mg/L: <0.1
Warranty: 1 Year Material: SS304/SS316L,carbon Steel
Capacity: 0.5-100m3/h Voltage: 380V,415V,220V,can Be Customized
Application: Water Purification,Filtration,pharmceutical,drinking Water,food Size: Depends,1750*550*1650mm
Type: Seawater Reverse Osmosis System Function: Water Purifying, Desalination
Desalination Rate: 99%,99.7% Control: Electronic,Manual/PLC
Ro Membrane: Hydranautics Or DOW,4040 Pump: Danfoss/CAT/CNP

Product Description

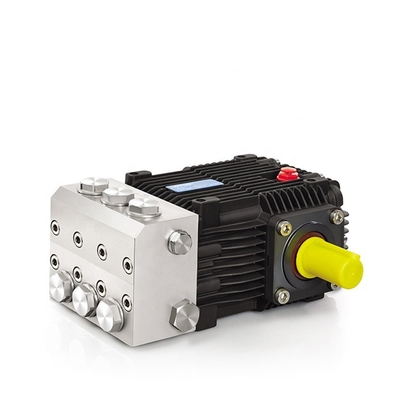

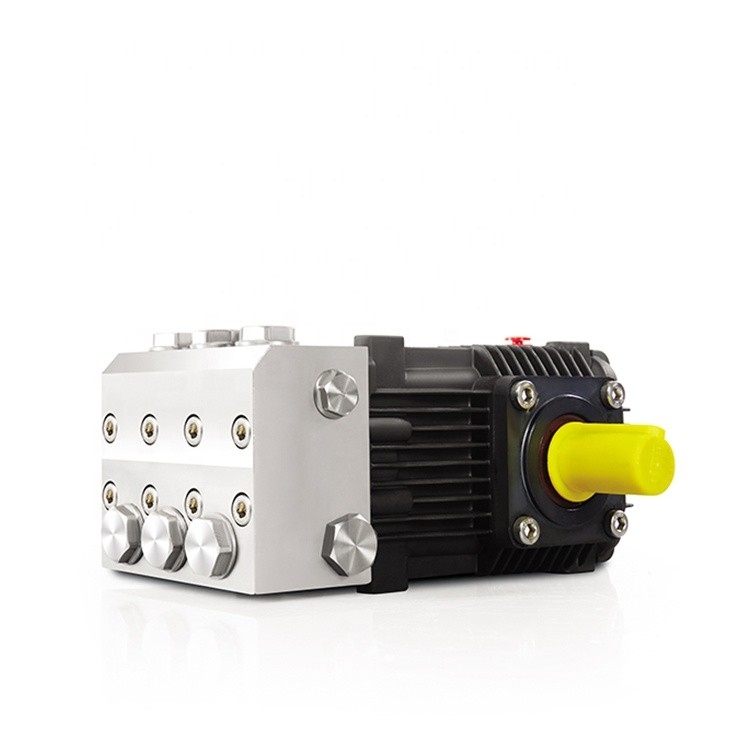

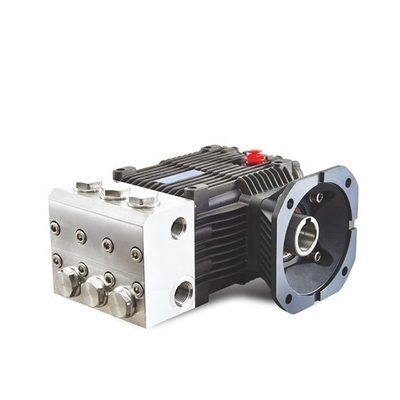

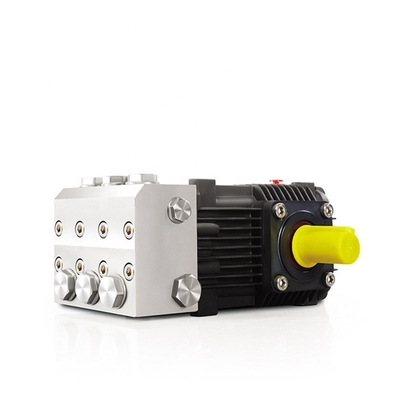

Axial Piston Plunger Stainless Steel High Pressure Pump For Seawater Reverse Osmosis

Axial Piston Plunger Stainless Steel High Pressure Pump For Seawater Reverse Osmosis 0

♦♦ Description of Stainless Steel High Pressure Pump

We offer a complete line of stainless steel pumps to meet the demands of many industrial applications, such as reverse osmosis water desalination, seal gland flushing and waste water odor control. Available as 304, 316 stainless steel, these pumps offer flow and pressure ranges: 2-30L/min (0.6-8GPM), and 50-250Bar( 100-3625PSI), with outstanding corrosion resistance, strength and long service life.


♦♦ Specification of Stainless Steel High Pressure Pump

Item Stainless Steel High Pressure Pump
Model LT-3010
Flow Rate 30 L/min (7.93 GPM)
Pressure 120 Bar (1740 PSI)
Power 7.5 HP (5.5 KW)
Rotation Speed 1450 r.p.m ( option 1750, 2800, 3400 rpm)
Lubrication Oil Bath
Warranty 1 Year
Hollow Shaft 24mm, 28mm Flange On
Construction Triplex Ceramic Plunger, Stainless Steel Manifold
Usage Chemical Water, Sea Water, Waste Water
Application Reverse Osmosis, Desalination, Chemical Industries


♦♦ Tech Para.

Model Flow Rate Pressure Power Rotation Plunger Stroke
L/min GPM bar psi hp kw rpm mm mm
LT12.10 11.6 3.1 100 1450 3 2.2 1450 22 7
LT14.10 14.1 3.7 100 1450 4 3 1450 22 8.5
LT16.13 16.5 4.4 130 1885 5.5 4 1450 22 10
LT23.12 23.2 6.1 120 1740 7.5 5.5 1450 22 14
LT26.10 26.5 7 100 1450 7.5 5.5 1450 22 16
LT30.10 29.9 7.9 100 1450 10 7.5 1450 25 14
Remark: 1. Max. Pressure 300 bar
2. Hollow Shaft, 24, 28mm; Solid Shaft 24mm


♦♦ Feature of Stainless Steel High Pressure Pump

  • High Strength Stainless Steel 316 Manifold
  • Stainless Steel 304 Screw Bolt
  • Precision Processed Ceramic Plunger, Durable, Dependable
  • Aluminum Alloy Crankcase, Anti-Corrosion, Heat Dissipation
  • Forged Crankshaft, Special Heat Treatment
  • Alloy Connecting Rod
  • Stainless Steel Checking Valve
  • HP Seals

♦♦ Application of Stainless Steel High Pressure Pump

This Stainless Steel Plunger Pressure Pump can be used in drain jetting equipment, industrial cleaning systems, vehicle mounted jetting systems, multi-bay car wash systems, sand blasting equipment and other special applications.

  • Food processing
  • Pharmaceutical & chemical industries
  • Reverse osmosis
  • Desalination
  • Car, Truck, Vehicles Washing
  • High Pressure Sewer Jetting
  • Others

More information about SWRO

What is seawater reverse osmosis?

Seawater reverse osmosis systems are designed to decline more than 99% of saline compromised within the feed water. These systems also incorporate a rinsing, chemical purifying apparatus to eliminate sodium chloride, avert scaling, and preserve system performance. There are two fundamental elements within every seawater reverse osmosis system, which are reverse osmosis membranes and high pressure feed pumps. These elements make up the center of any reverse osmosis system and need special consideration and application for successful operation.


Does reverse osmosis remove salt from seawater?

Yes, semipermeable membranes enable the feed water to pass through it at a much higher volume than dissolved salts. Reverse osmosis systems work by applying pressure as freshwater streams through its membranes to filter out the concentrated saline in the feed water, as well as minerals and pollutants. These unwanted impurities are either flushed away, recycled, or processed. Seawater reverse osmosis systems utilize more than one membrane to boost the load of purified water turned out each day.


What are the advantages of desalination plants?

Seawater desalination has become a vital alternative to the production of pure freshwater throughout the areas of the world without drinkable water. As other sources such as rivers, lakes, wells, and springs have become more exhausted due to excessive extraction, the ocean has provided an abundant supply of available water for human use. Although ocean water consists of elevated levels of salt, and therefore is unable to be utilized for consumption or most other purposes, seawater desalination has helped make it practical.
