1000l/H Advanced Reverse Osmosis Water Treatment System Laboratory Type I Ii
Product Details:
Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE etc. |
Model Number: | RO-EDI |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
Delivery Time: | 15~30 days |
Payment Terms: | T/T, Western Union, Paypal etc. |
Supply Ability: | 50 set per month |
Detail Information |
|||
Technology: | Reverse Osmosis | Design: | Skid Mount |
---|---|---|---|
Permeate Flow/TPD: | 10~1000 | Recovery Rate: | 60~90% |
Feed TDS/ppm: | <2,000 | Water Temp.: | 5~35˚C |
Material: | SS304/SS316L,carbon Steel | Free Chlorine Mg/L: | 0 |
Silt Density Index: | <3 | Dissolved Iron Mg/L: | <0.1 |
Size: | Depends,1750*550*1650mm | Capacity: | 0.5-110m3/h |
Desalination Rate: | 98%, 99% | TSS/mg/L: | <5 |
Voltage: | 380V,415V,220V,can Be Customized | Application: | School, Restaurant, Offices |
PH: | 3~9 | Pump: | CNP / Grundfos,CNP |
Type: | Reverse Osmosis System | Function: | Water Purifying, Desalination |
High Light: | 1000l/h reverse osmosis water treatment system,oem reverse osmosis water treatment system,advanced reverse osmosis water treatment system |
Product Description

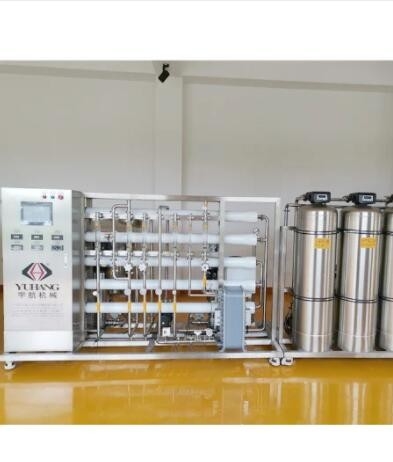

1000l/H Advanced Reverse Osmosis Water Treatment System Laboratory Type I Ii
Ultrapure Water EDI Ultrafiltration Reverse Osmosis System 1000L/H Laboratory Type I, II
2020 new type water treatment represents our latest technology as a leading manufacturer in the whole industry. This machine is specially designed for industrial pure water production, suitable for food, pure drinking water, cosmetic, daily necessicities, pharmaceutical and electronic industries. The machine incoperates various kinds of imported filters and American Dow reverse osmosis, which technically guarrantees the purity of the water and the life span of the machine.
-
To ensure the life span and the performance of the machine, the components we used are all from leading manufacturers around the word.
-
2020 New Reverse Osmosis Water Treatment Machine, whose filtering components have been fully strengthened, is capable of purifying water at a TDS of up to 1000 μs/cm and produce purified water at a TDS of lower than 1 μs/cm. ( TDS chart is included below)
-

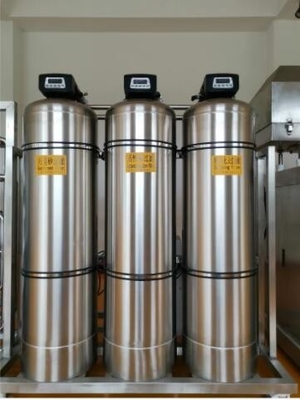

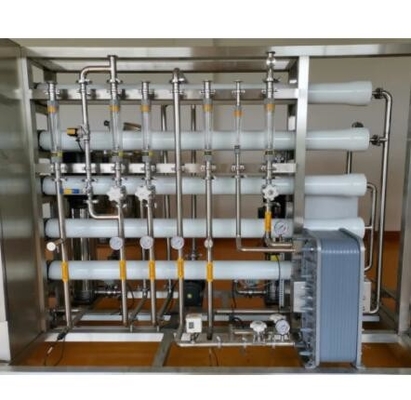

Highly automatic, the machine' s smart electronic system will periodically frush and clean the quartz sand filter, active carbon filter and softening filter( Quartz sand filter is used to remove big granule impurities. Active carbon filter is used to remove the unpleasent ordor and color. Softening filter is used to remove calcium and magnesium ions. ) and the reverse osmosis ( Reverse Osmosis is the key membrance to block any small molecules. We use American Dow Membrance to guarantee the durability and performance )
-

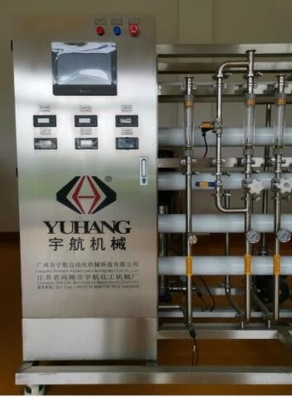

The machine can display the real time data of the water on the screen and gauges.
-
The water pressure control module can prevent the water pressure fluctuation from happening, which can protect the water treatment machine and largely prolong its life span.
-

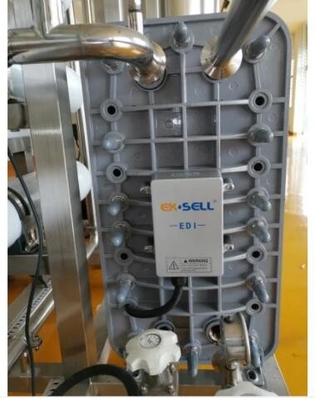

Cooperating with the optional modules like EDI module, dechlorination tank, PH adjustment tank, UV light, Ozone generator, 99.5% high removal rate will assure you of the most satisfactory purified water you want.
· Suitable for pure water and food industry, and the water source can be from borehole, spring and tap water etc,.
· Suitable for daily necessicities and cosmetic industry, such as all sorts of cream ,lotion, paint liquid chemical manufacturers. The water source can be borehole, spring, industrial and tap water etc,.
· Suitable for pharmaceutical industry. With sterile filtration, the purified water coming from this machine can be used to produce medicine. The water source can be borehole, spring and tap water etc,.
· Suitable for electronic industry. Super pure water contains no ions, which is totally non-conducting. The water source can be borehole, spring and tap water etc,.
There are several regular productivity choices for you to choose:
Small scale production: 250L/H, 500L/H, 1000L/H, 2000L/H,
Large scale production: 3000L/H, 6000L/H, 10000L/H, 30000L/H, 60000L/H
( The productivity can be customized according to your demand. It also can be 50L/H, 100L/H, etc, as you wish. Our quotation will come with a specific technical data sheet for your reference. )
Model | Productivity | Power | Recycle Rate | Water Supply TDS/PPM(μs/cm) |
Purified Water TDS/PPM(μs/cm) |
LRO-250 | 250L/H | 1.3KW | 50 | ≤1000 | <1 |
LRO-500 | 500L/H | 1.3KW | 50 | ≤1000 | <1 |
LRO-1000 | 1000L/H | 1.5KW | 65 | ≤1000 | <1 |
LRO-2000 | 2000L/H | 2.0KW | 65 | ≤1000 | <1 |
LRO-3000 | 3000L/H | 4.0KW | 75 | ≤1000 | <1 |
LRO-6000 | 6000L/H | 5.5KW | 75 | ≤1000 | <1 |
LRO-10000 | 10000L/H | 7.5KW | 75 | ≤1000 | <1 |
LRO-30000 | 30000L/H | 11KW | 75 | ≤1000 | <1 |
LRO-60000 | 60000L/H | 18.5KW | 75 | ≤1000 | <1 |
Total dissolved solids (TDS) comprise inorganic salts (principally calcium, magnesium, potassium, sodium, bicarbonates, chlorides, and sulfates) and some small amounts of organic matter that are dissolved in water.
TDS in water originate from natural sources, sewage, urban run-off, industrial wastewater, and chemicals used in the water treatment process, and the nature of the piping or hardware used to convey the water, i.e., the plumbing.
