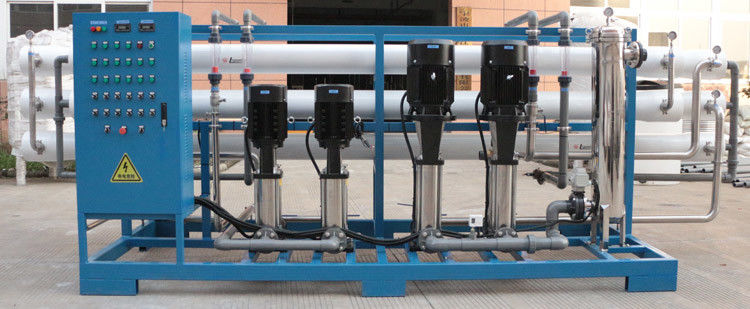

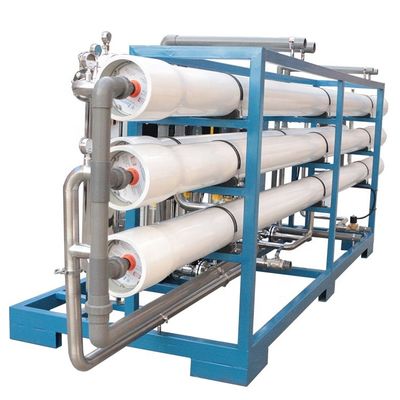

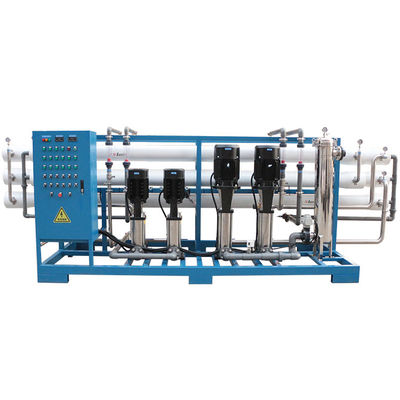

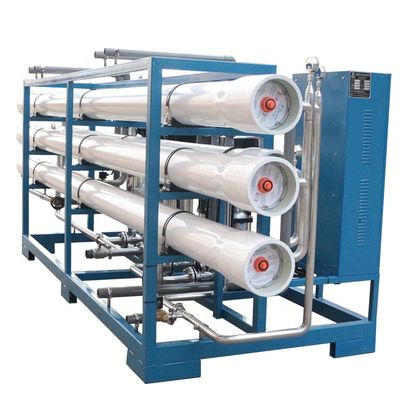

Double Pass 8TPH Industrial Reverse Osmosis Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal/OEM |
| Certification: | CE/NSF etc. |
| Model Number: | DPRO-8000L/H, 1-19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 15~30 days |
| Payment Terms: | T/T, Western Union, Paypal etc. |
| Supply Ability: | 50 set per month |
|
Detail Information |
|||
| Permeate Flow: | 8000L/h, 1600GPD | Design: | Skid Mount |
|---|---|---|---|
| Recovery Rate: | 60~65% | Feed TDS/ppm: | <2,000 |
| Water Temp.: | 5~35˚C | Material: | SS304/SS316L,carbon Steel |
| Voltage: | 380V,415V,220V,can Be Customized | Desalination Rate: | 99%,99.7% |
| Control: | Electronic,Manual/PLC | Ro Membrane: | Vontron, Hydranautics Or DOW,4040 |
| High Light: | 8TPH industrial reverse osmosis machine,NSF industrial reverse osmosis machine,1600GPD industrial water purification system |
||
Product Description
Double Pass 8TPH Industrial Reverse Osmosis Machine
Double pass 8T/H Industrial reverse osmosis water system prices of water purifying machines
Reverse Osmos is an equipment to purify the saltine water with the action of pressure difference of semi permeable membrane.
It is effective with asbestos, many taste, colour and odour producing chemicas, particulates, total dissolved solids, turbidity and radium.
RO system is widely used in water supply treatment, purification for tap water, seawater and brackish water, pure water and ultrapure drinking water production, power stations, electronic industries, and medical treatment. It is capable of removing 99% of total dissolved solids (TDS), 99% of organic, including pyrogens,and 99% of all bacteria in the feed water.
Features:
| 1). Automatic backwash and manual backwash |
| 2). Automatic switch on when low water level, and switch off when high water level |
| 3). Water shortage protection for multi-stage pump |
| 4). Protection when no voltage, under-voltage, over-current, short circuit and creepage |
| 5). Full stainless steel structure, durable and easy to clean. |
| 6). Integrating water flow indicator, conductivity indicator, pressure indicator, control panel |
| 7). China Top Brand or world famous brand electrical, switch and valve systems |
| 8). Core components of RO system are imported, USA Filmtec Dow membranes |
| 9). Run and produce water continuously, high degree automation |
Flow Chart
raw water - raw water tank - raw water pump - sand filter - carbon filter - softener (optional) - security filter-booster pump-reverse osmosis system-pure water tankn-water supply points
Applications
| 1.Textile, chemical industry, process water / chemical recycled water, chemical products manufacturing purification and preparation of water ; |
| 2.Food and beverage industrial water, purified drinking water, beverages, beer, liquor, health care products such as water purification and preparation of water; |
| 3.Seawater,brackish water desalination islands,ships,offshore drilling platforms,brackish water areas; |
| 4.Larger community, real estate property, schools, factories, hospitals, and the restaurants, hotels, beauty salons, canteens and other various types of enterprises and institutions; |
| 5.Integrated circuits, silicon wafers, display tubes and other electronic components of electronic industrial water rinse water; |
| 6.Can be used for filling water bottled water, mineral water and other preparation work. |
