50TPD Containerized Water Treatment Plant , Containerized Wastewater Treatment System
Product Details:
Place of Origin: | China |
Brand Name: | Fenigal/OEM |
Certification: | CE/UL/NSF etc. |
Model Number: | BWC100-2000 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 Set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
Delivery Time: | 15~30 days |
Payment Terms: | T/T, Western Union, Paypal etc. |
Supply Ability: | 50 set per month |
Detail Information |
|||
Technology: | Reverse Osmosis | Design: | Skid Mount Containerized |
---|---|---|---|
Permeate Flow/TPD: | 10~50 | Permeate Flow/GPD: | 2,632~13,158 |
Recovery Rate: | 40~70% | Feed TDS/ppm: | <5,000 |
Water Temp.: | 5~35˚C | PH: | 4~9 |
TSS/mg/L: | <5 | Silt Density Index: | <3 |
Free Chlorine Mg/L: | 0 | Dissolved Iron Mg/L: | <0.1 |
Warranty: | 1 Year | Material: | SS304/SS316L,carbon Steel |
Capacity: | 0.5-100m3/h | Voltage: | 380V,415V,220V,can Be Customized |
Application: | Water Purification,Filtration,pharmceutical,drinking Water,food | Size: | Depends,1750*550*1650mm |
Type: | Reverse Osmosis System | Function: | Water Purifying, Desalination |
Desalination Rate: | 99%,99.7% | Control: | Electronic,Manual/PLC |
Ro Membrane: | Hydranautics Or DOW,4040 | Pump: | CNP / Grundfos,CNP |
High Light: | CE Containerized Water Treatment Plant,OEM Containerized Water Treatment Plant,50TPD containerized wastewater treatment system |
Product Description

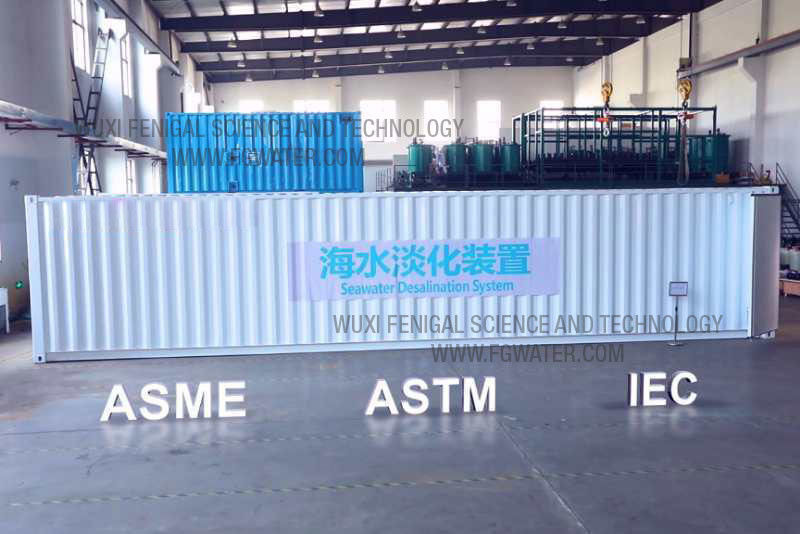

50TPD Containerized Water Treatment Plant , Containerized Wastewater Treatment System
Containerized RO/UF water treatment plant 50TPD~1000TPD
What is containerized water treatment plant? Containerized water treatment systems have a number of key advantages over built-in plant space installations:
- Short installation process
- Compact foot prints
- Simple transportation
- Mobile which is convenient for construction locations
Where are containerized water treatment systems used?
- Whether your application is drinking, process, or waste water. An onsite containerized water or wastewater treatment system is more practical and cost effective instead of buying treated water or discharging the wastewater to water treatment facilities to remove harmful contaminants from the water. Here are some industries that employ the most use of containerized water treatment systems:
- Public Delivery
- Mining
- Military
- Agriculture
- Disaster Relief
- Swimming Pools
- Power & Energy
- Wastewater
What is mobile water treatment plant?
Mobile water treatment and purification plants are designed to cover emergency, temporary solutions such as construction sites or long-term water treatment requirements. These mobile systems are installed inside a seaworthy 20 or 40 ft containers or in combination to form complete systems with advanced water treatment and purification technologies. Those mobile treatment containers units come with insulation, diamond flooring, LED lighting, climate control and service hatches. Our mobile or containerized solutions use brackish or seawater reverse osmosis, ion exchange, ultrafiltration systems, multimedia filtration, and MBR technologies, delivered through ocean or inland by trailers.
Benefits of Mobile Water Treatment Systems
An advantageous aspect of containerized solutions is its function as a mobile water treatment system for different sites once a task is completed. These systems are made to be flexible and durable for use in any setting, and come equipped with many options. Some of the aspects that our mobile water treatment systems are designed to address include:
- Treating water from any source
- Seasonal changes in water
- Quick delivery
- Changes in quality of processed water
- Temporary use until a stable system is in use
Containerized Water Treatment Plant Range
Brackish water model
1. | BW-C - 100 | 20 Feet container | up to 40,000 GPD | 10,000 TDS |
2. | BW-C - 200 | 40 Feet container | up to 150,000 GPD | 10,000 TDS |
3. | BW-C - 200-2 | 2 x 40 Feet container | up to 300,000 GPD | 10,000 TDS |
- Capacity is calculated based on maximum salinity level.
- High capacity can be achieved with low salinity of feed water.
- For technical details, please refer to brackish water standard series.
Sea water model
1. | SW-C - 100 | 20 Feet container | up to 25,000 GPD | 45,000 TDS |
2. | SW-C - 200 | 40 Feet container | up to 132,000 GPD | 45,000 TDS |
3. | SW-C - 200-2 | 2 x 40 Feet container | up to 300,000 GPD | 45,000 TDS |
- Capacity is calculated based on maximum salinity level.
- High capacity can be achieved with low salinity of feed water.
- For technical details, please refer to brackish water standard series.
Media Filtration System
1. | MF-C - 100 | 20 Feet container | up to 18 M3/Hour |
2. | MF-C - 200 | 40 Feet container | up to 100 M3/Hour |
3. | MF-C - 200-2 | 2 x 40 Feet container | up to 200 M3/Hour |
- Filtration rate is with 10 M/hour as applicable for sea water filtration
- Surface water filtration rate can be as 20M/hour in all such cases, filtration rate will be double.
- Filtration equipment system details please refer to media filtration series of celar water catalogue.
Ultra Filtration System
1. | UF-C - 100 | 20 Feet container | up to 48 M3/Hour |
2. | UF-C - 200 | 40 Feet container | up to 150 M3/Hour |
3. | UF-C - 200- | 2 x 40 Feet container | up to 350 M3/Hour |
- Average flow is calculated based on flux rate of 75LMH
- Corresponding flow rate can be calculated based on flux selected for design purpose.
- For technical details please refer to the technical catalogue of ultra-filtration system
