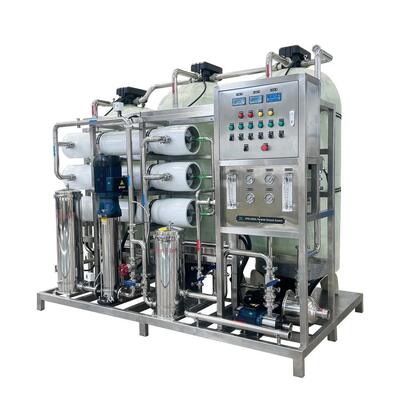

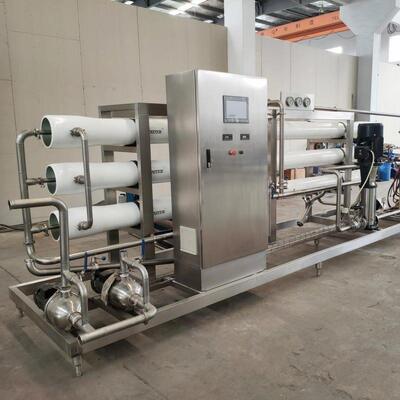

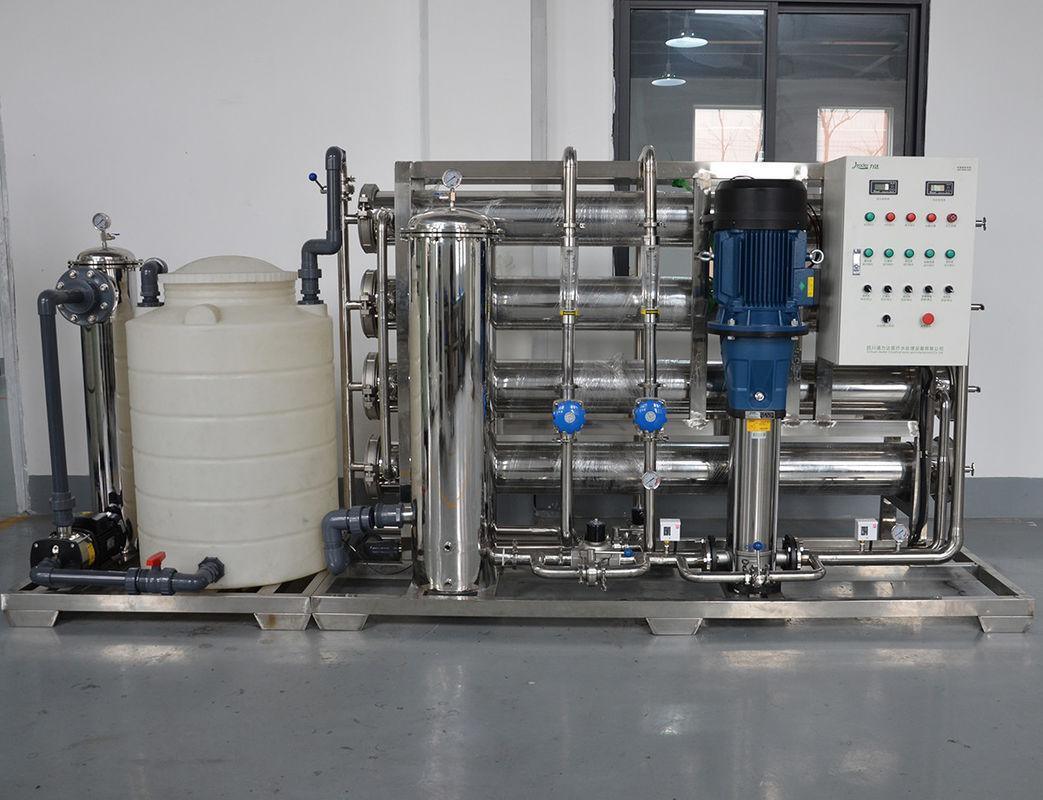

3TPH Capacity BWRO Water Treatment Plant with SS304 Stainless Steel Tanks and 5.5kW Power
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | ISO 9001 |
| Model Number: | Brackish Water Reverse Osmosis Water Plant |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 30-40 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 20 Units per Month |
|
Detail Information |
|||
| Capacity: | 3TPH | The Number And Material Of Tanks: | 2xSS304 Tanks |
|---|---|---|---|
| Process Of The Plant: | SF-ACF-RO | Installed Power Of The Equipment: | 5.5kW-380-415V, 50Hz |
| Feed Water TDS Of The Device: | <2000 Ppm | Material Of The Device: | Stainless Steel 304 Tank, UPVC Pipe |
| RO Membrane: | Filmtec/Hydranautics | Weight(KG): | 340 |
| Product Size(LxWxH): | 260*80*170cm | Components: | Pump, RO Membrane,Tanks |
| Highlight: | 3TPH Capacity BWRO Water Treatment Plant,SS304 Stainless Steel Tanks BWRO Water Treatment Plant,5.5kW Power Industrial RO Purification System |
||
Product Description
The 3TPH Brackish Water Reverse Osmosis (BWRO) Water Plant is an advanced water purification system designed for industrial and commercial applications requiring high-quality purified water. Equipped with SS304 pretreatment tanks and a high-performance RO membrane system, it provides stable and efficient water treatment performance for various water sources.
Reverse Osmosis technology uses pressure-driven separation through a semi-permeable membrane to remove dissolved salts, suspended solids, organic matter, microorganisms, bacteria, heavy metals, and other impurities from brackish water. The system allows clean water molecules to pass through the membrane while concentrating and removing unwanted contaminants through the wastewater stream.
This BWRO system is widely used in drinking water production, food and beverage processing, pharmaceutical manufacturing, electronic industries, chemical industries, power plants, laboratories, and industrial water supply projects.
The RO membrane filtration process effectively reduces total dissolved solids (TDS) and removes harmful substances from feed water, producing high-quality purified water with stable performance.
The system adopts SS304 stainless steel skid mounting and pretreatment tanks, providing excellent corrosion resistance, durability, and long-term reliable operation in industrial environments.
The pretreatment system can include multimedia filtration, activated carbon filtration, and ion exchange filtration according to raw water conditions. This helps protect RO membranes from contamination and extends membrane service life.
The system is equipped with flow meters, pressure gauges, low and high-pressure switches, operating status indicators, IC control unit, and TDS monitoring system for convenient operation and maintenance.
FG Water Technologies provides customized RO systems according to different raw water quality, capacity requirements, installation conditions, and industry applications.
Raw Water → Pretreatment System → Sediment Filtration → Activated Carbon Filtration → Ion Exchange Filtration (Optional) → Reverse Osmosis Membrane Filtration → Purified Water Output
During operation, the feed water is pressurized and passed through the RO membrane. Water molecules penetrate through the semi-permeable membrane to form purified permeate water, while dissolved solids and impurities are separated and discharged as concentrated wastewater.
- Drinking water purification systems
- Food and beverage production
- Pharmaceutical water treatment
- Chemical industry water supply
- Electronic industry pure water production
- Power plant water treatment
- Laboratory purification systems
- Industrial process water treatment
- Municipal water purification projects
- Product Type: Brackish Water Reverse Osmosis Water Treatment Plant
- Capacity Range: 250L/H to 10TPH
- Frame: SS304 skid-mounted structure
- Power Supply: 380-415V, 50Hz (customized voltage available)
- RO Membrane: 4 inch or 8 inch membrane elements
- Feed Water TDS: ≤2000ppm
- Piping: uPVC water pipes
- Control System: IC automatic control system with TDS indicator
- Protection: Low pressure switch and high pressure switch
- Optional Components: FilmTec / Hydranautics RO membranes
| Capacity | RO Membrane | Installed Power | Pretreatment Configuration | Dimension (L*W*H) | Weight |
|---|---|---|---|---|---|
| 250L/H | 4"x1 | 1.7kW | Sediment Filter + RO | 60*50*145cm | 50kg |
| 500L/H | 4"x2 | 1.7kW | Sediment Filter + RO | 60*50*145cm | 55kg |
| 1TPH | 4"x4 | 2.1kW | FRP / SS304 Tanks | 160*78*170cm | 230-250kg |
| 1.5TPH | 8"x2 | 3.0kW | FRP / SS304 Tanks | 160*85*170cm | 235-255kg |
| 2TPH | 8"x2 | 3.0kW | FRP / SS304 Tanks | 260*80*170cm | 280-320kg |
| 3TPH | 8"x3 | 5.5kW | FRP / SS304 Tanks | 260*80*170cm | 320-360kg |
| 4TPH | 8"x4 | 5.5kW | FRP / SS304 Tanks | 280*85*170cm | 360-400kg |
| 5TPH | 8"x5 | 7.4kW | FRP / SS304 Tanks | 160*85*170cm | 380-430kg |
| 6TPH | 8"x6 | 7.9kW | FRP / SS304 Tanks | 280*85*170cm | 400-450kg |
| 8TPH | 8"x8 | 14kW | FRP / SS304 Tanks | 280*85*180cm | 450-540kg |
| 10TPH | 8"x10 | 19kW | FRP / SS304 Tanks | 280*85*190cm | 500-760kg |
