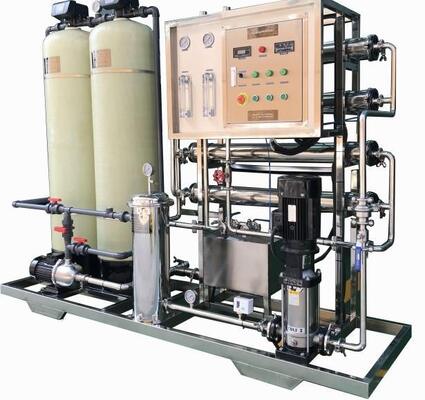

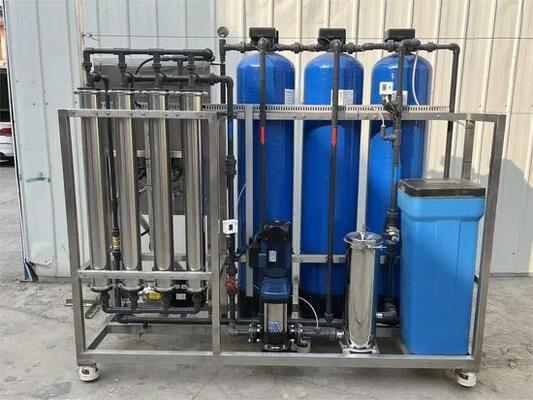

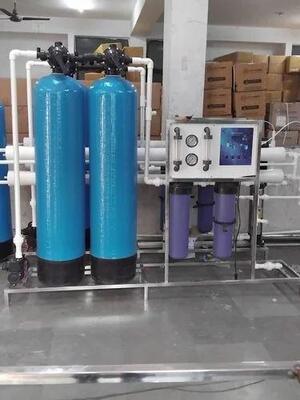

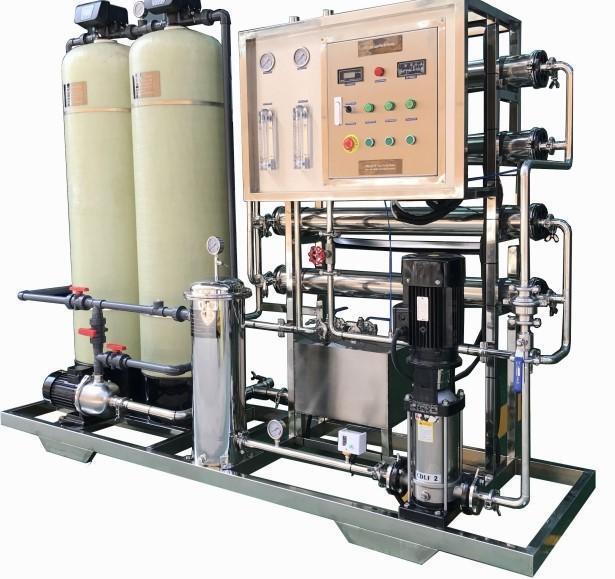

1 m³/h Compact BWRO Water Treatment Plant – 2.1 kW Low-Energy Brackish Water Reverse Osmosis System with FRP Pretreatment Tanks
Product Details:
| Place of Origin: | China |
| Brand Name: | Fenigal |
| Certification: | ISO 9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 Set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard Export Wood Crate/Carton or Naked wrapped by film |
| Delivery Time: | 7 work days |
| Payment Terms: | T/T,Western Union,Paypal etc. |
| Supply Ability: | 20 Units per Month |
|
Detail Information |
|||
| Productivity Of The Equipment: | 1TPH | Numbers And Material Of Tanks: | 3x FRP Tanks |
|---|---|---|---|
| Main Process: | SF-ACF-IXF-RO | Installation Power: | 2.1kW-380-415V, 50Hz |
| Required Water Supply TDS: | <2000 Ppm | Main Material Material Of Pipe: | UPVC Water Pipes |
| Membrane Optional: | Filmtec/Hydranautics | Plant Weight: | 250 |
| Size(LxWxH): | 160*78*170cm | ||
| Highlight: | 1 m³/h Capacity BWRO Water Treatment Plant,2.1 kW Low-Energy Brackish Water Reverse Osmosis System,FRP Pretreatment Tanks Compact RO System |
||
Product Description
The 1 m³/h Compact BWRO Water Treatment Plant is a reliable and energy-efficient reverse osmosis solution designed for small-scale industrial and commercial brackish water purification applications.
With a production capacity of 1,000 liters per hour, this compact RO system integrates pretreatment, high-pressure pumping, membrane filtration, and automatic control into a complete treatment package. The system is equipped with three FRP filter vessels for effective removal of suspended solids, turbidity, and impurities before the RO stage, helping to protect membranes and extend operational life.
Operating with a low power consumption of only 2.1 kW, the system provides an economical solution for facilities requiring stable purified water production with limited installation space.
- Complete skid-mounted RO treatment package
- Small footprint for easy installation
- Factory assembled and tested before delivery
- Rated power consumption: 2.1 kW
- Optimized hydraulic design for reduced operating costs
- Three FRP pressure vessels included
- Effective filtration before RO membrane treatment
- Reduces fouling and improves membrane durability
- High rejection of dissolved salts
- Continuous purified water production
- Suitable for different brackish water sources
- Factory process water
- Equipment cleaning water
- Production line water supply
- Hotels and restaurants
- Small communities
- Building water purification systems
- Rural water supply
- Island facilities
- Construction sites
- Emergency water treatment
| Parameter | Specification |
|---|---|
| System Type | Brackish Water Reverse Osmosis Plant |
| Rated Capacity | 1 m³/h |
| Product Flow | 1000 L/h |
| Power Supply | 380-415V / 3 Phase |
| Rated Power | 2.1 kW |
| Pretreatment Configuration | 3 * FRP Filter Tanks |
| RO Process | Multi-stage Reverse Osmosis |
| Installation Type | Skid Mounted |
| Operation Mode | Automatic Control |
| Application Water Source | Brackish Water |
Includes:
- FRP multimedia filtration tank
- Activated carbon filtration tank
- Cartridge filtration unit
Functions:
- Removal of suspended solids
- Reduction of organic contaminants
- Protection of RO membranes
Features:
- High-pressure RO pump
- Industrial RO membrane elements
- Pressure monitoring instruments
- Flow control components
The RO unit effectively removes dissolved salts, minerals, and impurities to produce high-quality purified water.
- Low energy consumption design
- Compact structure for limited installation areas
- Easy operation and maintenance
- Automatic protection functions
- Long membrane service life
- Suitable for continuous industrial operation
The 1 m³/h Compact BWRO Water Treatment Plant provides an efficient solution for users requiring reliable brackish water purification without complex installation requirements.
Combining efficient RO technology, durable FRP pretreatment equipment, and low-power operation, this system is ideal for small industrial facilities, commercial water treatment projects, and decentralized water purification applications.
