DuPont UF SFP-2880 PVDF Membrane 8 Inch 77m² for Industrial Water
Product Details:
| Place of Origin: | China |
| Brand Name: | Dupont |
| Certification: | CE |
| Model Number: | SFP-2880 |
| Document: | UF-IntegraTec-P-Series-PVDF...en.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard export packing |
| Delivery Time: | 5- 8 work days |
| Payment Terms: | ,T/T |
| Supply Ability: | 60000 Units per Month |
|
Detail Information |
|||
| Flow Range Of This Model: | 3.1 – 9.3 M3 /hr | Membrane Area Of This Model: | 77 M² |
|---|---|---|---|
| Nominal Pore Diameter Of This Model: | 0.03 µm | Core Material Of This Model: | PVDF |
| Filtrate Flux Of This Model: | 40-120 | Diameter Of This Model: | 8 Inch |
| Product Flow Direction Settings: | External Pressure Structure, Dead End Filtration | Product Max. Operating TMP: | 2.1 Bar |
| Product Max. Inlet Module Pressure: | 6.25 Bar | Membrane Operating PH: | 2-11 |
| Flow Configuration: | Outside In, Dead End Flow | Core Certifications Of This Module: | ISO 9001, NSF, CE |
| Advantage Of This Module: | Very High Porosity,Large Flux | Usage Of This Module: | Industrial Process Water |
| Highlight: | DuPont UF PVDF membrane 8 inch,industrial water UF membrane 77m²,DOW UF membrane with PVDF |
||
Product Description
DuPont™ UF SFP-2880 High-Efficiency Filtration for Critical Water Applications
Product Overview

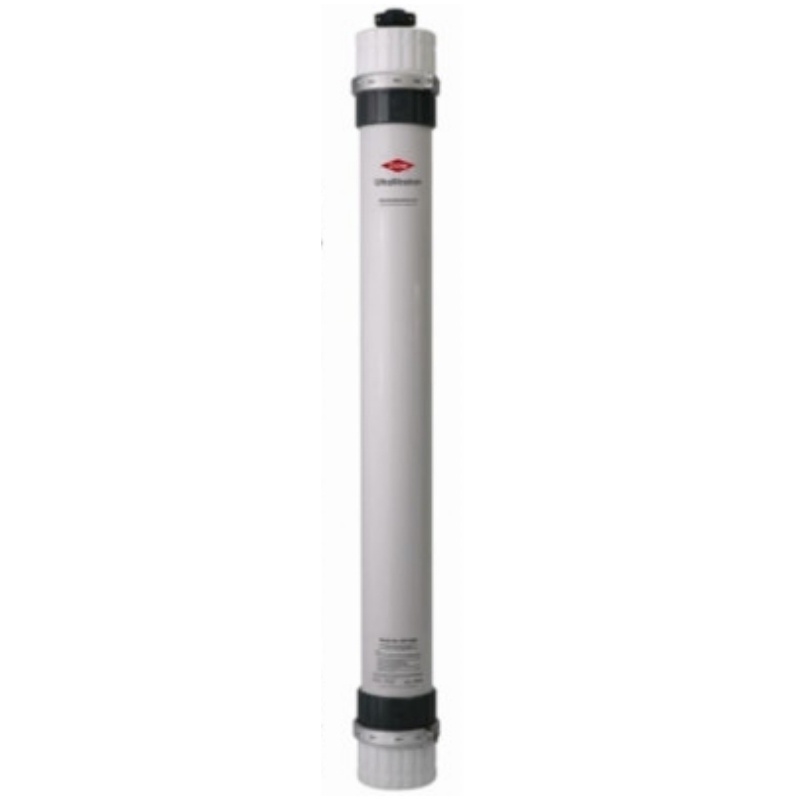

The DuPont™ UF SFP-2880 is an ultrafiltration membrane element utilizing a PVDF (polyvinylidene fluoride) hollow fiber structure. Designed for high-turbidity and highly contaminated water, it is suitable for demanding applications such as municipal wastewater reuse, industrial wastewater treatment, and food and beverage filtration. Leveraging DuPont's patented membrane technology, this product achieves industry-leading performance in terms of flux, fouling resistance, and service life.
Key Specifications
| Attribute | Value |
|---|---|
| Flow Range | 3.1 – 9.3 m³/hr |
| Membrane Area | 77 m² |
| Nominal Pore Diameter | 0.03 µm |
| Core Material | PVDF |
| Filtrate Flux | 40-120 |
| Diameter | 8 inch |
| Flow Direction | External pressure structure, dead end filtration |
| Max. Operating TMP | 2.1 bar |
| Max. Inlet Module Pressure | 6.25 bar |
| Operating pH Range | 2-11 |
| Certifications | ISO 9001, NSF, CE |
Typical Applications
- Brackish water desalination (groundwater, wells)
- Industrial process water (food & beverage, pharmaceuticals)
- Wastewater recovery & reuse (mining, textiles, electronics)
- Pre-treatment for ultrapure water (power plants, semiconductors)
Performance Advantages
30% lower energy consumption than comparable UF modules
3-5 year typical membrane lifespan with proper maintenance
Automated cleaning cycles maintain stable operation
NSF/ANSI 61 certified for drinking water applications
Product Specifications
| Model | Type | Part # | Membrane Area (m²) | Weight (kg) |
|---|---|---|---|---|
| SFP-2880 | Pretreatment | 280934 | 77 | 61/100 |
| SFD-2880 | NSF/ANSI 61 Drinking water | 324169 | 77 | 61/100 |
Operating Parameters
| Parameter | SI Units | US Units |
|---|---|---|
| Filtrate Flux @ 25ºC | 40-120 l/m²/hr | 24-70 gfd |
| Temperature Range | 1-40ºC | 34-104ºF |
| Max. Inlet Module Pressure | 6.25 bar | 93.75 psi |
| Max Operating Air Scour Flow | 12 nm³/hr | 7.1 scfm |
| Operating pH | 2-11 | |
Installation & Operation
Proper startup procedure is critical to prevent membrane damage and maintain system parameters within design specifications. Before startup:
- Complete membrane preconditioning and module installation
- Calibrate all instrumentation
- Flush the system thoroughly to eliminate shipping solution
- Purge residual air from the system
Note: Operating limits and guidelines must be strictly followed to maintain warranty coverage. Refer to the product technical manual for detailed instructions.
Application Cases
For detailed application cases, please visit: www.fgwater.com/Industries/
